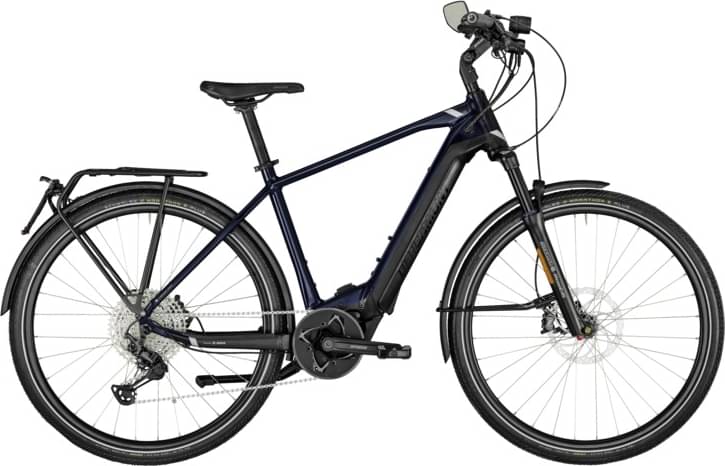

Bergamont E-Horizon Elite Speed Gent 2021
2021 E-bike
Weight | 25.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork SunTour MOBIE
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line Speed, Gen. 4, 250 W, 36 V, max. 45 km/h Display: Bosch Kiox Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour Mobie 45 Air, RLR DS, 80 mm, 15x100 mm axle
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8100, Shadow Plus
Shift Levers
Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M6100, 10-51t
Crank
FSA CK-320, 42t
Bottom Bracket
Bosch, Isis
Chain
KMC e12S
Pedals
Syncros Trekking alloy
Wheels
Front Hub
Shimano HB-MT400, centerlock, disc, 15x100 mm axle
Rear Hub
Shimano FH-MT401, centerlock, disc, quick release
Rims
Ryde Rival 23, disc, eyelets
Spokes
Sapim Leader
Tires
Schwalbe Marathon E-Plus, Smart Dual Guard, reflective stripe, 47-622 Tubes: Schwalbe SV19B Light
Brakes
Brakes
Magura MT5e (front) /Magura MT4e (rear), hydraulic disc brake, Storm HC rotor: 203/180 mm
Brake Levers
Magura MT5e (front) Magura MT4e (rear), hydraulic disc brake
Cockpit
Stem
BGM E-Bike, adjustable, for Kiox integration
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
Ergon GP10
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Ergon ST10
Seatpost
BGM Pro
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line Speed, Gen. 4, 250 W, 36 V, max. 45 km/h Display: Bosch Kiox Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line Speed, Gen. 4, 250 W, 36 V, max. 45 km/h Display: Bosch Kiox Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.54 mm | 1.59 mm | 1.63 mm |
| Front Center | 659 mm | 664 mm | 669 mm | 673 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 71 mm | 69 mm | 67 mm |
| Stack | 610 mm | 631 mm | 649 mm | 671 mm |
| Reach | 408 mm | 411 mm | 409 mm | 412 mm |
| Top Tube Length | 599 mm | 609 mm | 619 mm | 629 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 455 mm | 495 mm | 535 mm | 575 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1129 mm | 1134 mm | 1139 mm | 1143 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 782 mm | 814 mm | 846 mm | 878 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Horizon Elite Speed Gent is part of the Bergamont E E Horizon model. 133 e-bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Commuter e-bikes average weight
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 25.5 kg (56.22 lbs), Bergamont e-bike is slightly heavier than average. To sum up, it’s 1.19% heavier than the average weight of Commuter e-bikes.
Overview of components
Fork
This e-bike has the SunTour MOBIE fork installed. The fork’s travel is 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the E-Horizon Elite Speed Gent e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Horizon Elite Speed Gent has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
