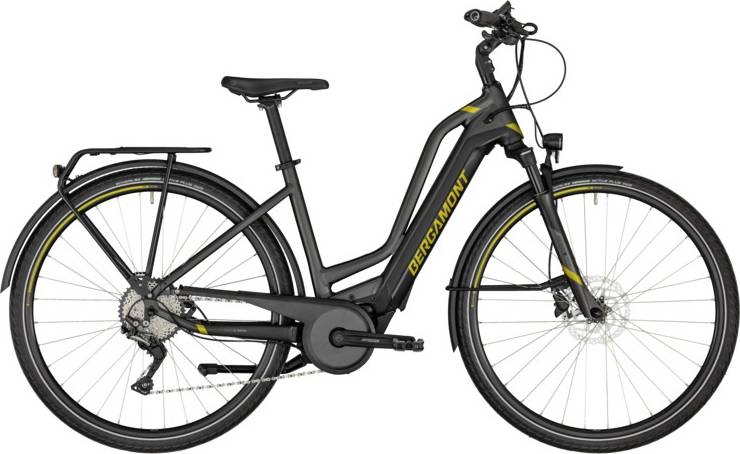

Bergamont E-Horizon Expert 600 Amsterdam 2020
2020 E-bike
Weight | 24.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset SLX, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Intuvia Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h) -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour NCX E Air, 63 mm, lockout
Drivetrain
Rear Derailleur
Shimano SLX, RD-M7000, Shadow Plus
Shift Levers
Shimano SLX, SL-M7000, 1x11-speed, rapidfire plus-shifter
Cassette
Shimano SLX, CS-M7000, 11-42t
Crank
FSA CK-320, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e11S
Pedals
Trekking alloy
Wheels
Front Hub
Shimano HB-M4050, centerlock, disc, quick release
Rear Hub
Shimano FH-M4050, centerlock, disc, quick release
Rims
Mach 1 ER20, disc, eyelets
Spokes
Sapim Leader
Tires
Schwalbe Energizer Active Plus, reflective stripe, 47-622 Tubes: Schwalbe AV17A Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Pro, adjustable, 17°-25°
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
Ergon GP10
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Ergon ST10
Seatpost
BGM Pro
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Intuvia Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Intuvia Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.65 mm | 1.68 mm |
| Front Center | 650 | 655 mm | 660 mm | 670 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 22 mm | 74 mm | 74 mm | 74 mm |
| Stack | 604 mm | 623 mm | 641 mm | 660 mm |
| Reach | 393 mm | 391 mm | 389 mm | 393 mm |
| Top Tube Length | 578 mm | 588 mm | 598 mm | 608 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 73 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1114 mm | 1119 mm | 1124 mm | 1134 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 517 mm | 516 mm | 515 mm | 518 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
E-Horizon Expert 600 Amsterdam belongs to the Bergamont E E Horizon model. Bergamont launched 133 e-bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, E-Horizon Expert 600 Amsterdam has a weight of 24.5 kg (54.01 lbs). In conclusion, the average Commuter e-bike weighs 2.86% more than E-Horizon Expert 600 Amsterdam.
E-Horizon Expert 600 Amsterdam components
Fork
The SunTour NCX is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the E-Horizon Expert 600 Amsterdam model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Bergamont E-Horizon Expert 600 Amsterdam has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
