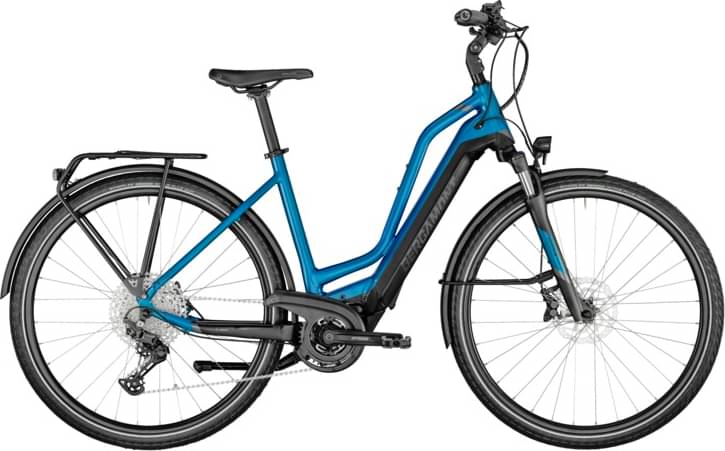

Bergamont E-Horizon Expert Amsterdam blue 2021
2021 E-bike
Weight | 25.3 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Intuvia Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour NEX E25, 63 mm
Drivetrain
Rear Derailleur
Shimano Deore, RD-M6100, Shadow Plus
Shift Levers
Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M6100, 10-51t
Crank
FSA CK-320, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e12S
Pedals
Trekking alloy
Wheels
Front Hub
Shimano HB-MT400, centerlock, disc, 15x100 mm axle
Rear Hub
Shimano FH-MT401, centerlock, disc, quick release
Rims
Ryde Rival 23, disc, eyelets
Spokes
Sapim Leader
Tires
Schwalbe Energizer Active Plus, reflective stripe, 47-622 Tubes: Schwalbe SV19B Light
Brakes
Brakes
Shimano BR-MT420, hydraulic disc brake, 4-piston, SM-RT10 rotor: 180/160 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Pro, adjustable, 17°-25°
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Ergon ST10
Seatpost
BGM Pro
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Intuvia Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Intuvia Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.59 mm | 1.65 mm | 1.68 mm |
| Front Center | 650 | 655 mm | 660 mm | 670 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 74 mm | 74 mm | 74 mm |
| Stack | 603 mm | 623 mm | 641 mm | 660 mm |
| Reach | 393 mm | 391 mm | 389 mm | 393 mm |
| Top Tube Length | 578 mm | 588 mm | 598 mm | 608 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1114 mm | 1119 mm | 1124 mm | 1134 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 517 mm | 516 mm | 515 mm | 518 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Horizon Expert Amsterdam blue completes the Bergamont E E Horizon model. Bergamont launched 133 e-bikes of this model so far. You can easily view all of the Bergamont E E Horizon e-bikes models from 2021, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Commuter e-bikes average weight
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
E-Horizon Expert Amsterdam blue weighs 25.3 kg (55.78 lbs) and is slightly heavier than the average. In short, the average Commuter e-bike weight is 0.4% lower than this one.
E-Horizon Expert Amsterdam blue components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The E-Horizon Expert Amsterdam blue 2021 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Horizon Expert Amsterdam blue comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
