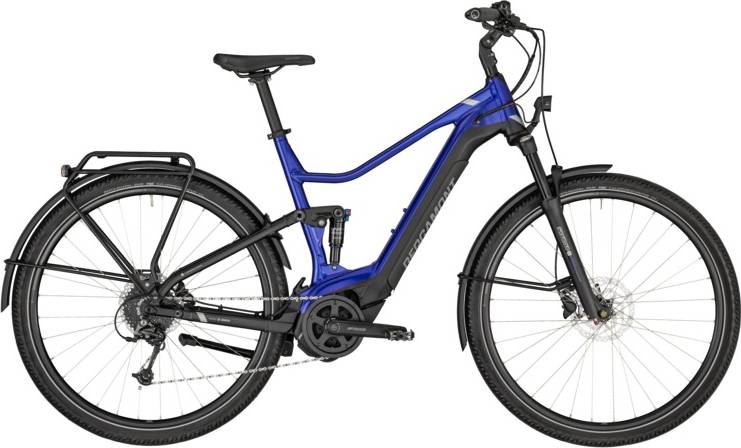

Bergamont E-Horizon FS Edition 2020
2020 E-bike
Weight | 26.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Travel Rear 80mm -
Fork SunTour MOBIE
-
Groupset Deore, Alivio -
Suspension Full -
Motor Bosch 250W 63Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h) -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, PowerTube battery, 80 mm rear travel
Suspension Fork
Suntour Mobie 25 Air, RLR DS, 100 mm, 15x100 mm axle
Rear Shock
Suntour UNAir R8, 80 mm, lockout
Drivetrain
Rear Derailleur
Shimano Deore, RD-M591
Shift Levers
Shimano SL-M4000, 1x9-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG200-9, 11-36t
Crank
FSA CK-320, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e9S
Pedals
Trekking alloy
Wheels
Front Hub
BGM Pro, centerlock, disc, 15x100 mm axle
Rear Hub
BGM Pro, centerlock, disc, 12x148 mm axle
Rims
Mach 1 ER20, disc, eyelets
Spokes
Sapim Leader
Tires
Schwalbe Hurricane, Addix, reflective stripe, 57-622 Tubes: Schwalbe AV17A Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/180 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Pro, adjustable, 17°-25°
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
Ergon GP10
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Ergon ST10
Seatpost
BGM Pro
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.49 mm | 1.49 mm | 1.49 mm |
| Front Center | 678 mm | 693 mm | 709 mm | 725 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 84 mm | 85 mm | 84 mm | 82 mm |
| Stack | 614 mm | 628 mm | 642 mm | 656 mm |
| Reach | 410 mm | 421 mm | 431 mm | 441 mm |
| Top Tube Length | 584 mm | 599 mm | 614 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 445 mm | 480 mm | 525 mm | 555 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1148 mm | 1163 mm | 1179 mm | 1195 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 730 mm | 731 mm | 749 mm | 775 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Horizon FS Edition is part of the Bergamont E E Horizon model. Bergamont launched 133 e-bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, E-Horizon FS Edition has a weight of 26.5 kg (58.42 lbs). In short, the average Commuter e-bike weight is 5.16% lower than this one.
E-Horizon FS Edition components
Fork
The fork installed on this bike is the SunTour MOBIE model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the Suntour UNAir R8 model, with a travel of 80mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the E-Horizon FS Edition model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Horizon FS Edition comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
