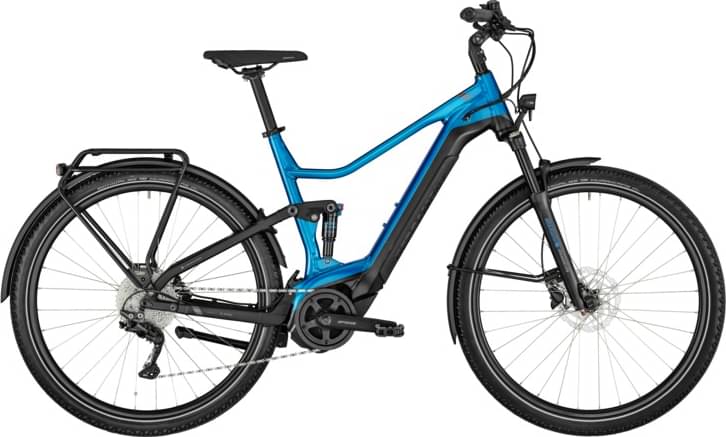

Bergamont E-Horizon FS Edition 2021
2021 E-bike
Weight | 26.4 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Travel Rear 80mm -
Fork SunTour MOBIE
-
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 63Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h) -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, PowerTube battery, 80 mm rear travel
Suspension Fork
Suntour Mobie 25 Air, RLR DS, 100 mm, 15x100 mm axle
Rear Shock
Suntour UNAir R8, 80 mm, lockout
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120, Shadow
Shift Levers
Shimano Deore, SL-M4100, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M4100, 11-42t
Crank
FSA CK-200, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e10S
Pedals
Trekking alloy
Wheels
Front Hub
BGM Pro, centerlock, disc, 15x100 mm axle
Rear Hub
BGM Pro, centerlock, disc, 12x148 mm axle
Rims
Ryde Rival 23, disc, eyelets
Spokes
Sapim Leader
Tires
Schwalbe Hurricane, Addix, reflective stripe, 57-622 Tubes: Schwalbe SV19B Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/180 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Pro, adjustable, 17°-25°
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Selle Royal Essenza Plus, gent
Seatpost
BGM Pro
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.49 mm | 1.49 mm | 1.49 mm |
| Front Center | 678 mm | 694 mm | 709 mm | 724 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 614 mm | 628 mm | 642 mm | 656 mm |
| Reach | 410 mm | 421 mm | 431 mm | 441 mm |
| Top Tube Length | 584 mm | 599 mm | 614 mm | 631 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 445 mm | 480 mm | 525 mm | 555 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1148 mm | 1164 mm | 1179 mm | 1194 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 730 mm | 730 mm | 749 mm | 775 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Horizon FS Edition is a Bergamont E E Horizon model. Bergamont launched 133 e-bikes of this model so far. Take a sneak peek at all Bergamont E E Horizon e-bikes models from 2021, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 26.4 kg (58.2 lbs), the E-Horizon FS Edition model is slightly heavier than average. In other words, this model is 4.76% heavier than the average Commuter e-bike.
Overview of components
Fork
The fork installed on this bike is the SunTour MOBIE model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The E-Horizon FS Edition has a rear shock with a travel of 80mm. The model Suntour UNAir R8 is the one installed in this e-bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Bergamont E-Horizon FS Edition 2021, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Horizon FS Edition has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
