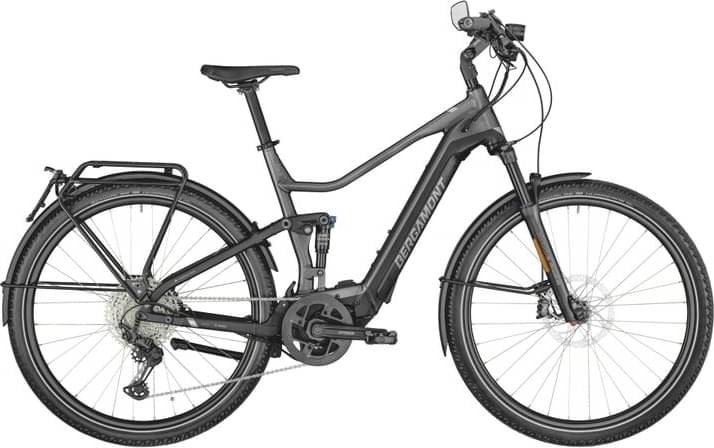

Bergamont E-Horizon FS Elite Speed 2022
2022 E-bike
Estimate price |
6,422$
Weight | 26.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 100mm -
Travel Rear 80mm -
Fork Suntour MOBIE
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, PowerTube battery, 80 mm rear travel
Suspension Fork
Suntour Mobie 45 Air, RLR DS, 100 mm, 15x100 mm axle
Rear Shock
Suntour UNAir R8, 80 mm, lockout
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8100, Shadow Plus
Shift Levers
Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M6100, 10-51t
Crank
FSA CK-320, 42t
Bottom Bracket
Bosch, Isis
Chain
KMC e12S
Pedals
Syncros Trekking alloy
Wheels
Front Hub
Shimano HB-MT400, centerlock, disc, 15x100 mm axle
Rear Hub
Shimano FH-MT410-B, centerlock, disc, 12x148 mm axle
Rims
Ryde Rival 23 disc, eyelets
Spokes
Sapim Leader
Tires
Schwalbe Hurricane, Addix, reflective stripe, 57-622 Tube: Schwalbe AV19
Brakes
Brakes
Magura MT5e (front) / Magura MT4e (rear), hydraulic disc brake
Brake Levers
Magura MT, 3-fingers, ball-end, with brakelight switch
Disk Rotors
Magura Storm CL, 203 mm / Magura Storm CL, 180 mm
Cockpit
Stem
BGM E-Bike, adjustable, for Kiox integration
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
Ergon GP10
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Capilano Trekking, gel
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Performance Line Speed, Gen. 4, 250 W, 36 V, max. 45 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Remote
Bosch Kiox
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.49 mm | 1.49 mm | 1.49 mm |
| Front Center | 678 mm | 694 mm | 709 mm | 724 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 614 mm | 628 mm | 642 mm | 656 mm |
| Reach | 410 mm | 421 mm | 431 mm | 441 mm |
| Top Tube Length | 584 mm | 599 mm | 614 mm | 629 mm |
| Seat Tube Length | 445 mm | 480 mm | 525 mm | 555 mm |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1148 mm | 1164 mm | 1179 mm | 1194 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 730 mm | 730 mm | 749 mm | 775 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Horizon FS Elite Speed completes the Bergamont E E Horizon model. Bergamont launched 133 e-bikes of this model so far. You can easily view all of the Bergamont E E Horizon e-bikes models from 2022, here.
Model range prices
Bergamont E-Horizon Edition Gent 2022 is the cheapest e-bike model and costs 3503$. Bergamont E-Horizon FS Elite Speed 2022 is the most expensive one and costs 5945$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Bergamont E-Horizon FS Elite Speed price was 5945$. If we compare this with the average Commuter e-bike cost we notice that the price is 131.41% higher.
Commuter e-bikes average weight
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, E-Horizon FS Elite Speed has a weight of 26.2 kg (57.76 lbs). In conclusion, the average Commuter e-bike weighs 3.97% less than E-Horizon FS Elite Speed.
Overview of components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Bergamont E-Horizon FS Elite Speed e-bike has the Suntour UNAir R8 model installed, and has a travel of 80mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the E-Horizon FS Elite Speed model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Horizon FS Elite Speed has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
