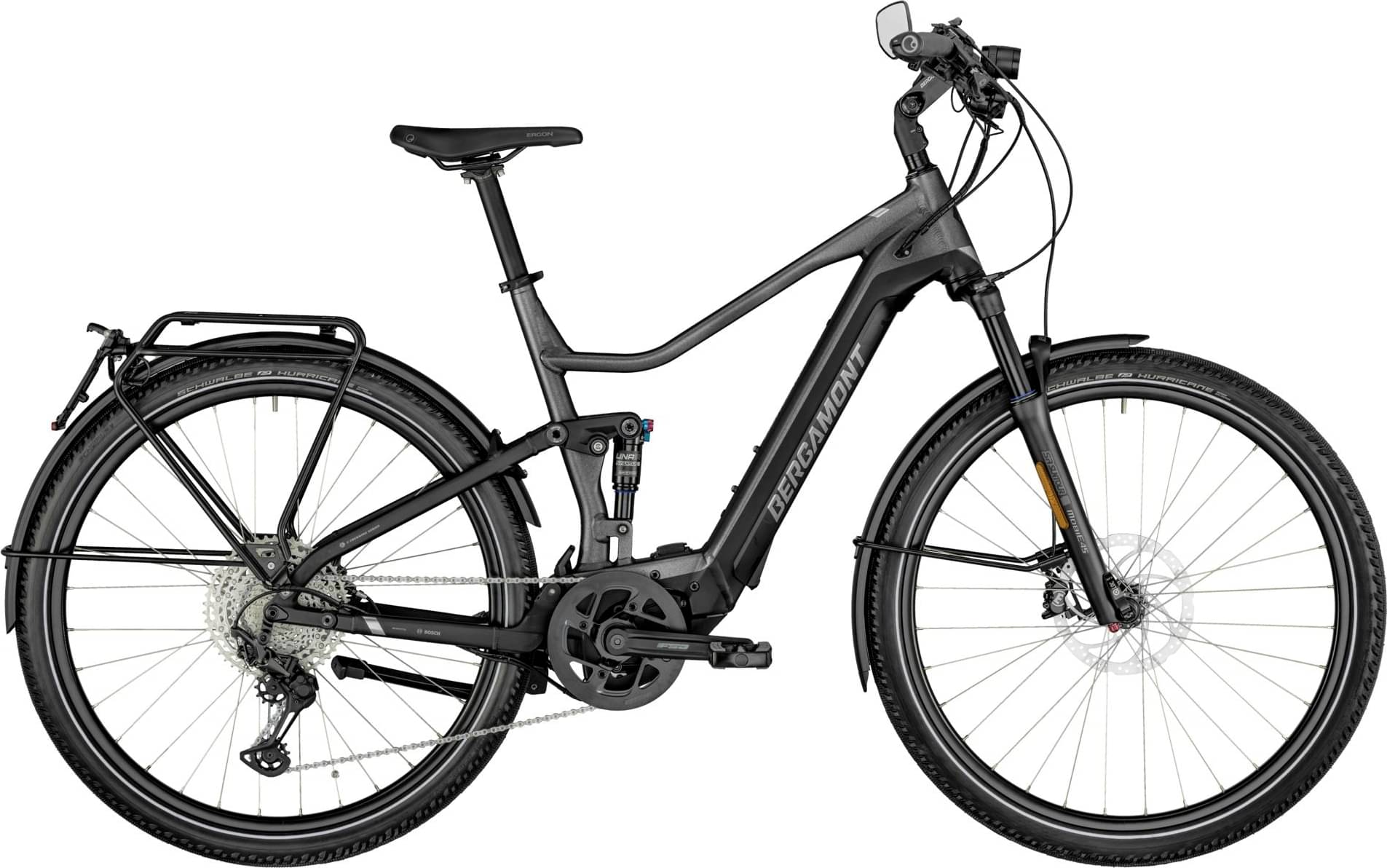

Bergamont E-Horizon FS Elite Speed 2023
2023 E-bike
Estimate price |
6,757$
Weight | 26.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Travel Rear 80mm -
Fork Suntour MOBIE
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, PowerTube battery, 80 mm rear travel
Suspension Fork
Suntour Mobie 45 Air, RLR DS, 100 mm, 15x100 mm axle
Rear Shock
Suntour UNAir R8, 80 mm, lockout
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8100, Shadow Plus
Shift Levers
Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M6100, 10-51t
Crank
FSA CK-320, 42t
Bottom Bracket
Bosch, Isis
Chain
KMC e12S
Pedals
Syncros Trekking alloy
Wheels
Front Hub
Shimano HB-MT400, centerlock, disc, 15x100 mm axle
Rear Hub
Shimano FH-MT410-B, centerlock, disc, 12x148 mm axle
Rims
Ryde Rival 23 disc, eyelets
Spokes
Sapim Leader
Tires
Front: Schwalbe Hurricane, Addix, reflective stripe, 57-622 Tube: Schwalbe AV19, Rear: Schwalbe Hurricane, Addix, reflective stripe, 57-622 Tube: Schwalbe AV19
Brakes
Brakes
Magura MT5e (front) / Magura MT4e (rear), hydraulic disc brake
Brake Levers
Magura MT, 3-fingers, ball-end, with brakelight switch
Cockpit
Stem
BGM E-Bike, adjustable, for Kiox integration
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
Ergon GP10
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Capilano Trekking, gel
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Performance Line Speed, Gen. 4, 250 W, 36 V, max. 45 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.49 mm | 1.49 mm | 1.49 mm |
| Front Center | 678 mm | 694 mm | 709 mm | 724 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 614 mm | 628 mm | 642 mm | 656 mm |
| Reach | 410 mm | 421 mm | 431 mm | 441 mm |
| Top Tube Length | 584 mm | 599 mm | 614 mm | 629 mm |
| Seat Tube Length | 445 mm | 480 mm | 525 mm | 555 mm |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1148 mm | 1164 mm | 1179 mm | 1194 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 730 mm | 730 mm | 749 mm | 775 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
E-Horizon FS Elite Speed is a Bergamont E E Horizon model. Bergamont launched 133 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Bergamont E-Horizon Edition Gent 2023 has a starting price of 3648$. Bergamont E-Horizon FS Elite 2023 on the other hand is the most expensive at 6689$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Bergamont E-Horizon FS Elite Speed price was 6142$. Comparing this to the average Commuter e-bike price, we see that the price is 139.08% more expensive.
Average weight for Commuter e-bikes
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
E-Horizon FS Elite Speed weighs 26.2 kg (57.76 lbs) and is slightly heavier than the average. In short, the average Commuter e-bike weight is 3.97% lower than this one.
Overview of components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the Suntour UNAir R8 model, with a travel of 80mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Bergamont E-Horizon FS Elite Speed 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Horizon FS Elite Speed has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
