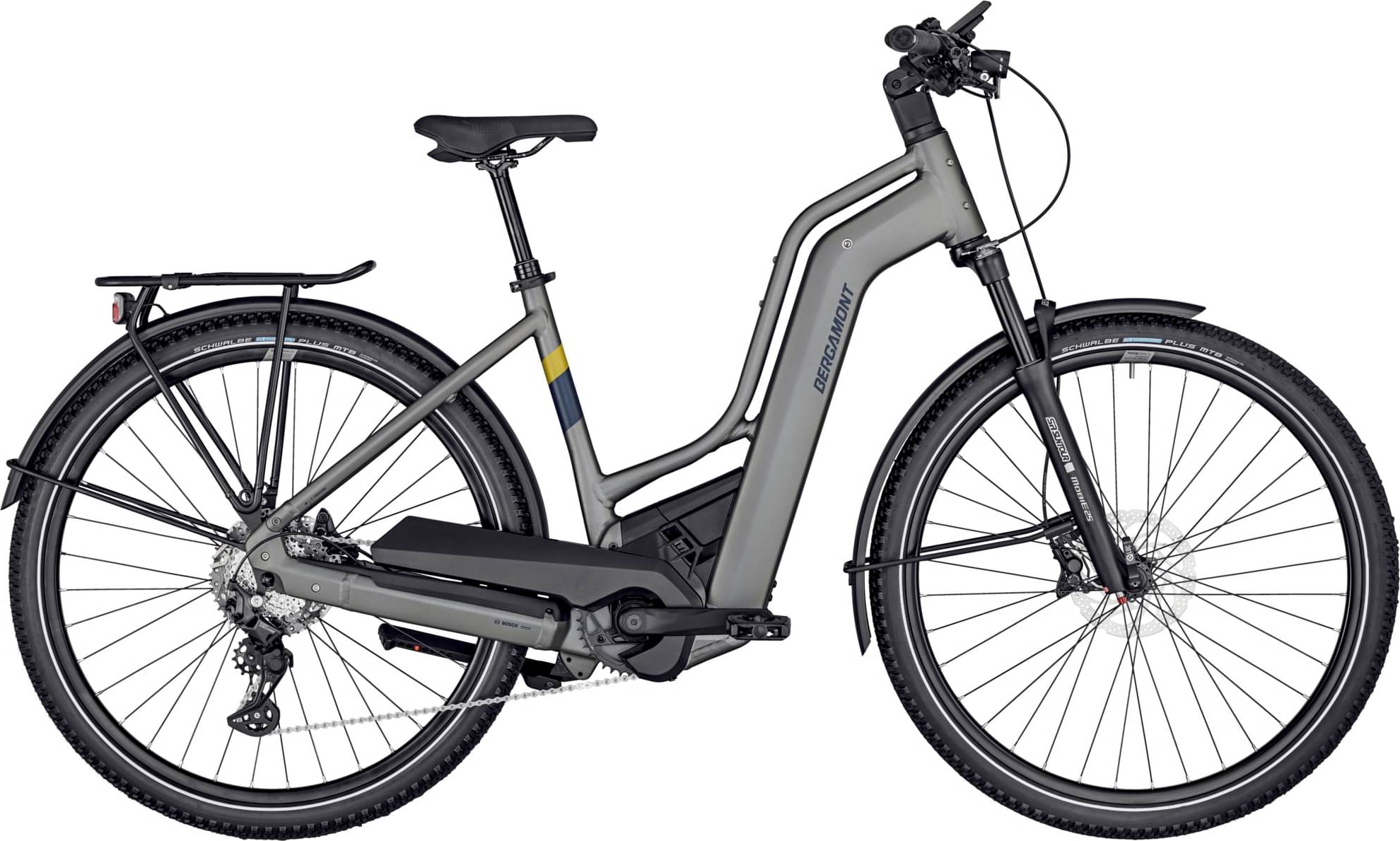

Bergamont E-Horizon Premium SUV Amsterdam 2023
2023 E-bike
Estimate price |
5,887$
Weight | 28.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 750 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", super lite AL-6061 tubing, BES III, PowerTube battery
Suspension Fork
Suntour Mobie 25, RLR DS, 100 mm, 15x100 mm axle
Drivetrain
Rear Derailleur
Shimano Deore Linkglide, RD-M5130, Shadow Plus
Shift Levers
Shimano Deore Linkglide, SL-M5130, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano Linkglide, CS-LG600-10, 11-43t
Crank
FSA CK-745, 38t
Bottom Bracket
Bosch, Isis
Chain
Shimano Linkglide, CN-LG500
Pedals
Marwi SP-890 matt Sandblock
Wheels
Front Hub
Shimano HB-MT400, centerlock, disc, 15x100 mm axle
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Ryde Rival 23 disc, eyelets
Spokes
Sapim Leader
Tires
Front: Schwalbe Marathon Plus MTB, Smart Dual Guard, reflective stripe, 54-622 Tube: Schwalbe AV19, Rear: Schwalbe Marathon Plus MTB, Smart Dual Guard, reflective stripe, 54-622 Tube: Schwalbe AV19
Brakes
Brakes
Shimano BR-MT420, hydraulic disc brake, 4-piston
Brake Levers
Shimano BL-MT402, hydraulic disc brake
Cockpit
Stem
Satori Python, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Seat
Saddle
Syncros Capilano Trekking Gel
Seatpost
Syncros Duncan, dropper post, 120 mm travel, remote
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 750 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.6 mm | 1.59 mm | 1.59 mm | 1.58 mm |
| Front Center | 682 mm | 682 mm | 693 mm | 703 mm | 714 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 647 mm | 647 mm | 656 mm | 666 mm | 675 mm |
| Reach | 404 mm | 404 mm | 412 mm | 418 mm | 426 mm |
| Top Tube Length | 603 mm | 603 mm | 613 mm | 623 mm | 633 mm |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm | 575 mm |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1179 mm | 1179 mm | 1190 mm | 1200 mm | 1211 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 491 mm | 491 mm | 491 mm | 491 mm | 491 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
E-Horizon Premium SUV Amsterdam is part of the Bergamont E E Horizon model. There are 133 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Bergamont E-Horizon Edition Gent 2023 is the cheapest e-bike model and costs 3648$. Bergamont E-Horizon FS Elite 2023 is the most expensive one and costs 6689$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Bergamont released this model in 2023, its price was 5351$. In conclusion, this e-bike price is 108.29% higher than the price of the average Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 28.9 kg (63.71 lbs), the E-Horizon Premium SUV Amsterdam model is considerably heavier than average. To sum up, it’s 14.68% heavier than the average weight of Commuter e-bikes.
Overview of components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Bergamont E-Horizon Premium SUV Amsterdam 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Bergamont E-Horizon Premium SUV Amsterdam has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Bergamont E-Horizon Premium SUV Amsterdam includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
