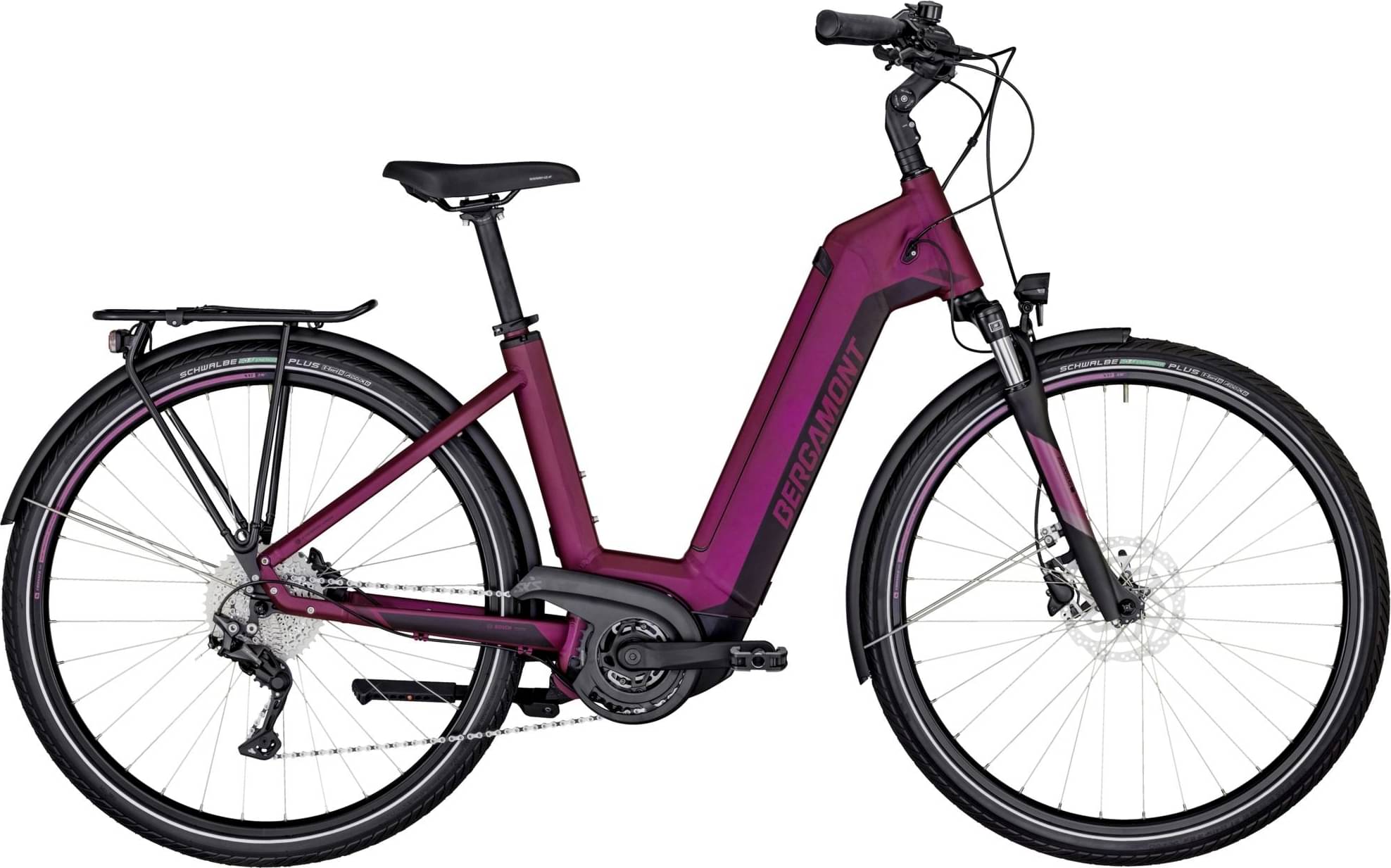

Bergamont E-Horizon Sport Wave red 2023
2023 E-bike
Estimate price |
4,013$
Weight | 27.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour NEX E25, 63 mm
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120, Shadow
Shift Levers
Shimano Deore, SL-M4100, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M4100, 11-42t
Crank
FSA CK-745, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e10S
Pedals
Trekking alloy
Wheels
Front Hub
Shimano HB-MT200, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
BGM Pro X17, disc, eyelets
Spokes
stainless, silver
Tires
Front: Schwalbe Energizer Plus, reflective stripe, 50-622 Tube: Schwalbe AV19B Light, Rear: Schwalbe Energizer Plus, reflective stripe, 50-622 Tube: Schwalbe AV19B Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT201, hydraulic disc brake
Cockpit
Stem
BGM Pro, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 40°, rise: 40 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Selle Royal Essenza Plus, lady
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.61 mm | 1.59 mm | 1.57 mm |
| Front Center | 655 mm | 660 mm | 665 mm | 670 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 649 mm | 649 mm | 649 mm | 649 mm |
| Reach | 398 mm | 403 mm | 408 mm | 413 mm |
| Top Tube Length | 601 mm | 606 mm | 611 mm | 616 mm |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 511 mm | 511 mm | 511 mm | 511 mm |
| Wheelbase | 1157 mm | 1162 mm | 1167 mm | 1172 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Horizon Sport Wave red is part of the Bergamont E E Horizon model. There are 133 e-bikes that carry this model name. Take a sneak peek at all Bergamont E E Horizon e-bikes models from 2023, by clicking here.
Model range prices
Bergamont E-Horizon Edition Gent 2023 is the cheapest e-bike model and costs 3648$. Bergamont E-Horizon FS Elite 2023 is the most expensive one and costs 6689$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 3648$. Comparing the average cost of a Commuter e-bike to this one, you will see that E-Horizon Sport Wave red price is 42% more expensive.
Average weight for Commuter e-bikes
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, E-Horizon Sport Wave red has a weight of 27.6 kg (60.85 lbs). In conclusion, the average Commuter e-bike weighs 9.52% less than E-Horizon Sport Wave red.
E-Horizon Sport Wave red components
Fork
The E-Horizon Sport Wave red comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the E-Horizon Sport Wave red e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Horizon Sport Wave red has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
