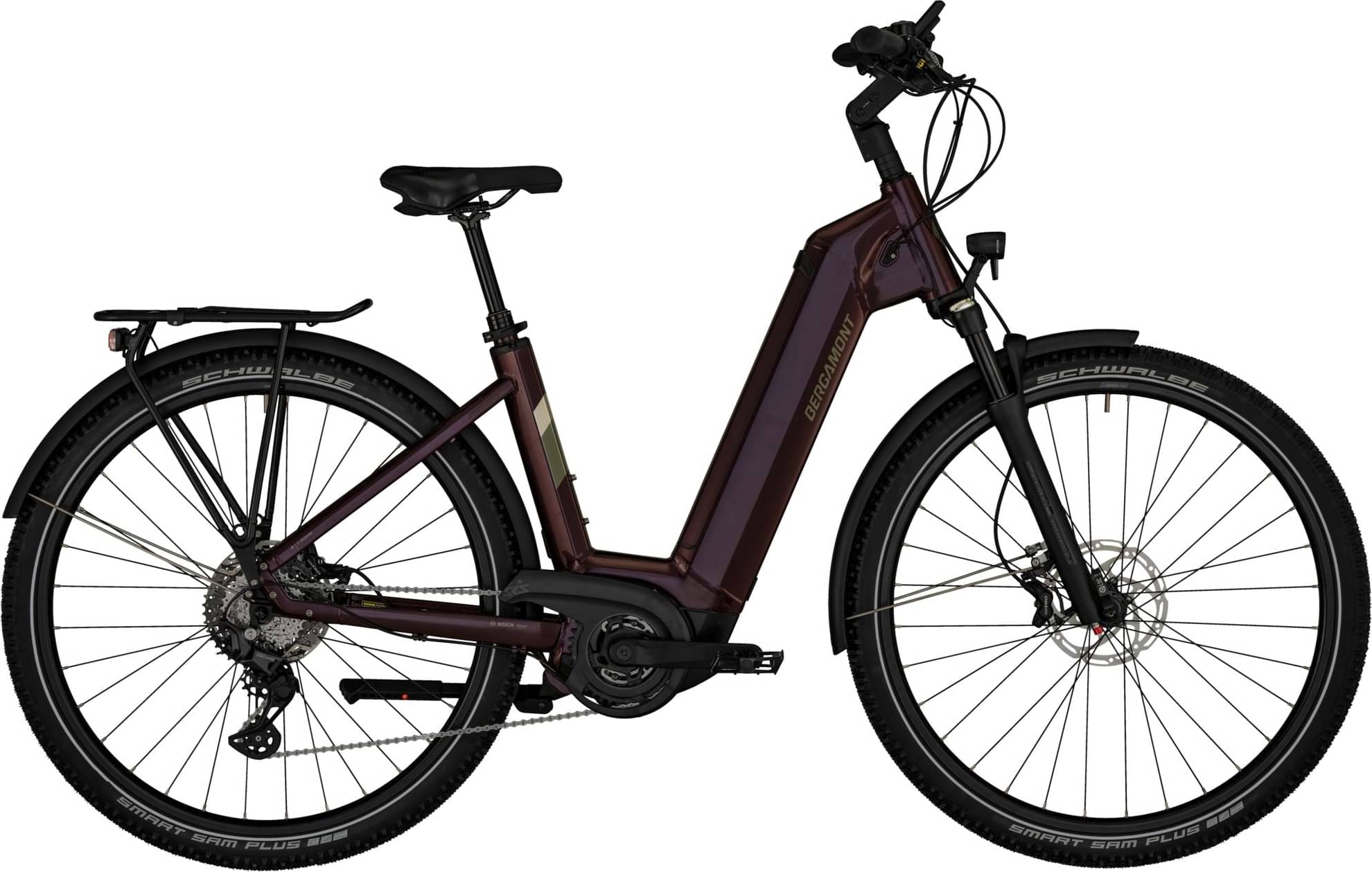

Bergamont E-Horizon SUV 6 Wave 2023
2023 E-bike
Estimate price |
5,419$
Weight | 28.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing, BES III, PowerTube battery
Suspension Fork
Suntour Mobie 25, RLR DS, 100 mm, 15x100 mm axle
Drivetrain
Rear Derailleur
Shimano Deore Linkglide, RD-M5130, Shadow Plus
Shift Levers
Shimano Deore Linkglide, SL-M5130, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano Linkglide, CS-LG600-10, 11-43t
Crank
FSA CK-745, 38t
Bottom Bracket
Bosch, Isis
Chain
Shimano Linkglide, CN-LG500
Pedals
Trekking alloy
Wheels
Front Hub
Shimano HB-MT400, centerlock, disc, 15x100 mm axle
Rear Hub
Shimano, centerlock, disc, quick release
Rims
BGM Pro X17, disc, eyelets
Spokes
stainless, black
Tires
Front: Schwalbe Smart Sam Plus, reflective stripe, 54-622 Tube: Schwalbe AV19, Rear: Schwalbe Smart Sam Plus, reflective stripe, 54-622 Tube: Schwalbe AV19
Brakes
Brakes
Shimano BR-MT420, hydraulic disc brake, 4-piston
Brake Levers
Shimano BL-MT402, hydraulic disc brake
Cockpit
Stem
Satori Python, adjustable
Handlebar
Syncros, riserbar, backsweep: 15°, width 680 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Capilano Trekking Memory Foam
Seatpost
Syncros Duncan, dropper post, 120 mm travel, remote
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.61 mm | 1.59 mm | 1.57 mm |
| Front Center | 655 mm | 660 mm | 665 mm | 670 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 649 mm | 649 mm | 649 mm | 649 mm |
| Reach | 398 mm | 403 mm | 408 mm | 413 mm |
| Top Tube Length | 601 mm | 606 mm | 611 mm | 616 mm |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 511 mm | 511 mm | 511 mm | 511 mm |
| Wheelbase | 1157 mm | 1162 mm | 1167 mm | 1172 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
E-Horizon SUV 6 Wave is a Bergamont E E Horizon model. Bergamont released 133 e-bikes variations of this model so far. Take a sneak peek at all Bergamont E E Horizon e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Bergamont E-Horizon Edition Gent 2023 has a starting price of 3648$. Bergamont E-Horizon FS Elite 2023 on the other hand is the most expensive at 6689$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Bergamont released this model in 2023, its price was 4925$. In conclusion, this e-bike price is 91.71% higher than the price of the average Commuter e-bike.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 28.2 kg (62.17 lbs), the E-Horizon SUV 6 Wave model is considerably heavier than average. In short, the average Commuter e-bike weight is 11.9% lower than this one.
Overview of components
Fork
Bergamont E-Horizon SUV 6 Wave 2023 e-bike is equipped with the Suntour MOBIE fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Bergamont E-Horizon SUV 6 Wave 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bergamont E-Horizon SUV 6 Wave is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
Bergamont E-Horizon SUV 6 Wave comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
