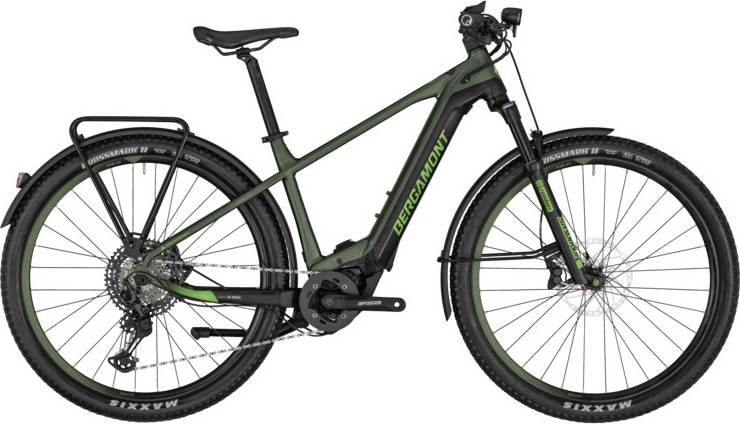

Bergamont E-Revox Elite EQ 2020
2020 E-bike
Weight | 23.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour RAIDON 34
-
Groupset XT, Shimano -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Kiox Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour Raidon 34, 100 mm, 15x110 mm axle
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8100, Shadow Plus
Shift Levers
Shimano Deore XT, SL-M8100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano SLX, CS-M7100, 10-51t
Crank
FSA CK-745, Shimano CRE80-12, 34t, 170 mm
Bottom Bracket
Bosch, Isis
Chain
Shimano SLX, CN-M7100
Wheels
Front Hub
Shimano HB-MT400, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT510, centerlock, disc, 12x148 mm axle
Rims
Alex EXR 25, disc, eyelets, width: 30 mm
Spokes
Sapim Leader
Tires
Maxxis CROSSMARK II, EXO, folding, Tubeless ready, 29x2.25" Tubes: Schwalbe SV21B
Brakes
Brakes
Shimano BR-MT420, hydraulic disc brake, 4-piston, SM-RT30 rotor: 203/180 mm
Brake Levers
Shimano BL-MT401, hydraulic disc brake
Cockpit
Stem
Syncros FL2.0, +/-6°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm / 720 mm for size S
Grips
Ergon GA20
Headset
Prestine PT F13X, A-Headset, semi-integrated, tapered
Seat
Saddle
Ergon SM10 E-Mountain
Seatpost
Syncros M3.0
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Kiox Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Kiox Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.56 mm | 1.52 mm | 1.51 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 651 mm | 659 mm | 675 mm | 675 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 92 mm | 93 mm | 91 mm | 81 mm |
| Stack | 622 mm | 628 mm | 632 mm | 648 mm |
| Reach | 396 mm | 403 mm | 416 mm | 428 mm |
| Top Tube Length | 585 mm | 593 mm | 602 mm | 619 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 445 mm | 480 mm | 525 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 71 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1125 mm | 1133 mm | 1149 mm | 1149 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 754 mm | 761 mm | 768 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
E-Revox Elite EQ is a Bergamont E E Revox model. Bergamont launched 62 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry e-bikes
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Bergamont E-Revox Elite EQ it’s weighing 23.2 kg (51.15 lbs). At this weight, is slightly lighter than average. To sum up, it’s 0.04% lighter than the average weight of Crosscountry e-bikes.
Overview of components
Fork
The E-Revox Elite EQ comes factory-installed with the SunTour RAIDON 34 fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the E-Revox Elite EQ e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
E-Revox Elite EQ comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
