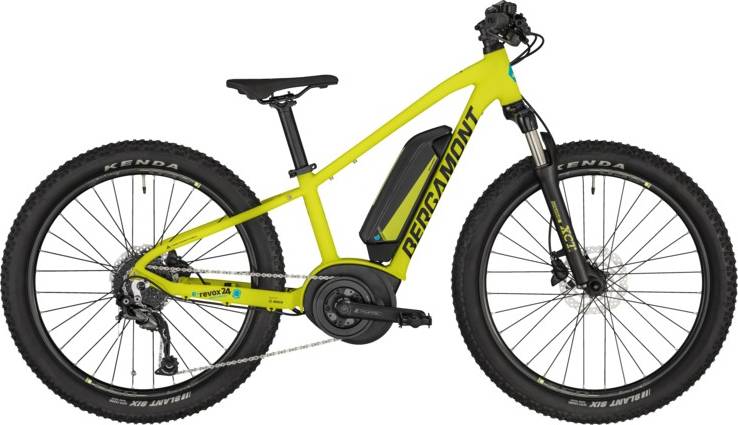

Bergamont E-Revox Junior 24 2020
2020 E-bike
Weight | 19.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 70mm -
Fork SunTour XCT
-
Groupset Alivio, Shimano -
Suspension Hardtail -
Motor Bosch 250W mid-drive -
Battery Motor: Bosch Drive Unit Active Line, Gen. 3, 250 W, 36 V, max. 20 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 400 Wh, PowerPack Assistance Modes: Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+250%), Walk Assist (-5 km/h) -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
24", ultra lite AL-6061 tubing, PowerPack battery
Suspension Fork
Suntour XCT Air Plus, 70 mm, rebound adjust
Drivetrain
Rear Derailleur
Shimano RD-M4000, Shadow
Shift Levers
Shimano SL-M2010, 1x9-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG200-9, 11-34t
Crank
FSA CK-400, with alloy cover, 36t, 155 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e9S
Pedals
VP
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Mach1 650, disc, tubeless ready, width: 23 mm
Spokes
steel, black
Tires
Kenda Slant Six, 24x2.60" Tubes: Kenda
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Syncros, length: 50 mm
Handlebar
Syncros M15, flatbar, width: 620 mm
Grips
Syncros MTB
Headset
BGM, A-Headset
Seat
Saddle
Syncros
Seatpost
Syncros
Motor & Battery
Motor
Motor: Bosch Drive Unit Active Line, Gen. 3, 250 W, 36 V, max. 20 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 400 Wh, PowerPack Assistance Modes: Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+250%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Active Line, Gen. 3, 250 W, 36 V, max. 20 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 400 Wh, PowerPack Assistance Modes: Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+250%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
Model Overview
E-Revox Junior 24 belongs to the Bergamont E E Revox model. Bergamont released 62 e-bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Mountain e-bikes average price
If you want to purchase a solid Mountain e-bike, it is important to know that the average cost is 1448$. However, even though the average price of a Mountain e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Mountain e-bikes average weight
The average weight for Mountain e-bikes is 24.45 kg (53.9 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Bergamont E-Revox Junior 24 it’s weighing 19.8 kg (43.65 lbs). At this weight, is much lighter than average. In conclusion, the average Mountain e-bike weighs 23.48% more than E-Revox Junior 24.
E-Revox Junior 24 components
Fork
The E-Revox Junior 24 comes factory-installed with the SunTour XCT fork. This has a travel range of 70mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The E-Revox Junior 24 2020 e-bike is equipped with 24″ aluminum wheels when leaving the factory. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bergamont E-Revox Junior 24 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
