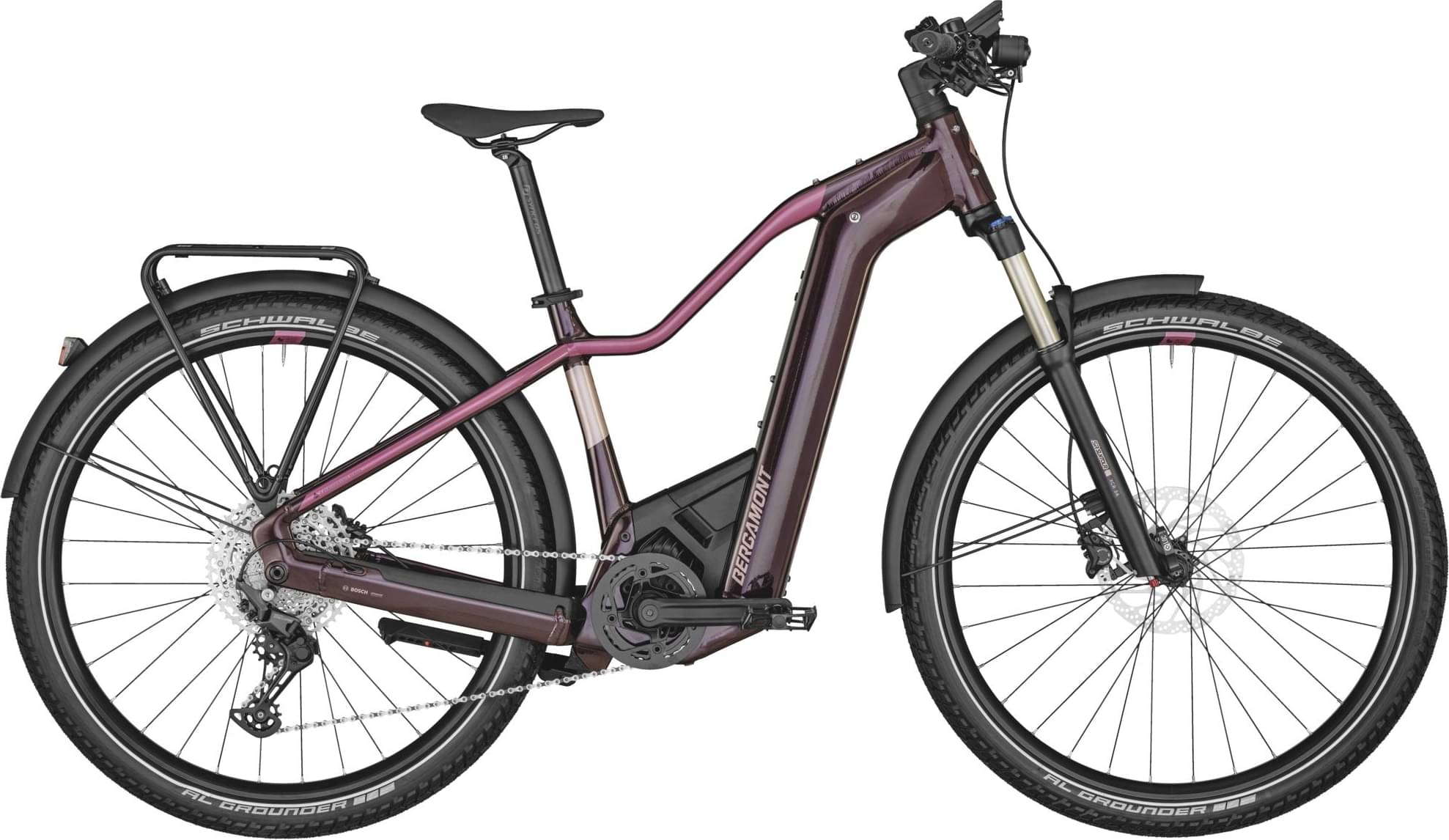

Bergamont E-Revox Premium Pro FMN EQ 2022
2022 E-bike
Estimate price |
4,931$
Weight | 27.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCR 34
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 750 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour XCR34 LOR Air, 120 mm, rebound adjust, 15x110 mm axle
Drivetrain
Rear Derailleur
Shimano Deore, RD-M5100, Shadow Plus
Shift Levers
Shimano Deore, SL-M5100, 1x11-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M5100, 11-51t
Crank
FSA CK-320, 34t, 170 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e11S
Pedals
VPE-506
Wheels
Front Hub
Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle
Rims
Cross X18, disc, eyelets, width: 30 mm
Spokes
stainless, black
Tires
Schwalbe Al Grounder, 29x2.35" Tube: Schwalbe SV19FB Light
Brakes
Brakes
Shimano BR-MT420, hydraulic disc brake, 4-piston
Brake Levers
Shimano BL-MT4100, hydraulic disc brake
Disk Rotors
Shimano SM-RT30, 203 mm / Shimano SM-RT30, 180 mm
Cockpit
Stem
Satori Viper, 0°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm
Grips
Ergon GA20
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock
Seat
Saddle
Syncros Savona 2.5
Seatpost
Syncros M3.0
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 750 Wh
Remote
Bosch LED Remote with Kiox 300 display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.61 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 683 mm | 694 mm | 705 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Stack | 646 mm | 656 mm | 665 mm |
| Reach | 398 mm | 405 mm | 413 mm |
| Top Tube Length | 583 mm | 593 mm | 603 mm |
| Seat Tube Length | 420 mm | 450 mm | 480 mm |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1179 mm | 1190 mm | 1201 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 783 mm | 794 mm | 815 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
E-Revox Premium Pro FMN EQ belongs to the Bergamont E E Revox model. 62 e-bikes variations carry this model name so far. Take a sneak peek at all Bergamont E E Revox e-bikes models from 2022, by clicking here.
Model range prices
Bergamont E-Revox 4 2022 is the cheapest e-bike model and costs 3078$. Bergamont E-Revox Premium Rigid EQ 2022 is the most expensive one and costs 4565$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Bergamont released this model in 2022, its price was 4565$. Doing a quick comparison, we notice that E-Revox Premium Pro FMN EQ price is 35.66% more expensive than the average cost of a Trail e-bike.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 27.8 kg (61.29 lbs), the E-Revox Premium Pro FMN EQ model is much heavier than average. In conclusion, the average Trail e-bike weighs 17.3% less than E-Revox Premium Pro FMN EQ.
Overview of components
Fork
This e-bike has the Suntour XCR 34 fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the E-Revox Premium Pro FMN EQ e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Revox Premium Pro FMN EQ comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
