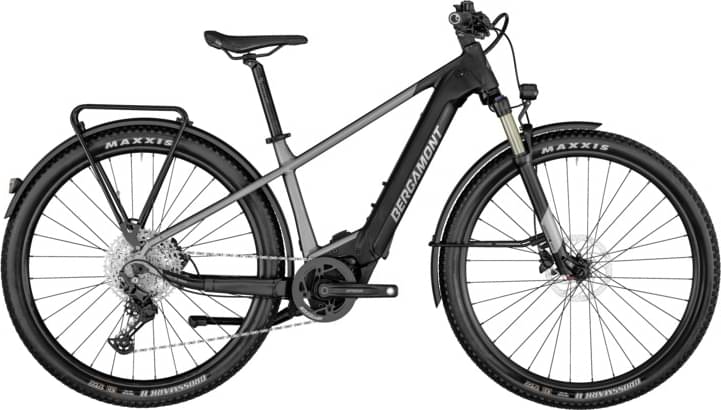

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCR 34
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h) -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour XCR34 Air, 100 mm, rebound adjust, 15x110 mm axle
Drivetrain
Rear Derailleur
Shimano Deore, RD-M5100, Shadow Plus
Shift Levers
Shimano Deore, SL-M5100, 1x11-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M5100, 11-51t
Crank
FSA CK-320, 34t, 170 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e11S
Pedals
none
Wheels
Front Hub
Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle
Rims
Alex EXR25, disc, eyelets, width: 25 mm
Spokes
Sapim Leader
Tires
Maxxis Crossmark II, EXO, folding, Tubeless ready, 29x2.25" Tubes: Schwalbe SV21B
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT30 rotor: 180/180 mm
Brake Levers
Shimano BL-MT201, hydraulic disc brake
Cockpit
Stem
Syncros FL2.0, +/-6°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm / 720 mm for size S
Grips
Ergon GA20
Headset
BGM F13-X, A-Headset, semi-integrated, tapered
Seat
Saddle
Ergon SM10 E-Mountain
Seatpost
Syncros M3.0
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.56 mm | 1.52 mm | 1.51 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 651 mm | 659 mm | 675 mm | 675 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 92 mm | 93 mm | 91 mm | 81 mm |
| Stack | 622 mm | 628 mm | 632 mm | 648 mm |
| Reach | 396 mm | 403 mm | 416 mm | 428 mm |
| Top Tube Length | 585 mm | 593 mm | 602 mm | 619 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 445 mm | 480 mm | 525 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 71 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1125 mm | 1133 mm | 1149 mm | 1149 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 754 mm | 761 mm | 768 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
E-Revox Pro EQ is a Bergamont E E Revox model. There are 62 e-bikes that carry this model name. You can easily view all of the Bergamont E E Revox e-bikes models from 2021, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Bergamont E-Revox Pro EQ it’s weighing 24.1 kg (53.13 lbs). At this weight, is slightly heavier than average. In other words, this model is 3.83% heavier than the average Crosscountry e-bike.
Overview of components
Fork
The fork installed on this bike is the SunTour XCR 34 model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The E-Revox Pro EQ 2021 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Revox Pro EQ has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
