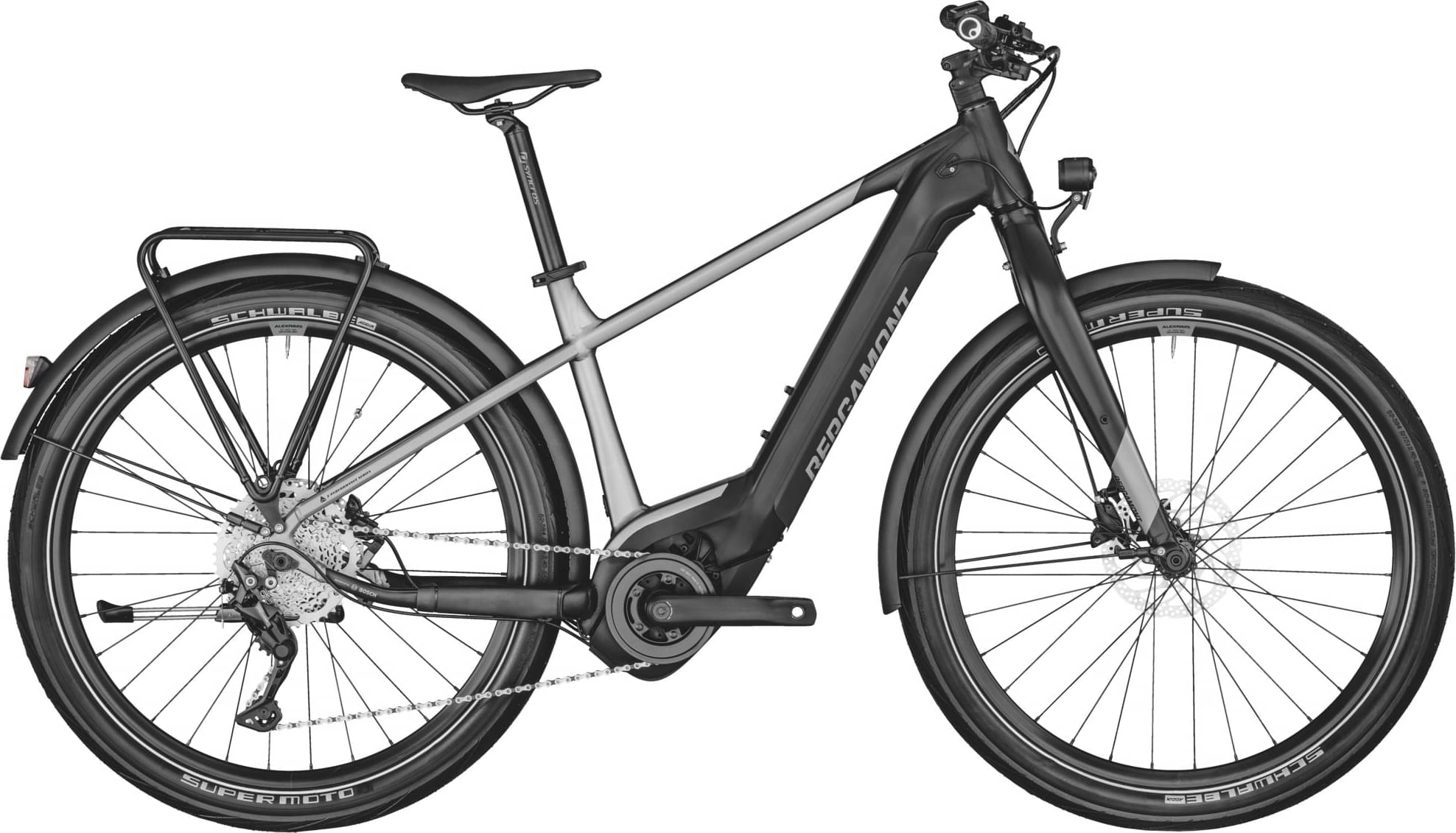

Bergamont E-Revox Rigid EQ 2022
2022 E-bike
Estimate price |
3,898$
Weight | 23.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset Deore, FSA -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
BGM 27.5" MTB rigid fork
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120, Shadow
Shift Levers
Shimano Deore, SL-M4100, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M4100, 11-46t
Crank
FSA CK-200, 34t, 170 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e10S
Pedals
none
Wheels
Front Hub
Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle
Rims
Alex EXR30, disc, eyelets, width: 30 mm
Spokes
Sapim Leader
Tires
Schwalbe Super Moto, Performance, 27.5x2.40" Tube: Schwalbe SV21B Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT201, hydraulic disc brake
Disk Rotors
Shimano SM-RT30, 180 mm
Cockpit
Stem
Syncros FL2.0, +/-6°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm
Grips
Ergon GA20
Headset
Prestine PT F13X, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros M3.0
Motor & Battery
Motor
Bosch Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 500 Wh
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.56 mm | 1.52 mm | 1.51 mm |
| Front Center | 651 mm | 659 mm | 675 mm | 675 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 622 mm | 628 mm | 632 mm | 648 mm |
| Reach | 396 mm | 403 mm | 416 mm | 428 mm |
| Top Tube Length | 585 mm | 593 mm | 602 mm | 619 mm |
| Seat Tube Length | 420 mm | 445 mm | 480 mm | 525 mm |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1125 mm | 1133 mm | 1149 mm | 1149 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 751 mm | 761 mm | 768 mm | 799 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
E-Revox Rigid EQ is a Bergamont E E Revox model. 62 e-bikes variations carry this model name so far. You can easily view all of the Bergamont E E Revox e-bikes models from 2022, here.
Model range prices
Bergamont E-Revox 4 2022 is the cheapest e-bike model and costs 3078$. Bergamont E-Revox Premium Rigid EQ 2022 is the most expensive one and costs 4565$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 3609$. If we compare this with the average Commuter e-bike cost we notice that the price is 40.48% more expensive.
Average weight for Commuter e-bikes
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 23.5 kg (51.81 lbs), the E-Revox Rigid EQ model is a bit lighter than average. In other words, this model is 7.23% lighter than the average Commuter e-bike.
Overview of components
Wheels size
When leaving the production line, the E-Revox Rigid EQ model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
E-Revox Rigid EQ comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
