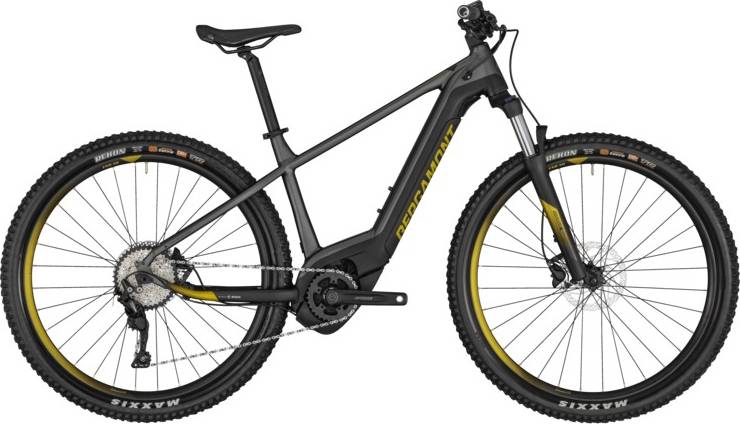

Bergamont E-Revox Sport anthracite 2020
2020 E-bike
Weight | 23.4 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h) -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour XCM 34, 100 mm, rebound adjust, 15x110 mm axle
Drivetrain
Rear Derailleur
Shimano Deore, RD-M6000, Shadow Plus
Shift Levers
Shimano Deore, SL-M6000, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG500, 11-42T
Crank
FSA CK-320, 34t, 170mm
Bottom Bracket
Bosch, Isis
Chain
KMC e10S
Wheels
Front Hub
Shimano HB-MT400, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT400, centerlock, disc, 12x148 mm axle
Rims
Alex EXR 30, disc, eyelets, width: 30 mm
Spokes
Sapim Leader
Tires
Maxxis Rekon, 3C-EXO+, folding, Tubeless ready, 120 TPI, 29x2.60" Tubes: Schwalbe SV19FB Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT30 rotor: 180/180 mm
Brake Levers
Shimano BL-MT201, hydraulic disc brake
Cockpit
Stem
Syncros FL2.0, +/-6°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm / 720 mm for size S
Grips
Ergon GA20
Headset
Prestine PT F13X, A-Headset, semi-integrated, tapered
Seat
Saddle
Ergon SM10 E-Mountain
Seatpost
Syncros M3.0
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.56 mm | 1.52 mm | 1.51 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 651 mm | 659 mm | 675 mm | 675 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 92 mm | 93 mm | 91 mm | 81 mm |
| Stack | 622 mm | 628 mm | 632 mm | 648 mm |
| Reach | 396 mm | 403 mm | 416 mm | 428 mm |
| Top Tube Length | 585 mm | 593 mm | 602 mm | 619 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 445 mm | 480 mm | 525 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 71 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1125 mm | 1133 mm | 1149 mm | 1149 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 754 mm | 761 mm | 768 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
E-Revox Sport anthracite is a Bergamont E E Revox model. There are 62 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry e-bikes
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry e-bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 23.4 kg (51.59 lbs), the E-Revox Sport anthracite model is slightly heavier than average. In conclusion, the average Crosscountry e-bike weighs 0.82% less than E-Revox Sport anthracite.
Overview of components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on E-Revox Sport anthracite are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bergamont E-Revox Sport anthracite is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
