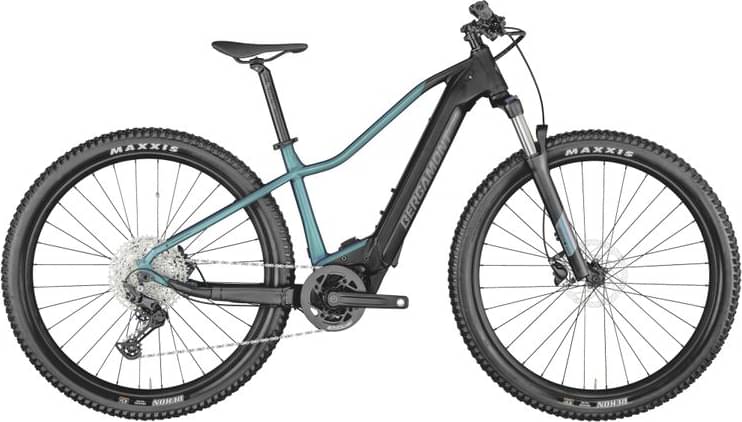

Bergamont E-Revox Sport FMN 2022
2022 E-bike
Estimate price |
3,784$
Weight | 23.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour XCM34, 100 mm, rebound adjust, 15x110 mm axle
Drivetrain
Rear Derailleur
Shimano Deore, RD-M5100, Shadow Plus
Shift Levers
Shimano Deore, SL-M5100, 1x11-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M5100, 11-51t
Crank
FSA CK-320, 34t, 170 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e11S
Pedals
none
Wheels
Front Hub
Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle
Rims
Alex EXR30, disc, eyelets, width: 30 mm
Spokes
Sapim Leader
Tires
Maxxis Rekon, EXO, 29x2.60" Tube: Schwalbe SV19FB Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Disk Rotors
Shimano SM-RT30, 180 mm
Cockpit
Stem
Syncros 3.0, +/-6°
Handlebar
Syncros 3.0, riserbar, rise: 15 mm, width: 740 mm / 720 mm for size S
Grips
Syncros MTB
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Savona 2.5
Seatpost
Syncros M3.0
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.58 mm | 1.57 mm | 1.53 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 636 mm | 651 mm | 659 mm | 675 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 613 mm | 613 mm | 619 mm | 623 mm |
| Reach | 372 mm | 387 mm | 394 mm | 407 mm |
| Top Tube Length | 562 mm | 576 mm | 584 mm | 593 mm |
| Seat Tube Length | 360 mm | 420 mm | 445 mm | 480 mm |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1101 mm | 1116 mm | 1124 mm | 1140 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 738 mm | 731 mm | 742 mm | 740 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
E-Revox Sport FMN completes the Bergamont E E Revox model. Bergamont launched 62 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Bergamont E-Revox 4 2022 is the most affordable e-bike of this model and has a price of 3078$. On the other hand, Bergamont E-Revox Premium Rigid EQ 2022, is the most expensive and costs 4565$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Bergamont E-Revox Sport FMN price was 3503$. In conclusion, this e-bike price is 42.8% more expensive than the price of the average Crosscountry e-bike.
Crosscountry e-bikes average weight
Crosscountry e-bikes have an average weight of 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
E-Revox Sport FMN weighs 23.6 kg (52.03 lbs) and is slightly heavier than the average. In other words, this model is 1.68% heavier than the average Crosscountry e-bike.
E-Revox Sport FMN components
Fork
The E-Revox Sport FMN comes factory-installed with the Suntour XCM fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the E-Revox Sport FMN e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Bergamont E-Revox Sport FMN has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Bergamont E-Revox Sport FMN e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
