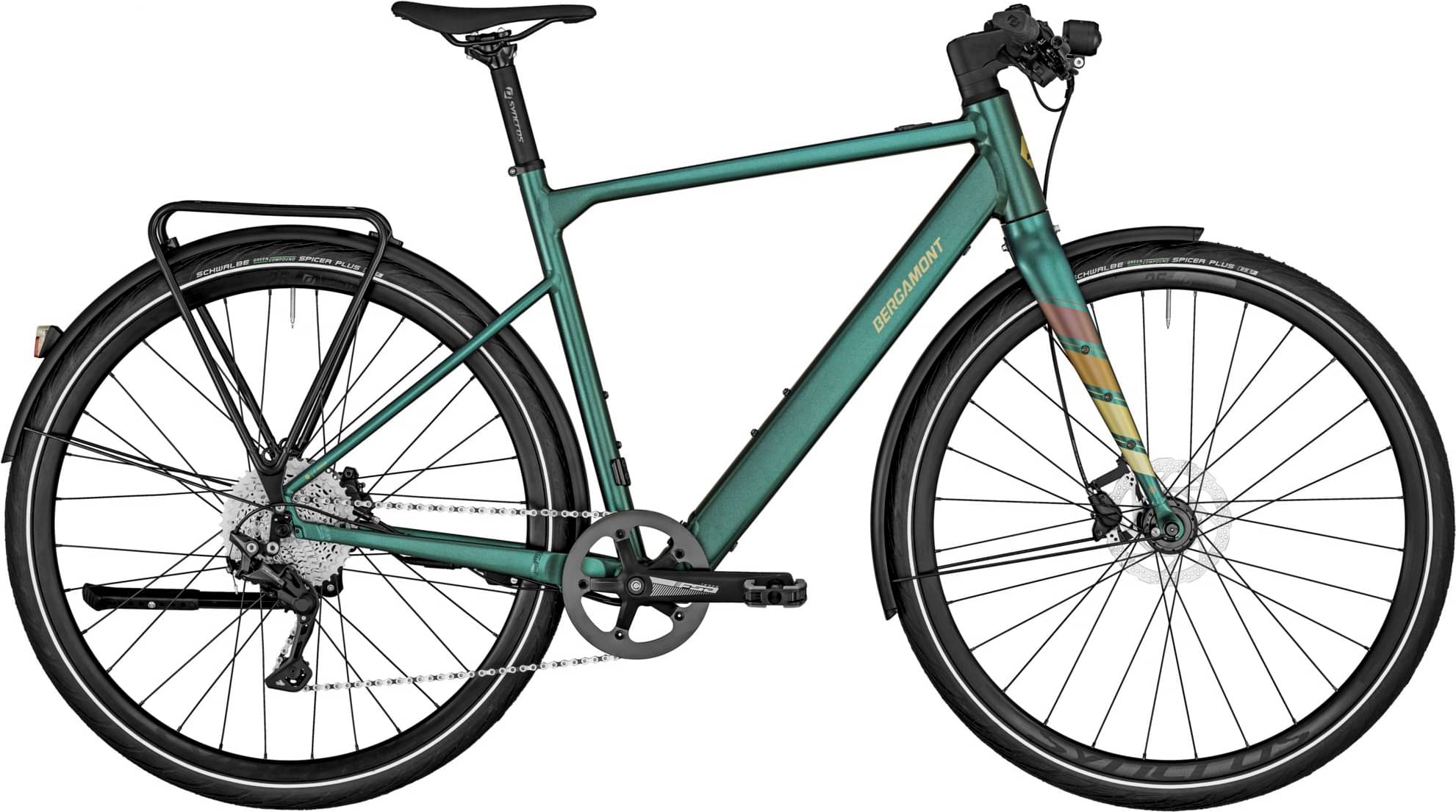

Bergamont E-Sweep Tour 2023
2023 E-bike
Estimate price |
3,947$
Weight | 17.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore, FSA -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Mahle integrated DT battery, 36 V Li Ion, 250 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, integrated battery
Suspension Fork
Sweep Alloy, flatmount, triple mounts, quick release
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120, Shadow
Shift Levers
Shimano Deore, SL-M4100, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano CS-M4100-10, 11-42t
Crank
FSA CK-201, 42t
Bottom Bracket
FSA, BSA
Chain
KMC E10
Pedals
Urban alloy
Wheels
Front Hub
Syncros Capital 2.0 wheelset, disc, with Mahle X35+ hub engine
Rear Hub
Syncros Capital 2.0 wheelset, disc, with Mahle X35+ hub engine
Rims
Syncros Capital 2.0 wheelset, disc, with Mahle X35 hub engine
Spokes
Stainless, black
Tires
Front: Schwalbe Spicer Plus, Kevlarguard, reflective stripe, 40-622 Tube: Schwalbe SV17A Light, Rear: Schwalbe Spicer Plus, Kevlarguard, reflective stripe, 40-622 Tube: Schwalbe SV17A Light
Brakes
Brakes
Shimano BR-UR300, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Satori Viper, - +/7°
Handlebar
Syncros 3.0, riserbar, width: 660 mm
Grips
Syncros Urban
Headset
Acros, A-Headset, semi-integrated, 1.5", with intergrated cable routing
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros
Motor & Battery
Motor
Mahle X35+, 250 W, 36 V, max. 25 km/h
Battery
Mahle integrated DT battery, 36 V Li Ion, 250 Wh
Charger
Mahle charger, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.363 mm | 1.376 mm | 1.388 mm | 1.4 mm | 1.411 mm |
| Front Center | 626 mm | 641 mm | 657 mm | 673 mm | 689 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 559 mm | 578 mm | 597 mm | 616 mm | 635 mm |
| Reach | 410 mm | 420 mm | 430 mm | 440 mm | 450 mm |
| Top Tube Length | 560 mm | 575 mm | 590 mm | 605 mm | 620 mm |
| Seat Tube Length | 485 mm | 510 mm | 535 mm | 560 mm | 585 mm |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1051 mm | 1067 mm | 1083 mm | 1099 mm | 1115 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 771 mm | 793 mm | 815 mm | 836 mm | 854 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
E-Sweep Tour belongs to the Bergamont E E Sweep model. Bergamont released 2 e-bikes variations of this model so far. You can easily view all of the Bergamont E E Sweep e-bikes models from 2023, here.
Model range prices
Bergamont E-Sweep Sport 2023 is the most economical model, with a starting price of 3344$. Bergamont E-Sweep Tour 2023 on the other hand costs 3587$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Fitness e-bikes
If you want an acceptable Fitness e-bike you should know that the average price is 2351$. However, you could also get a good Fitness e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Bergamont released this model in 2023, its price was 3587$. Comparing this to the average Fitness e-bike price, we see that the price is 52.57% more expensive.
Average weight for Fitness e-bikes
Fitness e-bikes have an average weight of 22.56 kg (49.74 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, E-Sweep Tour has a weight of 17.2 kg (37.92 lbs). In short, the average Fitness e-bike weight is 31.16% higher than this one.
E-Sweep Tour components
Fork material
When it comes to the fork, this e-bike has an aluminum one, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
When leaving the production line, the E-Sweep Tour model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
