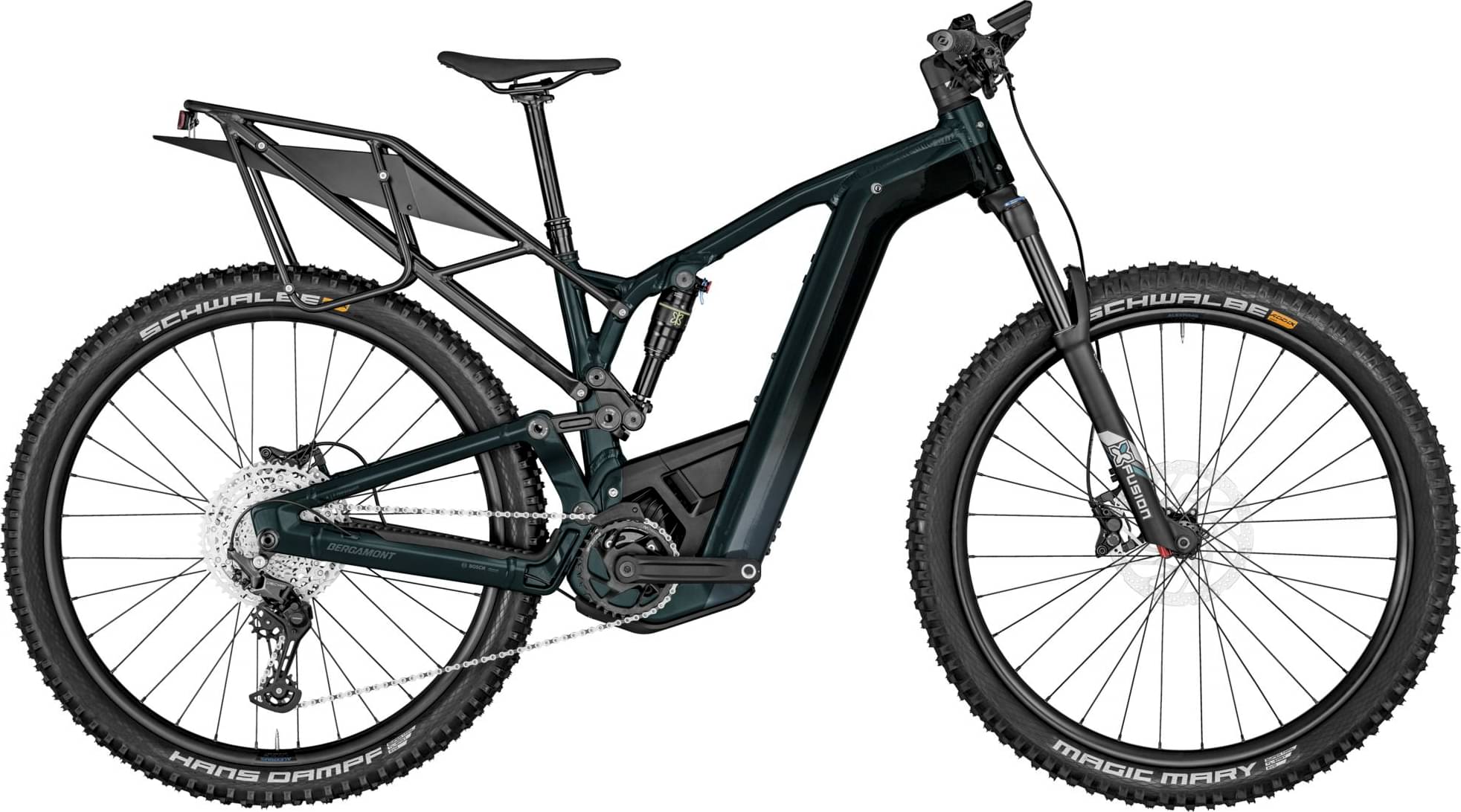

Bergamont E-Trailster 130 Tour 2023
2023 E-bike
Estimate price |
6,355$
Weight | 27.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork X-Fusion SLIDE
-
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", ultra lite AL-6061 tubing, PowerTube battery, 120 mm rear travel
Suspension Fork
X-Fusion E-Slide, 130 mm, 15x110 mm axle
Rear Shock
Rock Shox Deluxe Select Plus Air, length x stroke 185x55, hardware: 16x8mm
Drivetrain
Rear Derailleur
Shimano Deore, RD-M6100, Shadow Plus
Shift Levers
Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M6100, 10-51t
Crank
FSA CK-320, 34t, 165 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e12S
Pedals
none
Wheels
Front Hub
Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT410-B, centerlock, disc, 12x148 mm axle
Rims
Alex EXR30, disc, eyelets, width: 30 mm
Spokes
Sapim Leader
Tires
Front: Schwalbe Wicked Will Performance, folding, Addix Soft, 29x2.60" Tube: Schwalbe SV19FB Light, Rear: Schwalbe Wicked Will Performance, folding, Addix Soft, 29x2.60" Tube: Schwalbe SV19FB Light
Brakes
Brakes
Shimano BR-MT420, hydraulic disc brake, 4-piston
Brake Levers
Shimano BL-MT401, hydraulic disc brake
Cockpit
Stem
Satori Viper, 0°
Handlebar
Syncros Hixon 2.0, riserbar, rise: 12 mm, width: 780 mm
Grips
Syncros E-MTB
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros Duncan 2.5, dropper post, 150 mm (frame size "S": 125 mm), remote
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 625 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 730 mm | 750 mm | 776 mm | 803 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 629 mm | 629 mm | 638 mm | 652 mm |
| Reach | 413 mm | 433 mm | 456 mm | 477 mm |
| Top Tube Length | 578 mm | 598 mm | 623 mm | 648 mm |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 505 mm |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1210 mm | 1230 mm | 1256 mm | 1283 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 792 mm | 809 mm | 827 mm | 855 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
E-Trailster 130 Tour is a Bergamont E E Trailster model. Bergamont released 14 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Bergamont E-Trailster Pro 2023 is the most economical model, with a starting price of 5412$. Bergamont E-Trailster 150 Elite 2023 on the other hand costs 6689$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 5777$. If we compare this with the average Trail e-bike cost we notice that the price is 71.68% higher.
Average weight for Trail e-bikes
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
considerably heavier than average, E-Trailster 130 Tour has a weight of 27.2 kg (59.97 lbs). In conclusion, the average Trail e-bike weighs 14.77% less than E-Trailster 130 Tour.
Overview of components
Fork
The X-Fusion SLIDE is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Bergamont E-Trailster 130 Tour e-bike has the Rock Shox Deluxe Select Plus Air model installed, and has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on E-Trailster 130 Tour are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Trailster 130 Tour has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Bergamont model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
