Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing
Suspension Fork
Grandurance Alloy, 12x100 mm axle, fender mount
Drivetrain
Rear Derailleur
Shimano Sora, RD-R3000, long cage
Front Derailleur
Shimano Sora, FD-R3000
Shift Levers
Shimano Sora, ST-R3000, 2x9-speed, road STI-shifter
Cassette
Shimano CS-HG201-9, 11-34t
Crank
Shimano Sora, FC-R3000, 50/34t
Bottom Bracket
Shimano Hollowtech II, BSA
Chain
KMC X9
Pedals
none
Wheels
Front Hub
BGM Allroad, centerlock, disc, 12x100 mm axle
Rear Hub
BGM Allroad, centerlock, disc, 12x142 mm axle
Rims
Shining C-325D, 28h, disc
Spokes
stainless, black
Tires
Schwalbe G-One Allround, folding, Raceguard, 35-622 Tubes: Schwalbe SV17A Light
Brakes
Brakes
Shimano BR-RS305, mechanical disc brake, SM-RT64 rotor: 160/160 mm
Brake Levers
Shimano Sora, ST-R3000
Cockpit
Stem
Syncros RR2.5, +/- 6°
Handlebar
Syncros Creston 2.0, flare: 10°
Grips
BGM Race Grip-Tape, antislip
Headset
BGM F13-C, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros RR2.5
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 53cm | 55cm | 57cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.41 mm | 1.49 mm | 1.5 mm | 1.51 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 614 mm | 631 mm | 627 mm | 643 mm | 659 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 74 mm | 66 mm | 67 mm | 67 mm |
| Stack | 549 mm | 567 mm | 595 mm | 614 mm | 633 mm |
| Reach | 392 mm | 402 mm | 398 mm | 408 mm | 418 mm |
| Top Tube Length | 537 mm | 552 mm | 567 mm | 582 mm | 597 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 475 mm | 510 mm | 535 mm | 555 mm | 585 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 115 mm | 135 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1036 mm | 1053 mm | 1049 mm | 1065 mm | 1081 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 747 mm | 774 mm | 801 mm | 820 mm | 844 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

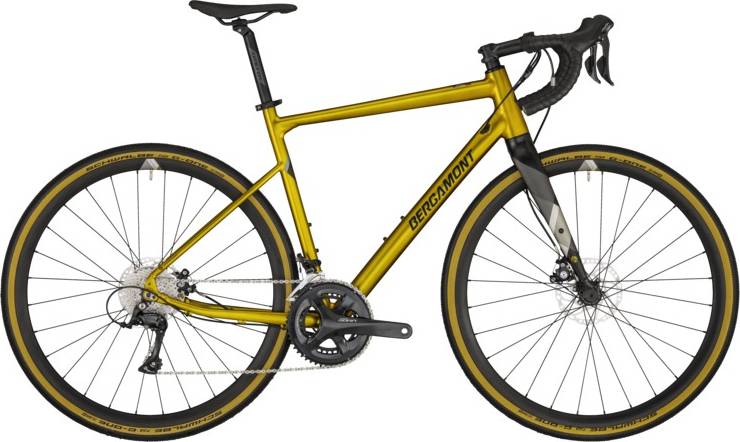

Grandurance 5 completes the Bergamont Grandurance model. 41 bikes variations carry this model name so far. Take a sneak peek at all Bergamont Grandurance bikes models from 2020, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Bergamont Grandurance 5 it’s weighing 10.9 kg (24.03 lbs). At this weight, is much heavier than average. In other words, this model is 34.07% heavier than the average Gravel bike.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
As for the wheels, Bergamont Grandurance 5 2020, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
