Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing
Suspension Fork
Suntour NEX DS, 63 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano RD-M310
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano ST-EF505, 3x8-speed, STI-shifter
Cassette
Shimano CS-HG200-8, 12-32t
Crank
Shimano FC-TY301, 48/38/28t, with chaincover
Bottom Bracket
Sealed cartridge
Chain
KMC Z8
Pedals
MTB 872 KS
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
BGM Comp X2, disc, 32h
Spokes
steel, black
Tires
Schwalbe Smart Sam, Addix, 44-622 Tubes: Schwalbe SV17A Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm
Brake Levers
Shimano ST-EF505, hydraulic disc brake
Cockpit
Stem
Syncros, clamp diameter: 31.8 mm
Handlebar
Syncros, riserbar, backsweep: 15°
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
BGM Comp, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Selle Royal Cross, lady
Seatpost
Syncros
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.58 mm | 1.64 mm | 1.67 mm |
| Front Center | 660 mm | 646 mm | 650 | 662 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 63 mm | 83 mm | 83 mm | 82 mm |
| Stack | 602 mm | 621 mm | 639 mm | 658 mm |
| Reach | 393 mm | 392 mm | 390 mm | 394 mm |
| Top Tube Length | 578 mm | 588 mm | 598 mm | 608 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1106 mm | 1092 mm | 1096 mm | 1108 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 660 mm | 668 mm | 677 mm | 684 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

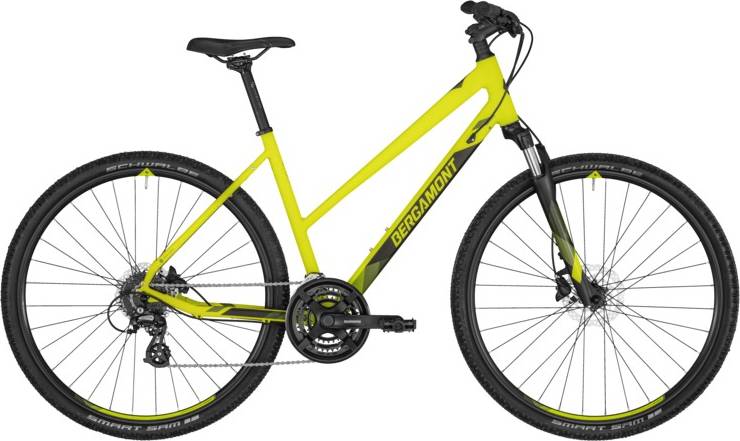

Helix 3 Lady completes the Bergamont Helix model. Bergamont released 9 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Hybrid bikes average weight
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 14.1 kg (31.09 lbs), Bergamont bike is slightly heavier than average. To sum up, it’s 1.81% heavier than the average weight of Hybrid bikes.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Helix 3 Lady are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bergamont Helix 3 Lady is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
