Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing
Suspension Fork
Suntour NEX DS, 63 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano RD-M310
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano ST-EF505, 3x8-speed, STI-shifter
Cassette
Shimano CS-HG200-8, 12-32t
Crank
Shimano FC-TY301, 48/38/28t, with chaincover
Bottom Bracket
Sealed cartridge
Chain
KMC Z8
Pedals
MTB 872 KS
Wheels
Front Hub
Shimano dynamo hub, DH-3D37, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
BGM Comp X2, disc, 32h
Spokes
steel, black
Tires
Schwalbe Smart Sam, Addix, reflective stripe, 44-622 Tubes: Schwalbe SV17A Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm
Brake Levers
Shimano ST-EF505, hydraulic disc brake
Cockpit
Stem
Syncros, clamp diameter: 31.8 mm
Handlebar
Syncros, riserbar, backsweep: 15°
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
BGM Comp, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Selle Royal Cross, gent
Seatpost
Syncros
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm | 64cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.58 mm | 1.62 mm | 1.65 mm |
| Front Center | 651 mm | 656 mm | 660 mm | 664 mm | 675 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 79 mm | 79 mm | 75 mm | 76 mm |
| Stack | 608 mm | 629 mm | 648 mm | 668 mm | 687 mm |
| Reach | 409 mm | 412 mm | 410 mm | 412 mm | 417 mm |
| Top Tube Length | 599 mm | 609 mm | 619 mm | 629 mm | 639 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 455 mm | 495 mm | 535 mm | 575 mm | 615 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1103 mm | 1108 mm | 1112 mm | 1116 mm | 1127 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 779 mm | 812 mm | 844 mm | 875 mm | 903 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

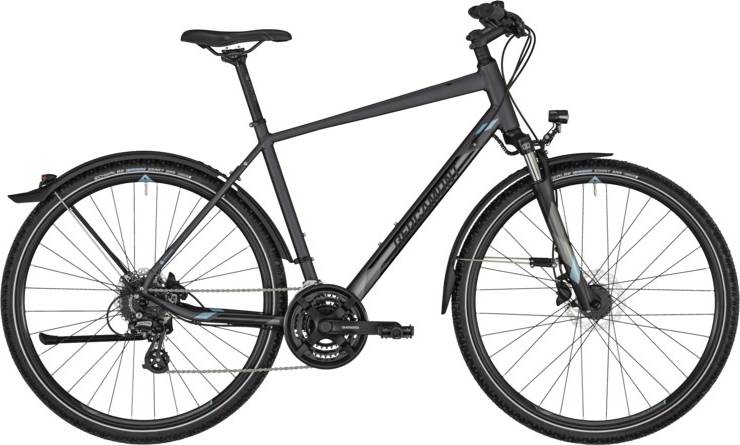

Helix 4 EQ Gent completes the Bergamont Helix model. Bergamont launched 9 bikes of this model so far. Take a sneak peek at all Bergamont Helix bikes models from 2020, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Hybrid bikes
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
considerably heavier than average, Helix 4 EQ Gent has a weight of 15.7 kg (34.61 lbs). In short, the average Hybrid bike weight is 13.36% lower than this one.
Overview of components
Fork
The Helix 4 EQ Gent comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on Helix 4 EQ Gent are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Helix 4 EQ Gent has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
