Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing
Suspension Fork
Suntour NEX DS, 63 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano RD-M310
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano ST-EF505, 3x8-speed, STI-shifter
Cassette
Shimano CS-HG200-8, 12-32t
Crank
Shimano FC-TY301, 48/38/28t, with chaincover
Bottom Bracket
Sealed cartridge
Chain
KMC Z8
Pedals
MTB 872 KS
Wheels
Front Hub
Shimano dynamo hub, DH-3D37, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
BGM Comp X2, disc, 32h
Spokes
steel, black
Tires
Schwalbe Smart Sam, Addix, reflective stripe, 44-622 Tubes: Schwalbe SV17A Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm
Brake Levers
Shimano ST-EF505, hydraulic disc brake
Cockpit
Stem
Syncros, clamp diameter: 31.8 mm
Handlebar
Syncros, riserbar, backsweep: 15°
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
BGM Comp, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Selle Royal Cross, lady
Seatpost
Syncros
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.58 mm | 1.64 mm | 1.67 mm |
| Front Center | 660 mm | 646 mm | 650 | 662 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 63 mm | 83 mm | 83 mm | 82 mm |
| Stack | 602 mm | 621 mm | 639 mm | 658 mm |
| Reach | 393 mm | 392 mm | 390 mm | 394 mm |
| Top Tube Length | 578 mm | 588 mm | 598 mm | 608 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1106 mm | 1092 mm | 1096 mm | 1108 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 660 mm | 668 mm | 677 mm | 684 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

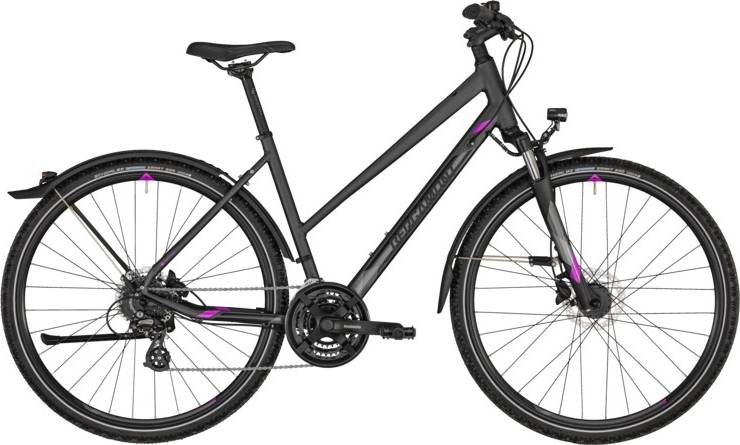

Helix 4 EQ Lady is a Bergamont Helix model. Bergamont launched 9 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid bikes average price
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Hybrid bikes average weight
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 15.5 kg (34.17 lbs), the Helix 4 EQ Lady model is considerably heavier than average. In short, the average Hybrid bike weight is 11.91% lower than this one.
Helix 4 EQ Lady components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on Helix 4 EQ Lady are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Helix 4 EQ Lady comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
