Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing
Suspension Fork
Suntour NEX P, 63 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano RD-M310
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano ST-EF500, 3x8-speed, STI-shifter
Cassette
Shimano CS-HG200-8, 12-32t
Crank
Shimano FC-TY301, 48/38/28t, with chaincover
Bottom Bracket
Sealed cartridge
Chain
KMC Z8
Pedals
Trekking KS
Wheels
Front Hub
Shimano dynamo hub, DH-C3000
Rear Hub
Shimano, quick release
Rims
BGM Comp X2, CNC-Side, 32h
Spokes
steel, black
Tires
Schwalbe Road Cruiser, Kevlarguard, reflective stripe, 42-622 Tubes: Schwalbe AV17A Light
Brakes
Brakes
Tektro V-Brake
Brake Levers
Shimano ST-EF500-8
Cockpit
Stem
BGM Comp, Vario, clamp diameter: 25.4 mm
Handlebar
BGM Comp, riserbar, backsweep: 33°
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
BGM Comp, threaded, semi-integrated, 1 1/8"
Seat
Saddle
Selle Royal Milo, lady
Seatpost
Post Moderne PM-780E, suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.58 mm | 1.64 mm | 1.67 mm |
| Front Center | 660 mm | 646 mm | 650 | 662 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 63 mm | 83 mm | 83 mm | 82 mm |
| Stack | 602 mm | 621 mm | 639 mm | 658 mm |
| Reach | 393 mm | 392 mm | 390 mm | 394 mm |
| Top Tube Length | 578 mm | 588 mm | 598 mm | 608 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1106 mm | 1092 mm | 1096 mm | 1108 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 660 mm | 668 mm | 677 mm | 684 mm |
| Wheels | 700 | 700 | 700 | 700 |

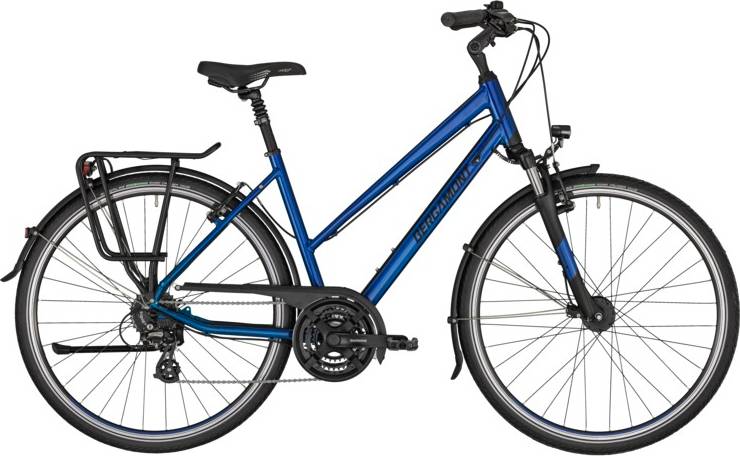

About this model
Horizon 3 Lady is part of the Bergamont Horizon model. Bergamont launched 99 bikes of this model so far. You can easily view all of the Bergamont Horizon bikes models from 2020, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter bikes
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Commuter bikes
Commuter bikes have an average weight of 14.29 kg (31.5 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Horizon 3 Lady weighs 16.8 kg (37.04 lbs) and is much heavier than the average. In other words, this model is 17.56% heavier than the average Commuter bike.
Horizon 3 Lady components
Fork
The Horizon 3 Lady comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Bergamont Horizon 3 Lady 2020, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Horizon 3 Lady comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
