Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing
Suspension Fork
Suntour NEX HLO DS, 63 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano Deore, RD-M592
Front Derailleur
Shimano FD-M370
Shift Levers
Shimano SL-M2010, 3x9-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG200-9, 11-32t
Crank
Shimano FC-T3010, 48/36/26t, with chaincover
Bottom Bracket
Shimano BB-UN101, BSA
Chain
KMC X9
Pedals
Trekking alloy
Wheels
Front Hub
Shimano dynamo hub, DH-3D37, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
BGM Pro X15, disc, 32h
Spokes
steel, black
Tires
Schwalbe Road Cruiser, Kevlarguard, reflective stripe, 42-622 Tubes: Schwalbe SV17A Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Comp, Vario, clamp diameter: 25.4 mm
Handlebar
BGM Comp, riserbar, backsweep: 33°
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
BGM Comp, threaded, semi-integrated, 1 1/8"
Seat
Saddle
Ergon ST10
Seatpost
Post Moderne PM-780E, suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.59 mm | 1.59 mm | 1.61 mm |
| Front Center | 641 mm | 646 mm | 652 mm | 652 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 82 mm | 81 mm | 81 mm |
| Stack | 630 mm | 634 mm | 639 mm | 644 mm |
| Reach | 394 mm | 398 mm | 401 mm | 399 mm |
| Top Tube Length | 591 mm | 596 mm | 601 mm | 606 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 150 mm | 155 mm | 160 mm | 165 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1095 mm | 1100 mm | 1106 mm | 1106 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 517 mm | 515 mm | 512 mm | 514 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

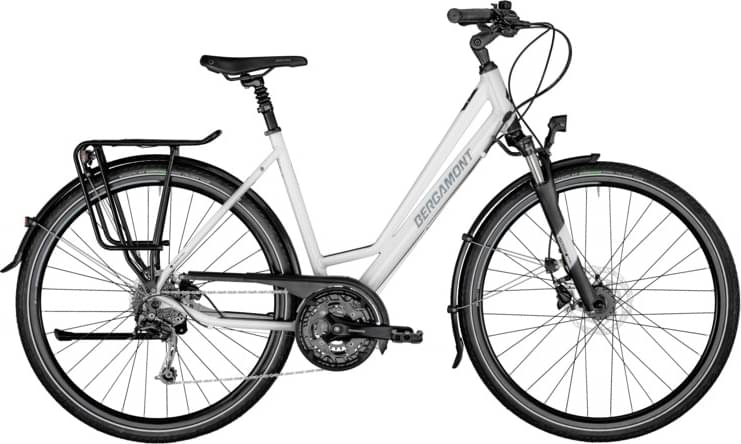

Horizon 6 Amsterdam completes the Bergamont Horizon model. 99 bikes variations carry this model name so far. You can easily view all of the Bergamont Horizon bikes models from 2021, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter bikes average price
According to our math, the average price for a trustworthy Commuter bike is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Commuter bikes average weight
If we make a quick analysis of the average weight of a Commuter bike, we get 14.29 kg (31.5 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 17.5 kg (38.58 lbs), Bergamont bike is much heavier than average. In short, the average Commuter bike weight is 22.46% lower than this one.
Horizon 6 Amsterdam components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Horizon 6 Amsterdam are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Horizon 6 Amsterdam has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
