Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NRX D
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing
Suspension Fork
Suntour NRX D, LO, 63 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-T8000, Shadow
Front Derailleur
Shimano Deore, FD-T6000
Shift Levers
Shimano Deore, SL-T6000, 3x10-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG500, 11-32t
Crank
Shimano FC-T521, 48/36/26t, with chaincover
Bottom Bracket
Shimano BB-ES300, octalink
Chain
KMC X10
Pedals
Trekking alloy
Wheels
Front Hub
Shimano dynamo hub, DH-3D37, centerlock, disc, quick release
Rear Hub
Shimano FH-M4050, centerlock, disc, quick release
Rims
BGM Pro X15, disc, 32h
Spokes
stainless, black
Tires
Schwalbe Marathon Racer, Raceguard, reflective stripe, 40-622 Tubes: Schwalbe SV17A Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Pro, multiposition 10°/25°, clamp diameter: 31.8 mm
Handlebar
BGM Pro, riserbar, backsweep: 15°
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
BGM Comp, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Ergon ST10
Seatpost
Post Moderne PM-780E, suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.65 mm | 1.68 mm |
| Front Center | 641 mm | 646 mm | 651 mm | 662 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 83 mm | 82 mm | 82 mm | 82 mm |
| Stack | 605 mm | 623 mm | 642 mm | 661 mm |
| Reach | 393 mm | 391 mm | 389 mm | 393 mm |
| Top Tube Length | 578 mm | 588 mm | 598 mm | 608 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1087 mm | 1092 mm | 1097 mm | 1108 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 686 mm | 692 mm | 701 mm | 710 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview

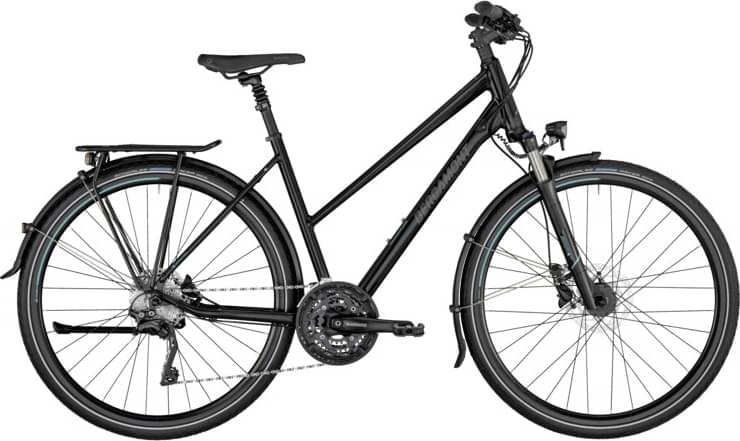

Horizon 7 Lady completes the Bergamont Horizon model. Bergamont launched 99 bikes of this model so far. Take a sneak peek at all Bergamont Horizon bikes models from 2021, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter bikes
According to our math, the average price for a trustworthy Commuter bike is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Commuter bikes average weight
Commuter bikes have an average weight of 14.29 kg (31.5 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, Horizon 7 Lady has a weight of 15.6 kg (34.39 lbs). To sum up, it’s 9.17% heavier than the average weight of Commuter bikes.
Overview of components
Fork
The fork installed on this bike is the SunTour NRX D model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the Horizon 7 Lady bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Horizon 7 Lady has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
