Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NRX D
-
Groupset XT -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing
Suspension Fork
Suntour NRX D Air LO, 63 mm, lockout
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-T8000, Shadow
Front Derailleur
Shimano Deore XT, FD-T8000
Shift Levers
Shimano Deore XT, SL-T8000, 3x10-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG50, 11-36t
Crank
Shimano Deore XT, FC-T8000, 48/36/26t, with chaincover
Bottom Bracket
Shimano BB-MT800, BSA
Chain
Shimano CN-HG54
Pedals
Trekking alloy
Wheels
Front Hub
Shutter Precision dynamo hub, SP PL-8, centerlock, disc, quick release
Rear Hub
Shimano Deore XT, FH-M8000, centerlock, disc, quick release
Rims
BGM Pro X15, disc, 32h
Spokes
stainless, black
Tires
Schwalbe Marathon Racer, Raceguard, reflective stripe, 40-622 Tubes: Schwalbe SV17A Light
Brakes
Brakes
Shimano Deore, BR-M6000, hydraulic disc brake, SM-RT54 rotor: 180/160 mm
Brake Levers
Shimano Deore, BL-T6000, hydraulic disc brake
Cockpit
Stem
BGM Pro, multiposition 10°/25°, clamp diameter: 31.8 mm
Handlebar
BGM Pro, riserbar, backsweep: 15°
Grips
Ergon GP10
Headset
BGM Comp, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Ergon ST10
Seatpost
Post Moderne PM-780E, suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.65 mm | 1.68 mm |
| Front Center | 641 mm | 646 mm | 651 mm | 662 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 83 mm | 82 mm | 82 mm | 82 mm |
| Stack | 605 mm | 623 mm | 642 mm | 661 mm |
| Reach | 393 mm | 391 mm | 389 mm | 393 mm |
| Top Tube Length | 578 mm | 588 mm | 598 mm | 608 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1087 mm | 1092 mm | 1097 mm | 1108 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 686 mm | 692 mm | 701 mm | 710 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

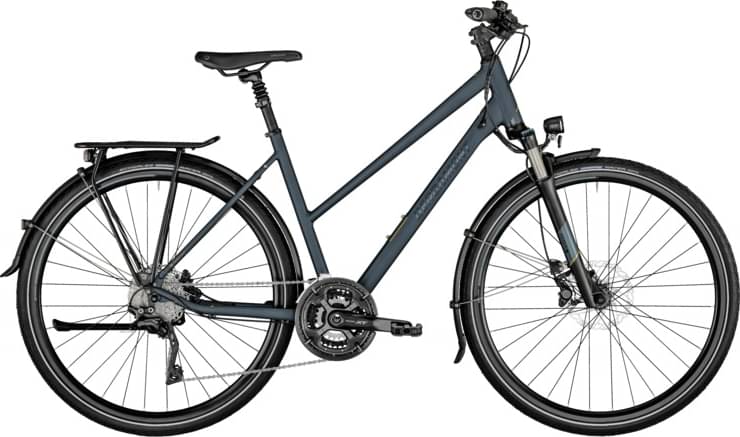

Horizon 9 Lady belongs to the Bergamont Horizon model. 99 bikes variations carry this model name so far. Take a sneak peek at all Bergamont Horizon bikes models from 2021, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter bikes average price
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Commuter bikes average weight
On a deeper look, we notice that the average weight of a Commuter bike is 14.29 kg (31.5 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 14.9 kg (32.85 lbs), Bergamont bike is slightly heavier than average. In short, the average Commuter bike weight is 4.27% lower than this one.
Overview of components
Fork
The SunTour NRX D is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Horizon 9 Lady are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bergamont Horizon 9 Lady is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
