Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" (27.5"), lite AL-6061 tubing
Suspension Fork
Zoom 565 disc, 100 mm
Drivetrain
Rear Derailleur
Shimano RD-TY300
Front Derailleur
Shimano FD-TY500
Shift Levers
Shimano ST-EF500, 3x7-speed, STI-shifter
Cassette
Shimano CS-HG200-7, 12-32t
Crank
Shimano FC-TY301, 42/34/24t
Bottom Bracket
Shimano BB-UN100
Chain
KMC Z7
Pedals
Wellgo LU895
Wheels
Front Hub
BGM Comp, 6-bolt, disc, quick release
Rear Hub
BGM Comp, 6-bolt, disc, quick release
Rims
Shining DB29, disc
Spokes
stainless, black
Tires
Impac SmartPac, Kevlarguard, 29x2.10" (27.5x2.10") Tubes: Impac SV29 / SV27
Brakes
Brakes
Tektro MD-M280, mechanical disc brake, rotor: 160/160 mm
Brake Levers
Shimano ST-EF500
Cockpit
Stem
Syncros 3.0, +/-6°
Handlebar
Syncros 3.0, riserbar, width: 700 mm
Grips
Syncros MTB
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros M3.0
Seatpost
Syncros 3.0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS7 | S7 | M7 | M9 | L9 | XL9 | XXL9 |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.53 mm | 1.58 mm | 1.56 mm | 1.57 mm | 1.58 mm |
| Bottom Bracket Height | 298 mm | 298 mm | 303 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 649 mm | 655 mm | 665 mm | 666 mm | 676 mm | 680 mm | 685 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 96 mm | 90 mm | 89 mm | 80 mm | 78 mm | 74 mm | 74 mm |
| Stack | 590 mm | 606 mm | 613 mm | 632 mm | 644 mm | 655 mm | 665 mm |
| Reach | 384 mm | 388 mm | 401 mm | 401 mm | 413 mm | 418 mm | 420 mm |
| Top Tube Length | 549 mm | 564 mm | 584 mm | 584 mm | 599 mm | 614 mm | 619 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 360 mm | 400 mm | 445 mm | 445 mm | 480 mm | 525 mm | 565 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69.5 ° | 70 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1067 mm | 1073 mm | 1084 mm | 1101 mm | 1111 mm | 1115 mm | 1120 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 52 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 713 mm | 719 mm | 754 mm | 756 mm | 775 mm | 809 mm | 835 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" |

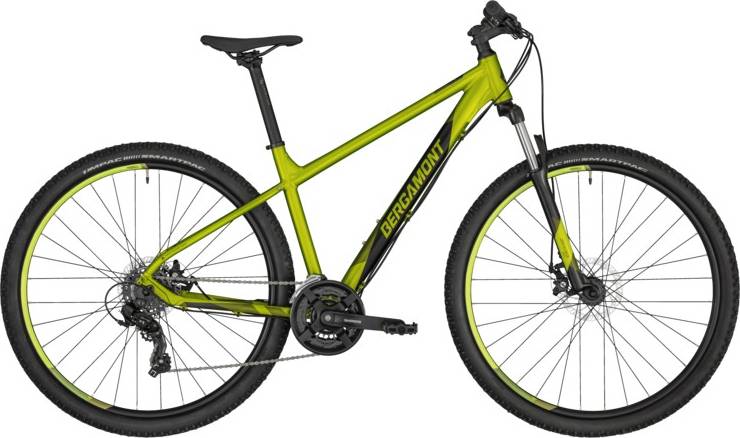

Model Overview
Revox 2 lime belongs to the Bergamont Revox model. Bergamont launched 120 bikes of this model so far. You can easily view all of the Bergamont Revox bikes models from 2020, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Bergamont Revox 2 lime it’s weighing 14.2 kg (31.31 lbs). At this weight, is considerably heavier than average. To sum up, it’s 14.52% heavier than the average weight of Crosscountry bikes.
Revox 2 lime components
Wheels size
The wheels on Revox 2 lime are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revox 2 lime comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
