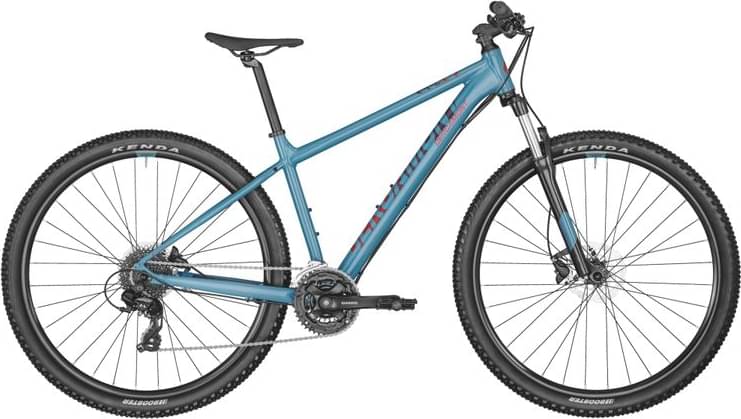

Bergamont Revox 3 blue 2022
2022 Mountain
Estimate price |
802$
Weight | 14.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" (27.5"), lite AL-6061 tubing
Suspension Fork
Suntour XCE28 DS, 100 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano RD-TX800
Front Derailleur
Shimano FD-TY700
Shift Levers
Shimano SL-M315, 3x8-speed, rapidfire-plus-shifter
Cassette
Sunrace CS-M55, 11-34t
Crank
Shimano FC-TY501, 42/34/24t
Bottom Bracket
Sealed cartridge, BSA
Chain
KMC Z8
Pedals
Feimin FP-803
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Alex X20, disc, width: 20 mm
Spokes
steel, black
Tires
Kenda Booster, 29x2.40" (27.5x2.40") Tube: Impac SV29
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Disk Rotors
Shimano SM-RT10, 160 mm
Cockpit
Stem
BGM Comp, +/-6°
Handlebar
BGM Comp, riserbar, width: 700 mm
Grips
Syncros MTB
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Tofino 2.5
Seatpost
BGM Comp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS7 | S7 | M7 | M9 | L9 | XL9 | XXL9 |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.48 mm | 1.46 mm | 1.48 mm | 1.46 mm | 1.44 mm | 1.42 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 660 mm | 676 mm | 692 mm | 693 mm | 709 mm | 725 mm | 746 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Stack | 591 mm | 605 mm | 615 mm | 623 mm | 632 mm | 641 mm | 655 mm |
| Reach | 398 mm | 410 mm | 422 mm | 420 mm | 432 mm | 445 mm | 460 mm |
| Top Tube Length | 574 mm | 589 mm | 604 mm | 604 mm | 619 mm | 634 mm | 654 mm |
| Seat Tube Length | 360 mm | 405 mm | 445 mm | 445 mm | 485 mm | 525 mm | 565 mm |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1083 mm | 1099 mm | 1115 mm | 1136 mm | 1152 mm | 1168 mm | 1189 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 694 mm | 728 mm | 756 mm | 765 mm | 792 mm | 819 mm | 848 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
Revox 3 blue is a Bergamont Revox model. Bergamont released 120 bikes variations of this model so far. You can easily view all of the Bergamont Revox bikes models from 2022, here.
Model range prices
Bergamont Revox 24 Girl 2022 is the cheapest bike model and costs 530$. Bergamont Revox 8 2022 is the most expensive one and costs 1485$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Bergamont released this model in 2022, its price was 742$. If we compare this with the average Crosscountry bike cost we notice that the price is 156.74% lower.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Bergamont Revox 3 blue it’s weighing 14.6 kg (32.19 lbs). At this weight, is much heavier than average. In other words, this model is 17.74% heavier than the average Crosscountry bike.
Overview of components
Fork
The Revox 3 blue comes factory-installed with the Suntour fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Revox 3 blue 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bergamont Revox 3 blue is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
