Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" (27.5"), lite AL-6061 tubing
Suspension Fork
Suntour XCE28 DS, 100 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano RD-TX800
Front Derailleur
Shimano FD-TY700
Shift Levers
Shimano SL-M315, 3x8-speed, rapidfire-plus-shifter
Cassette
Sunrace CS-M55, 11-34t
Crank
Shimano FC-TY501, 42/34/24t
Bottom Bracket
Sealed cartridge, BSA
Chain
KMC Z8
Pedals
Wellgo LU895
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Shining DB-M30, disc, width: 24 mm
Spokes
steel, black
Tires
Kenda Booster, 29x2.40" (27.5x2.40") Tubes: Impac SV29 / SV27
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Comp, +/-6°
Handlebar
BGM Comp, riserbar, width: 660 mm
Grips
Syncros MTB
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Savona 2.5
Seatpost
BGM Comp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS7 | S7 | M7 | M9 | L9 | XL9 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.53 mm | 1.57 mm | 1.56 mm | 1.57 mm |
| Bottom Bracket Height | 298 mm | 298 mm | 303 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 649 mm | 655 mm | 665 mm | 666 mm | 676 mm | 680 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Trail | 95 mm | 90 mm | 88 mm | 80 mm | 76 mm | 74 mm |
| Stack | 590 mm | 606 mm | 613 mm | 631 mm | 643 mm | 655 mm |
| Reach | 383 mm | 388 mm | 400 mm | 401 mm | 412 mm | 418 mm |
| Top Tube Length | 549 mm | 564 mm | 584 mm | 584 mm | 599 mm | 614 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 360 mm | 400 mm | 445 mm | 445 mm | 480 mm | 525 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1067 mm | 1073 mm | 1084 mm | 1101 mm | 1111 mm | 1115 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 52 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 686 mm | 686 mm | 720 mm | 717 mm | 734 mm | 769 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview

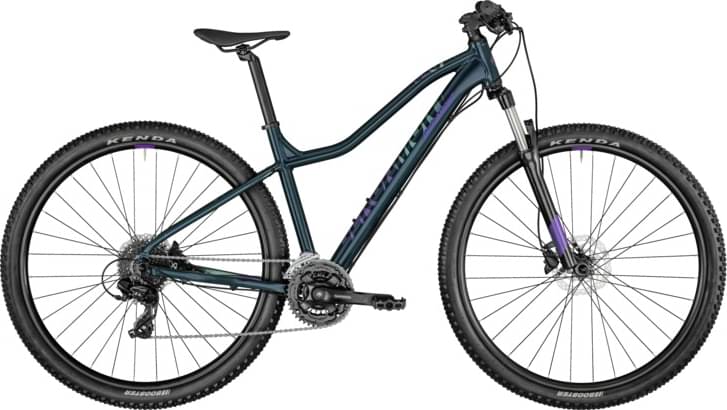

Revox 3 FMN completes the Bergamont Revox model. Bergamont released 120 bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Bergamont Revox 3 FMN it’s weighing 14.4 kg (31.75 lbs). At this weight, is much heavier than average. To sum up, it’s 16.13% heavier than the average weight of Crosscountry bikes.
Revox 3 FMN components
Fork
The SunTour is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the Revox 3 FMN bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bergamont Revox 3 FMN is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
