Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" (27.5"), lite AL-6061 tubing
Suspension Fork
Suntour XCT-ATB DS, 100 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano RD-TX800
Front Derailleur
Shimano FD-TY700
Shift Levers
Shimano ST-EF505, 3x8-speed, STI-shifter
Cassette
Sunrace CS-M55, 11-34t
Crank
Shimano FC-TY301, 42/34/24t
Bottom Bracket
Shimano BB-UN101, BSA
Chain
KMC Z8
Pedals
Wellgo LU895
Wheels
Front Hub
Shimano dynamo hub, DH-3D37, centerlock, disc
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Alex X20, disc, width: 20 mm
Spokes
steel, black
Tires
Impac Smartpac, Reflex, 29x2.10" (27.5x2.10") Tubes: Impac SV29 / SV27
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Syncros 3.0, +/-6°
Handlebar
Syncros 3.0, riserbar, width: 660 mm
Grips
Syncros MTB
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Savona 2.5
Seatpost
Syncros 3.0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS7 | S7 | M7 | M9 | L9 | XL9 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.53 mm | 1.57 mm | 1.56 mm | 1.57 mm |
| Bottom Bracket Height | 298 mm | 298 mm | 303 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 649 mm | 655 mm | 665 mm | 666 mm | 676 mm | 680 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Trail | 95 mm | 90 mm | 88 mm | 80 mm | 76 mm | 74 mm |
| Stack | 590 mm | 606 mm | 613 mm | 631 mm | 643 mm | 655 mm |
| Reach | 383 mm | 388 mm | 400 mm | 401 mm | 412 mm | 418 mm |
| Top Tube Length | 549 mm | 564 mm | 584 mm | 584 mm | 599 mm | 614 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 360 mm | 400 mm | 445 mm | 445 mm | 480 mm | 525 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1067 mm | 1073 mm | 1084 mm | 1101 mm | 1111 mm | 1115 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 52 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 686 mm | 686 mm | 720 mm | 717 mm | 734 mm | 769 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
About this model

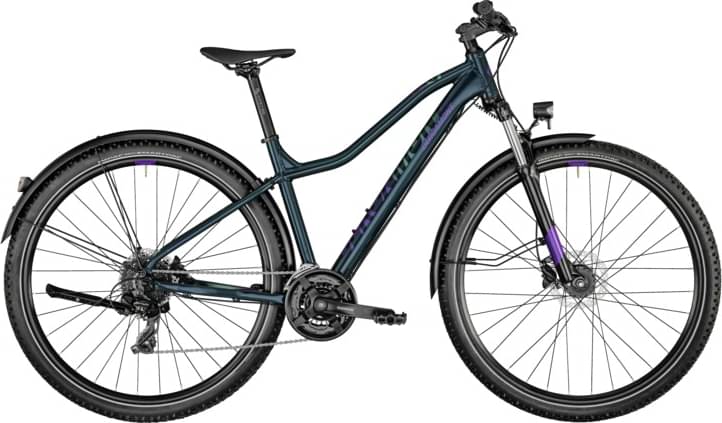

Revox 3 FMN EQ completes the Bergamont Revox model. 120 bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Revox 3 FMN EQ weighs 16.1 kg (35.49 lbs) and is much heavier than the average. In short, the average Crosscountry bike weight is 29.84% lower than this one.
Overview of components
Fork
Bergamont Revox 3 FMN EQ 2021 bike is equipped with the SunTour XCT fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Revox 3 FMN EQ 2021 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Bergamont Revox 3 FMN EQ has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
