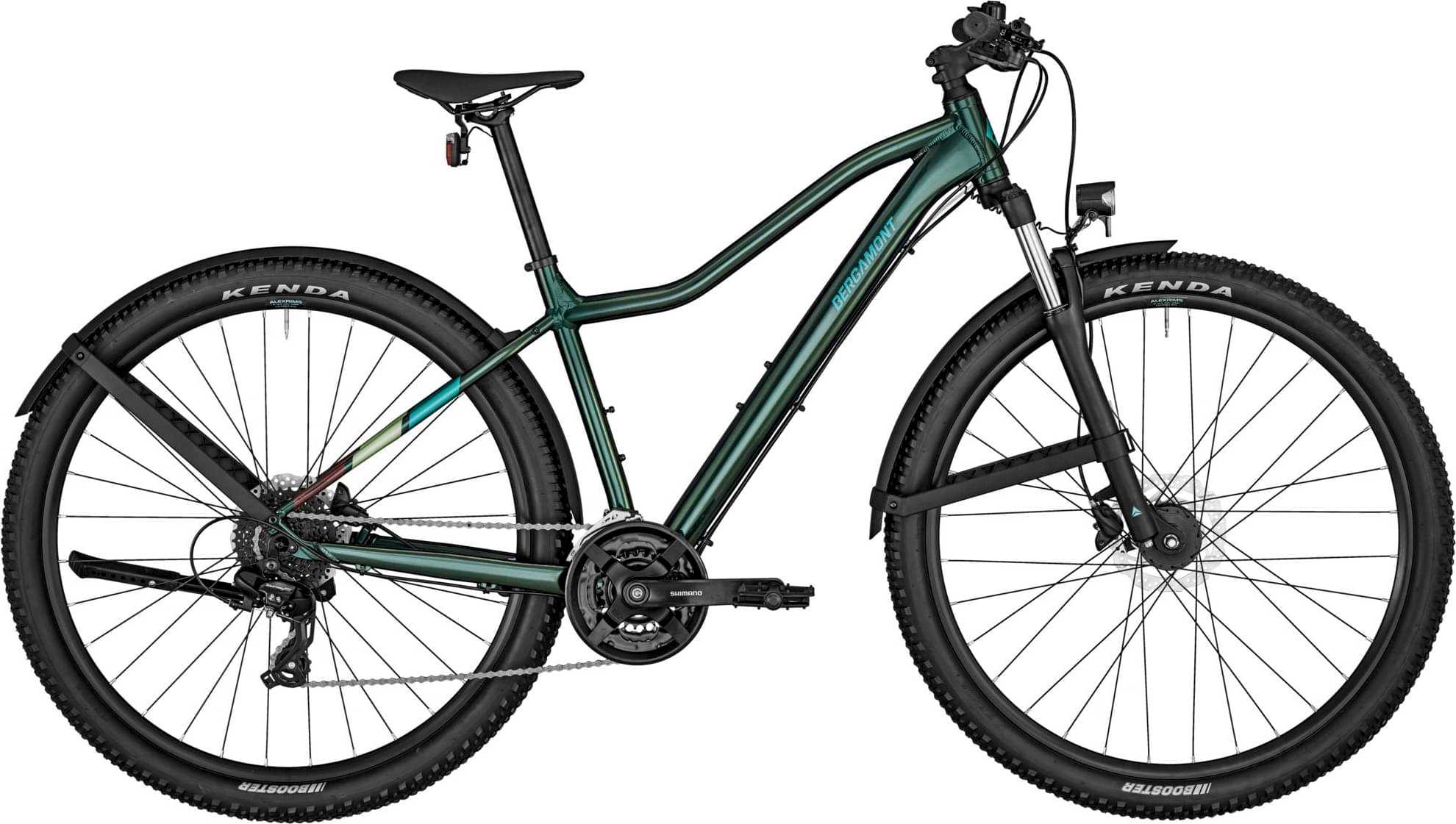

Bergamont Revox 3 FMN EQ 2023
2023 Mountain
Estimate price |
1,002$
Weight | 16.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" (27.5"), lite AL-6061 tubing
Suspension Fork
Suntour XCE28 DS, 100 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano RD-TX800
Front Derailleur
Shimano FD-TY700
Shift Levers
Shimano SL-M315, 3x8-speed, rapidfire-plus-shifter
Cassette
Sunrace CS-M55, 11-34t
Crank
Shimano FC-TY301, 42/34/24t
Bottom Bracket
Shimano BB-UN101, BSA
Chain
KMC Z8
Pedals
Feimin FP-803
Wheels
Front Hub
Shimano dynamo hub, DH-3D37, centerlock, disc
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Alex X20, disc, width: 20 mm
Spokes
steel, black
Tires
Front: Kenda Booster, 29x2.40" (27.5x2.40") Tube: Maxxis SV29, Rear: Kenda Booster, 29x2.40" (27.5x2.40") Tube: Maxxis SV29
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Comp, +/-6°
Handlebar
BGM Comp, riserbar, width: 660 mm
Grips
Syncros MTB
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Savona 2.5
Seatpost
BGM Comp-E
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS7 | S7 | M7 | M9 | L9 | XL9 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.48 mm | 1.46 mm | 1.48 mm | 1.46 mm | 1.44 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 660 mm | 676 mm | 692 mm | 693 mm | 709 mm | 725 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Stack | 591 mm | 605 mm | 615 mm | 623 mm | 632 mm | 641 mm |
| Reach | 398 mm | 410 mm | 422 mm | 420 mm | 432 mm | 445 mm |
| Top Tube Length | 574 mm | 589 mm | 604 mm | 604 mm | 619 mm | 634 mm |
| Seat Tube Length | 360 mm | 405 mm | 445 mm | 445 mm | 485 mm | 525 mm |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1083 mm | 1099 mm | 1115 mm | 1136 mm | 1152 mm | 1168 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 656 mm | 690 mm | 717 mm | 725 mm | 750 mm | 780 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
Revox 3 FMN EQ completes the Bergamont Revox model. There are 120 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Bergamont Revox 24 2023 is the most economical model, with a starting price of 546$. Bergamont Revox 8 2023 on the other hand costs 1458$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Bergamont Revox 3 FMN EQ price was 911$. In conclusion, this bike price is 109.11% lower than the price of the average Crosscountry bike.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Bergamont Revox 3 FMN EQ it’s weighing 16.5 kg (36.38 lbs). At this weight, is much heavier than average. In conclusion, the average Crosscountry bike weighs 33.06% less than Revox 3 FMN EQ.
Revox 3 FMN EQ components
Fork
Bergamont Revox 3 FMN EQ 2023 bike is equipped with the Suntour XCE fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Revox 3 FMN EQ model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bergamont Revox 3 FMN EQ is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
