Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" (27.5"), lite AL-6061 tubing
Suspension Fork
Suntour XCT DS, 100 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano RD-M370
Front Derailleur
Shimano FD-TY700
Shift Levers
Shimano ST-EF505, 3x8-speed, STI-shifter
Cassette
Shimano CS-HG200-8, 12-32t
Crank
Shimano FC-TY501, 42/34/24t
Bottom Bracket
Shimano BB-UN100
Chain
KMC Z8
Pedals
Wellgo LU895
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Shining DB29, disc
Spokes
stainless, black
Tires
Impac SmartPac, Kevlarguard, 29x2.10" (27.5x2.10") Tubes: Impac SV29 / SV27
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm
Brake Levers
Shimano ST-EF505, hydraulic disc brake
Cockpit
Stem
Syncros 3.0, +/-6°
Handlebar
Syncros 3.0, riserbar, width: 700 mm
Grips
Syncros MTB
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros M3.0
Seatpost
Syncros 3.0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS7 | S7 | M7 | M9 | L9 | XL9 | XXL9 |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.53 mm | 1.58 mm | 1.56 mm | 1.57 mm | 1.58 mm |
| Bottom Bracket Height | 298 mm | 298 mm | 303 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 649 mm | 655 mm | 665 mm | 666 mm | 676 mm | 680 mm | 685 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 96 mm | 90 mm | 89 mm | 80 mm | 78 mm | 74 mm | 74 mm |
| Stack | 590 mm | 606 mm | 613 mm | 632 mm | 644 mm | 655 mm | 665 mm |
| Reach | 384 mm | 388 mm | 401 mm | 401 mm | 413 mm | 418 mm | 420 mm |
| Top Tube Length | 549 mm | 564 mm | 584 mm | 584 mm | 599 mm | 614 mm | 619 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 360 mm | 400 mm | 445 mm | 445 mm | 480 mm | 525 mm | 565 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69.5 ° | 70 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1067 mm | 1073 mm | 1084 mm | 1101 mm | 1111 mm | 1115 mm | 1120 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 52 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 713 mm | 719 mm | 754 mm | 756 mm | 775 mm | 809 mm | 835 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model

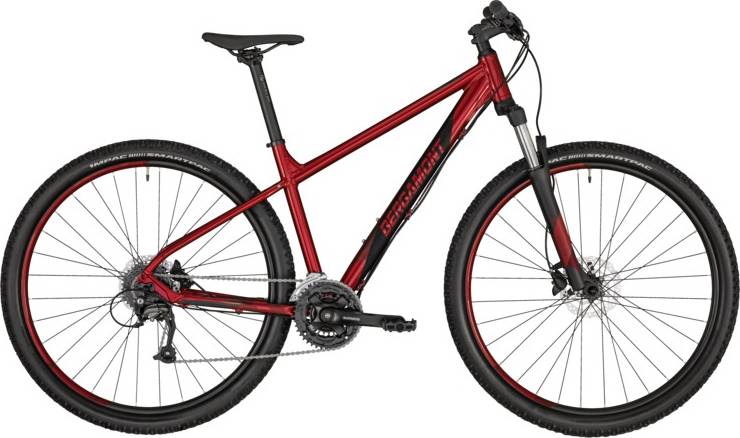

Revox 3 red is part of the Bergamont Revox model. Bergamont launched 120 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 14.7 kg (32.41 lbs), the Revox 3 red model is much heavier than average. In other words, this model is 18.55% heavier than the average Crosscountry bike.
Overview of components
Fork
Bergamont Revox 3 red 2020 bike is equipped with the SunTour XCT fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The Revox 3 red 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
