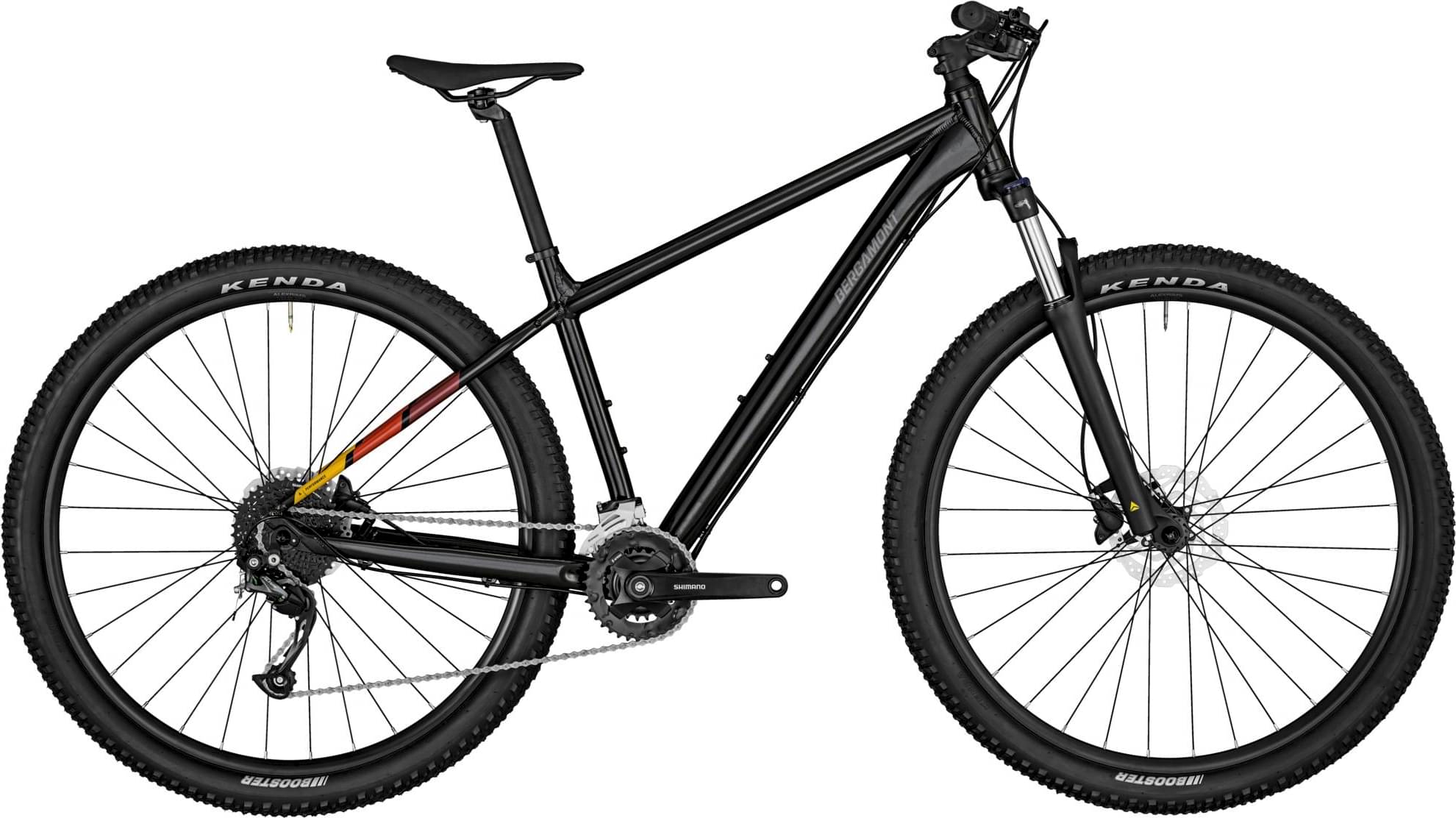

Bergamont Revox 4 2023
2023 Mountain
Estimate price |
935$
Weight | 14.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" (27.5"), lite AL-6061 tubing
Suspension Fork
Suntour XCT30 HLO DS, 100 mm
Drivetrain
Rear Derailleur
Shimano RD-M2000, Shadow
Front Derailleur
Shimano FD-M2020
Shift Levers
Shimano SL-M2010, 2x9-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG200-9, 11-36t
Crank
Shimano FC-MT101, 36/22t
Bottom Bracket
Shimano BB-UN101, BSA
Chain
KMC X9
Pedals
Feimin FP-803
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Alex X20, disc, width: 20 mm
Spokes
steel, black
Tires
Front: Kenda Booster, 29x2.40" (27.5x2.40") Tube: Maxxis SV29 (29"), Rear: Kenda Booster, 29x2.40" (27.5x2.40") Tube: Maxxis SV29 (29")
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Comp, +/-6°
Handlebar
BGM Comp, riserbar, width: 700 mm
Grips
Syncros MTB
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Tofino 2.5
Seatpost
BGM Comp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS7 | S7 | M7 | M9 | L9 | XL9 | XXL9 |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.48 mm | 1.46 mm | 1.48 mm | 1.46 mm | 1.44 mm | 1.42 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 660 mm | 676 mm | 692 mm | 693 mm | 709 mm | 725 mm | 746 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Stack | 591 mm | 605 mm | 615 mm | 623 mm | 632 mm | 641 mm | 655 mm |
| Reach | 398 mm | 410 mm | 422 mm | 420 mm | 432 mm | 445 mm | 460 mm |
| Top Tube Length | 574 mm | 589 mm | 604 mm | 604 mm | 619 mm | 634 mm | 654 mm |
| Seat Tube Length | 360 mm | 405 mm | 445 mm | 445 mm | 485 mm | 525 mm | 565 mm |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1083 mm | 1099 mm | 1115 mm | 1136 mm | 1152 mm | 1168 mm | 1189 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 694 mm | 728 mm | 756 mm | 765 mm | 792 mm | 819 mm | 848 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Revox 4 is part of the Bergamont Revox model. Bergamont launched 120 bikes of this model so far. Take a sneak peek at all Bergamont Revox bikes models from 2023, by clicking here.
Model range prices
Bergamont Revox 24 2023 is the most economical model, with a starting price of 546$. Bergamont Revox 8 2023 on the other hand costs 1458$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Bergamont Revox 4 price was 850$. Comparing the average cost of a Crosscountry bike to this one, you will see that Revox 4 price is 124.12% smaller.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 14.7 kg (32.41 lbs), the Revox 4 model is much heavier than average. To sum up, it’s 18.55% heavier than the average weight of Crosscountry bikes.
Revox 4 components
Fork
The fork installed on this bike is the Suntour XCT model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Revox 4 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
