Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" (27.5"), ultra lite AL-6061 tubing
Suspension Fork
Suntour XCM RL DS, 100 mm
Drivetrain
Rear Derailleur
Shimano Deore, RD-M592, Shadow
Front Derailleur
Shimano FD-M4000
Shift Levers
Shimano SL-M4000, 3x9-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG201-9, 11-36t
Crank
Shimano FC-MT300, 40/30/22t
Bottom Bracket
Shimano Hollowtech II, BSA
Chain
KMC X9
Pedals
Wellgo LU895
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Shining DB29, disc
Spokes
stainless, black
Tires
Schwalbe Smart Sam, Kevlarguard, 29x2.10" (27.5x2.10") Tubes: Schwalbe SV19B Light (29") / SV21B Light (27.5")
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Syncros 3.0, +/-6°
Handlebar
Syncros 3.0, riserbar, width: 700 mm
Grips
Syncros MTB
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros M3.0
Seatpost
Syncros 3.0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS7 | S7 | M7 | M9 | L9 | XL9 | XXL9 |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.53 mm | 1.49 mm | 1.61 mm | 1.58 mm | 1.56 mm | 1.6 mm |
| Bottom Bracket Height | 300 mm | 303 mm | 303 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 628 mm | 644 mm | 659 mm | 649 mm | 664 mm | 679 mm | 673 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 88 mm | 87 mm | 85 mm | 73 mm | 74 mm | 74 mm | 70 mm |
| Stack | 590 mm | 591 mm | 603 mm | 633 mm | 642 mm | 652 mm | 664 mm |
| Reach | 372 mm | 387 mm | 404 mm | 394 mm | 407 mm | 419 mm | 414 mm |
| Top Tube Length | 549 mm | 564 mm | 584 mm | 584 mm | 599 mm | 614 mm | 619 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 360 mm | 400 mm | 445 mm | 445 mm | 480 mm | 525 mm | 565 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 71 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1046 mm | 1063 mm | 1078 mm | 1074 mm | 1089 mm | 1104 mm | 1098 mm |
| Bottom Bracket Drop | 55 mm | 52 mm | 52 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 715 mm | 730 mm | 754 mm | 759 mm | 777 mm | 807 mm | 836 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview

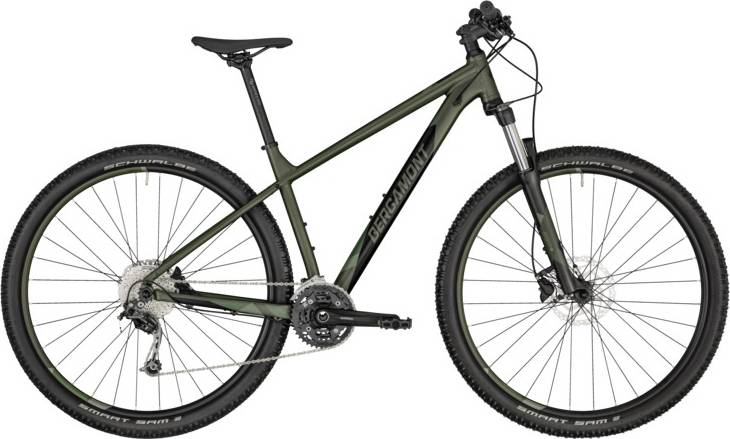

Revox 5 is a Bergamont Revox model. 120 bikes variations carry this model name so far. Take a sneak peek at all Bergamont Revox bikes models from 2020, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
considerably heavier than average, Revox 5 has a weight of 14.2 kg (31.31 lbs). In other words, this model is 14.52% heavier than the average Crosscountry bike.
Revox 5 components
Fork
This bike has the SunTour XCM fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Revox 5 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bergamont Revox 5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
