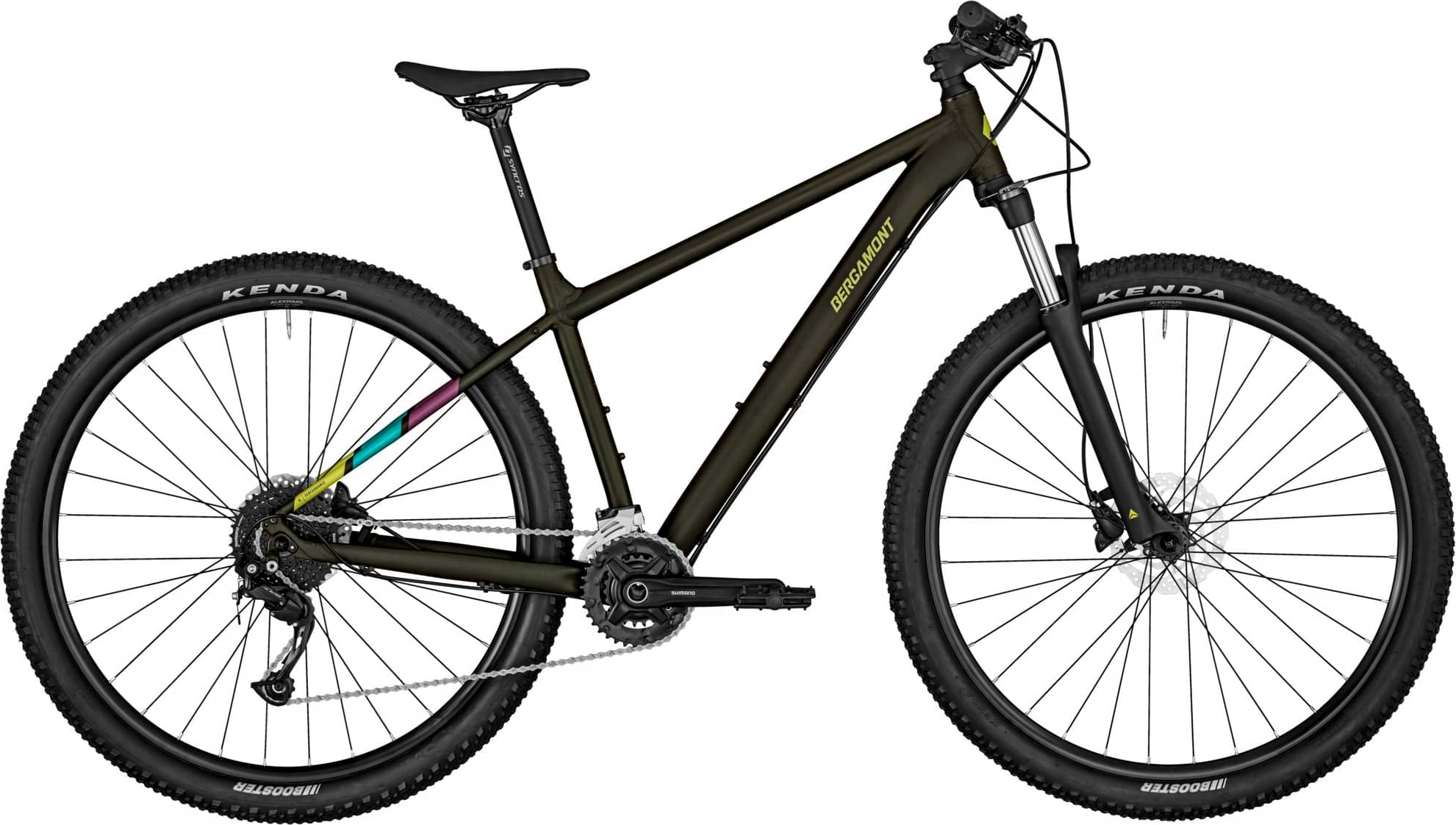

Bergamont Revox 5 2023
2023 Mountain
Estimate price |
1,069$
Weight | 14.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" (27.5"), lite AL-6061 tubing
Suspension Fork
Suntour XCM RL DS, 100 mm, remote lockout
Drivetrain
Rear Derailleur
Shimano RD-M3100, Shadow
Front Derailleur
Shimano FD-M2020
Shift Levers
Shimano SL-M3100, 2x9-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG200-9, 11-36t
Crank
Shimano FC-MT210, 36/22t
Bottom Bracket
Shimano Hollowtech II, BSA
Chain
KMC X9
Pedals
VP-536
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Alex X20, disc, width: 20 mm
Spokes
steel, black
Tires
Front: Kenda Booster, 29x2.40" (27.5x2.40") Tube: Maxxis SV29 (29"), Rear: Kenda Booster, 29x2.40" (27.5x2.40") Tube: Maxxis SV29 (29")
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Syncros 3.0, +/-6°
Handlebar
Syncros 3.0, riserbar, width: 720 mm
Grips
Syncros MTB
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros 3.0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS7 | S7 | M7 | M9 | L9 | XL9 | XXL9 |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.48 mm | 1.46 mm | 1.48 mm | 1.46 mm | 1.44 mm | 1.42 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 660 mm | 676 mm | 692 mm | 693 mm | 709 mm | 725 mm | 746 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Stack | 591 mm | 605 mm | 615 mm | 623 mm | 632 mm | 641 mm | 655 mm |
| Reach | 398 mm | 410 mm | 422 mm | 420 mm | 432 mm | 445 mm | 460 mm |
| Top Tube Length | 574 mm | 589 mm | 604 mm | 604 mm | 619 mm | 634 mm | 654 mm |
| Seat Tube Length | 360 mm | 405 mm | 445 mm | 445 mm | 485 mm | 525 mm | 565 mm |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1083 mm | 1099 mm | 1115 mm | 1136 mm | 1152 mm | 1168 mm | 1189 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 694 mm | 728 mm | 756 mm | 765 mm | 792 mm | 819 mm | 848 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Revox 5 is a Bergamont Revox model. Bergamont launched 120 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Bergamont Revox 24 2023 is the most affordable bike of this model and has a price of 546$. On the other hand, Bergamont Revox 8 2023, is the most expensive and costs 1458$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 972$. In conclusion, this bike price is 95.99% lower than the price of the average Crosscountry bike.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Revox 5 weighs 14.7 kg (32.41 lbs) and is much heavier than the average. To sum up, it’s 18.55% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
Bergamont Revox 5 2023 bike is equipped with the Suntour XCM fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Bergamont Revox 5 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
