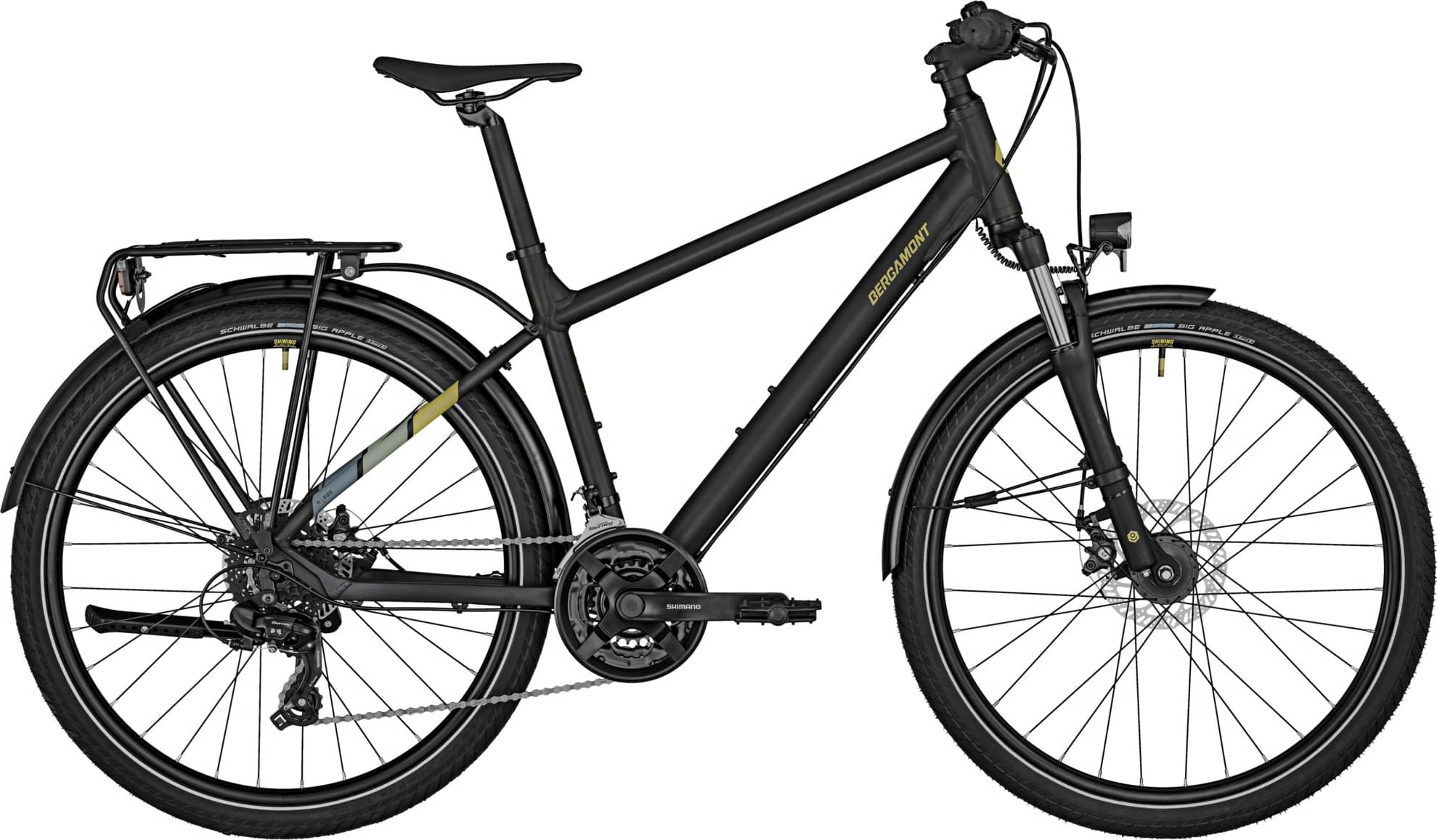

Bergamont Revox ATB 26 Boy 2023
2023 Youth
Estimate price |
935$
Weight | 15.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 80mm -
Fork Suntour XCE
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
26", lite AL-6061 tubing
Suspension Fork
Suntour XCE28 DS, 80 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano RD-TY300
Front Derailleur
Shimano FD-TY300
Shift Levers
Shimano SL-RV200, 3x7-speed, revo-shifter
Cassette
Sunrace CS-M40, 11-34t
Crank
Shimano FC-TY301, 42/34/24t
Bottom Bracket
Shimano BB-UN101, BSA
Chain
KMC Z7
Pedals
Feimin FP-803
Wheels
Front Hub
Shimano dynamo hub, DH-3D32, 6-bolt, disc
Rear Hub
BGM Comp, 6-bolt, disc, quick release
Rims
Shining DB-29, disc, width: 19 mm
Spokes
steel, black
Tires
Front: Schwalbe Big Apple, reflective stripe, 50-559 Tube: Kenda AV26, Rear: Schwalbe Big Apple, reflective stripe, 50-559 Tube: Kenda AV26
Brakes
Brakes
Tektro MD-M280, mechanical disc brake
Brake Levers
Disc-Brake lever, alloy, adjustable reach
Cockpit
Stem
Syncros 3.0, +/-6°
Handlebar
Syncros 3.0, riserbar, width: 660 mm
Grips
BGM Comp
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Tofino 2.5
Seatpost
BGM Comp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 38cm | 42cm | 47cm | 51cm | 56cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.5 mm | 1.49 mm | 1.48 mm | 1.46 mm |
| Front Center | 624 mm | 640 mm | 652 mm | 668 mm | 689 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 570 mm | 580 mm | 591 mm | 605 mm | 619 mm |
| Reach | 391 mm | 386 mm | 397 mm | 408 mm | 424 mm |
| Top Tube Length | 544 mm | 559 mm | 574 mm | 589 mm | 609 mm |
| Seat Tube Length | 360 mm | 400 mm | 445 mm | 480 mm | 525 mm |
| Head Tube Length | 115 mm | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1039 mm | 1055 mm | 1068 mm | 1084 mm | 1105 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 698 mm | 709 mm | 739 mm | 764 mm | 795 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview
Revox ATB 26 Boy is a Bergamont Revox model. Bergamont released 120 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Bergamont Revox 24 2023 has a starting price of 546$. Bergamont Revox 8 2023 on the other hand is the most expensive at 1458$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Youth bikes average price
Our math shows that the average cost of a dependable Youth bike is 278$. However, this doesn’t mean that if you spend less money on a Youth bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 850$. If we compare this with the average Youth bike cost we notice that the price is 205.76% higher.
Average weight for Youth bikes
If we make a quick analysis of the average weight of a Youth bike, we get 11.74 kg (25.88 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 15.9 kg (35.05 lbs), Bergamont bike is much heavier than average. In short, the average Youth bike weight is 35.43% lower than this one.
Overview of components
Fork
The Suntour XCE is included from the factory. It has a travel distance of 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the Revox ATB 26 Boy bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The Revox ATB 26 Boy has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
