Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 80mm -
Fork SunTour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
26", lite AL-6061 tubing
Suspension Fork
Suntour XCE28 DS, 80 mm, preload adjust
Drivetrain
Rear Derailleur
Shimano RD-TY300
Front Derailleur
Shimano FD-TY300
Shift Levers
Shimano SL-RV200, 3x7-speed, revo-shifter
Cassette
Sunrace CS-M40, 11-34t
Crank
Shimano FC-TY301, 42/34/24t
Bottom Bracket
Shimano BB-UN101, BSA
Chain
KMC Z7
Pedals
Wellgo LU895
Wheels
Front Hub
Shimano dynamo hub, DH-3D32, 6-bolt, disc
Rear Hub
BGM Comp, 6-bolt, disc, quick release
Rims
Shining DB-29, disc, width: 19 mm
Spokes
steel, black
Tires
Schwalbe Big Apple, reflective stripe, 50-559 Tubes: Impac AV26
Brakes
Brakes
Tektro MD-M280, mechanical disc brake, rotor: 160/160 mm
Brake Levers
Tektro, Alloy
Cockpit
Stem
Syncros 3.0, +/-6°
Handlebar
Syncros 3.0, riserbar, width: 660 mm
Grips
BGM Comp
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Syncros Savona 2.5
Seatpost
Syncros 3.0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 38cm | 42cm | 47cm | 51cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.6 mm | 1.58 mm | 1.55 mm |
| Bottom Bracket Height | 293 mm | 298 mm | 298 mm | 303 mm |
| Front Center | 616 mm | 628 mm | 643 mm | 660 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 86 mm | 82 mm | 82 mm | 83 mm |
| Stack | 593 mm | 597 mm | 606 mm | 615 mm |
| Reach | 357 mm | 372 mm | 384 mm | 397 mm |
| Top Tube Length | 542 mm | 552 mm | 566 mm | 581 mm |
| Seat Tube Angle | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 375 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 145 mm | 155 mm | 170 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1028 mm | 1041 mm | 1056 mm | 1074 mm |
| Bottom Bracket Drop | 50 mm | 45 mm | 45 mm | 40 mm |
| Standover Height | 656 mm | 656 mm | 656 mm | 661 mm |
| Wheels | 26" | 26" | 26" | 26" |
Model Overview

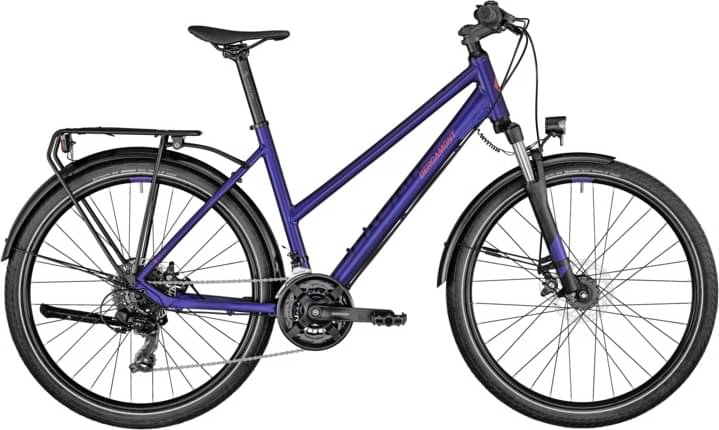

Revox ATB 26 Lady completes the Bergamont Revox model. Bergamont released 120 bikes variations of this model so far. You can easily view all of the Bergamont Revox bikes models from 2021, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Revox ATB 26 Lady has a weight of 15.9 kg (35.05 lbs). To sum up, it’s 28.23% heavier than the average weight of Crosscountry bikes.
Revox ATB 26 Lady components
Fork
The SunTour is included from the factory. It has a travel distance of 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on Revox ATB 26 Lady are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bergamont Revox ATB 26 Lady is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
