Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Sora, Shimano -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" (27.5"), ultra lite AL-6061 tubing
Suspension Fork
Suntour XCT30 HLO DS, 100 mm
Drivetrain
Rear Derailleur
Shimano RD-M3100, Shadow
Front Derailleur
Shimano FD-M2020
Shift Levers
Shimano SL-M2010, 2x9-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG200-9, 11-36t
Crank
Shimano FC-MT101, 36/22t
Bottom Bracket
Shimano BB-UN101, BSA
Chain
KMC X9
Pedals
Wellgo LU895
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Shining DB-M30, disc, width: 24 mm
Spokes
stainless, black
Tires
Kenda Booster, 29x2.40" (27.5x2.40") Tubes: Schwalbe SV19B Light (29") / SV21B Light (27.5")
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
A-Head, +/-6°
Handlebar
Riserbar, width: 700 mm
Grips
Syncros MTB
Headset
BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"
Seat
Saddle
Bergamont "FCSP"
Seatpost
Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS7 | S7 | M7 | M9 | L9 | XL9 | XXL9 |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.53 mm | 1.57 mm | 1.56 mm | 1.57 mm | 1.58 mm |
| Bottom Bracket Height | 298 mm | 298 mm | 303 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 649 mm | 655 mm | 665 mm | 666 mm | 676 mm | 680 mm | 685 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 95 mm | 90 mm | 88 mm | 80 mm | 76 mm | 74 mm | 74 mm |
| Stack | 590 mm | 606 mm | 613 mm | 631 mm | 643 mm | 655 mm | 664 mm |
| Reach | 383 mm | 388 mm | 400 mm | 401 mm | 412 mm | 418 mm | 420 mm |
| Top Tube Length | 549 mm | 564 mm | 584 mm | 584 mm | 599 mm | 614 mm | 619 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 360 mm | 400 mm | 445 mm | 445 mm | 480 mm | 525 mm | 565 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69.5 ° | 70 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1067 mm | 1073 mm | 1084 mm | 1101 mm | 1111 mm | 1115 mm | 1120 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 52 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 713 mm | 719 mm | 754 mm | 756 mm | 775 mm | 809 mm | 835 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model

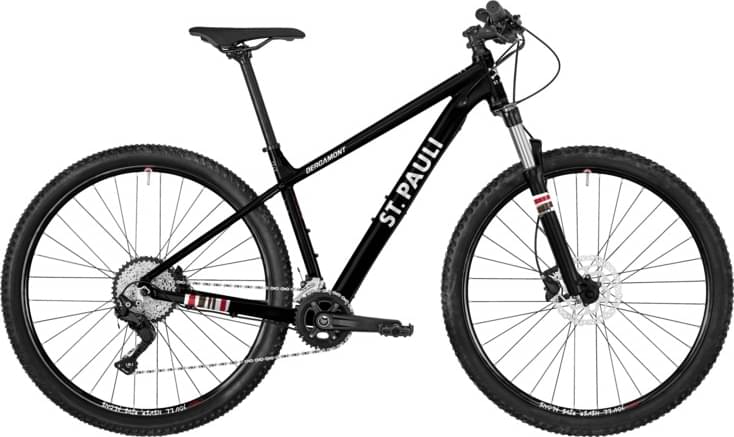

Revox St. Pauli completes the Bergamont Revox model. Bergamont launched 120 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 14.5 kg (31.97 lbs), the Revox St. Pauli model is much heavier than average. To sum up, it’s 16.94% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
Bergamont Revox St. Pauli 2021 bike is equipped with the SunTour XCT fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Revox St. Pauli 2021 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
