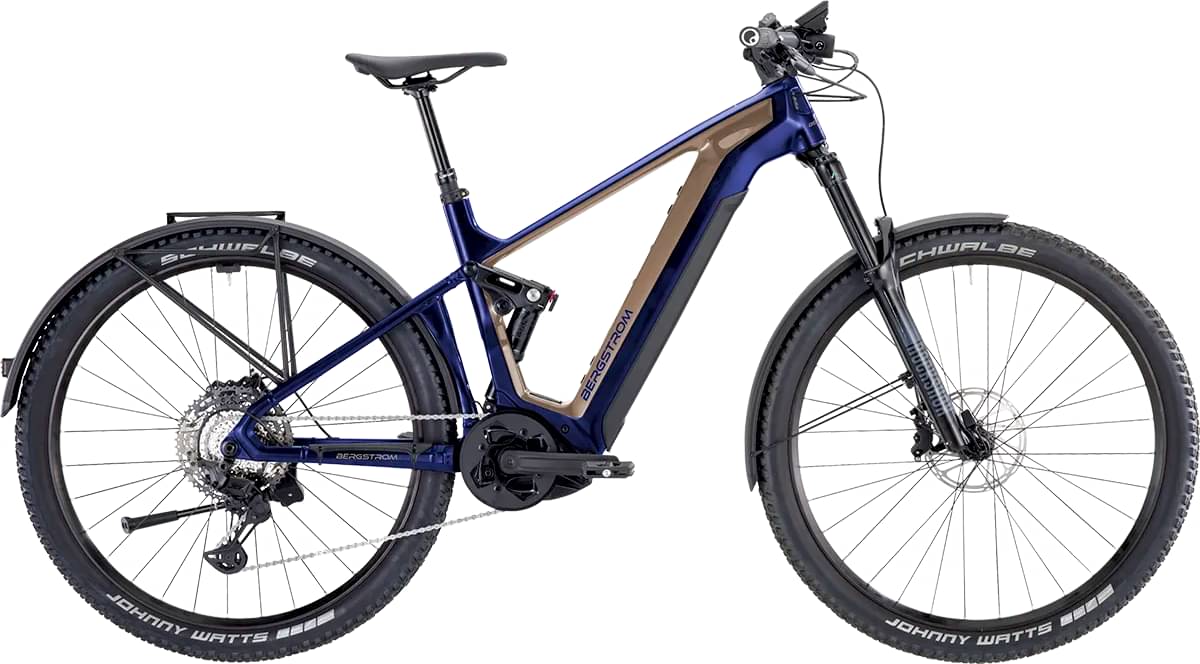

bergstrom ATV 9 SUV 2023
2023 E-bike
Estimate price |
9,381$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox 35 Gold RL
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bergstrom FS eVPP high-performance carbon frame, modular battery construction with minimal battery cut, VPP rear end with 150mm travel, trunnion mount rocker, Postmount 160, Boost 12x148mm axle, ZS56/ZS56 headtube, Smart-Route cable routing in the steering head
Suspension Fork
Rock Shox 35 Gold RL suspension fork, 150mm
Rear Shock
Rock Shox DLX RT
Drivetrain
Rear Derailleur
Shimano XT Linkglide, 11-speed
Shift Levers
Shimano XT SL-M8130 11spd
Cassette
Shimano CS-M8130 11spd LinkGlide
Crank
FSA CK-320 165mm ISIS
Chain
Shimano CN-LG500 LinkGlide 11spd
Chain Guide
optionally retrofittable
Wheels
Rims
Shimano Altus
Tires
Schwalbe Johnny Watts 29×2.35" Performance, DD Guard
Brakes
Brakes
Front: SRAM DB8 disc brake, Rear: SRAM DB8 disc brake
Cockpit
Stem
FSA ACR 50mm -10° Stem 31.8mm
Handlebar
Satori Horizon Bow Di2 handlebar 780×31.8mm, 7mm rise
Seat
Saddle
Ergon saddle SM10
Seatpost
KindShock LEV-Si Vario Support, 100 mm
Motor & Battery
Motor
Bosch G4 Performance CX, 25km/h
Battery
Bosch PowerTube 750
Charger
36V 4A Charger, 230V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.34 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Stack | 625 mm | 630 mm | 634 mm |
| Reach | 428 mm | 450 mm | 473 mm |
| Top Tube Length | 581 mm | 604 mm | 628 mm |
| Seat Tube Angle | 76.1 ° | 76.1 ° | 76.1 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm |
| Wheelbase | 1225 mm | 1250 mm | 1273 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
ATV 9 SUV is part of the Bergstrom E Atv model. Bergstrom released 15 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Bergstrom ATV 949 Carbon 2023 is the most affordable e-bike of this model and has a price of 7788$. On the other hand, Bergstrom ATV 989 RSL Carbon 2023, is the most expensive and costs 11683$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Bergstrom ATV 9 SUV price was 8456$. Doing a quick comparison, we notice that ATV 9 SUV price is 76.72% more expensive than the average cost of an Enduro e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The ATV 9 SUV comes factory-installed with the RockShox 35 Gold RL fork. This has a travel range of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The ATV 9 SUV has a rear shock with a travel of 150mm. The model Rock Shox DLX RT is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the ATV 9 SUV model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ATV 9 SUV comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Bergstrom ATV 9 SUV comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
