Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Belador 5 DISC, Racing Geometry BGC Aero Shape Efficiency (ASE), Full carbon HM2X, Triple monocoque, Resin Matrix Nanotech, BB86 botton bracket, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2"- 1-1/2", Flat Mount System brake,700x34
Suspension Fork
Belador Blade 5 full carbon fork, internal cable system ICS2, 1-1/8" - 1-1/2" Tappered head tube compatible, Flat Mount System brake, 700x34 maximun tyre, Thru axle 12x100mm Speed release system, weight 395g
Drivetrain
Rear Derailleur
SRAM FORCE eTap AXS D2 24 Speed Electronic Shift System
Front Derailleur
SRAM FORCE eTap AXS D2 Electronic Shift System
Cassette
SRAM RIVAL XG1270, 10-33T
Crank
SRAM FORCE D2 Crankset 48/35T, 170-172,5-175mm
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM FORCE PC-1170
Wheels
Rims
FULCRUM 800 DB, Aluminium, TLR, Rim 34 mm, 19 mm internal wide 1960g - 28 (front) 28 (rear), J Pull Spokes
Tires
Rubino IV 28-622, Tubeless Ready, GRAPHENE 2.0, weight 270g
Brakes
Brakes
SRAM FORCE eTap AXS D2 HRD Shift-Brake System Flatmount 160/F-R Pace line Rotor
Brake Levers
SRAM FORCE eTap AXS D2 HRD Shift-Brake System Electronic Shift System
Cockpit
Handlebar
Avanforce Integral road handlebar UD Carbon, Full internal cable system ICS2, sizes 400x90 - 420x100 - 420x110 - 420x120 - 440x120mm, weight 390g
Seat
Saddle
Selle Italia MODEL X BB FEC, Alloy rails, wide 143mm
Seatpost
Belador 5 SP, UD Carbon, 15 mm offset, ISP technology, weight 148g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.42 mm | 1.42 mm | 1.44 mm | 1.45 mm |
| Bottom Bracket Height | 262 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 574 mm | 588 mm | 599 mm | 609 mm | 621 mm |
| Rake | 43 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 71 mm | 69 mm | 66 mm | 63 mm | 60 mm |
| Stack | 527 mm | 542 mm | 559 mm | 579 mm | 597 mm |
| Reach | 369 mm | 383 mm | 393 mm | 402 mm | 413 mm |
| Top Tube Length | 515 mm | 534 mm | 552 mm | 570 mm | 590 mm |
| Seat Tube Angle | 75.5 ° | 74.7 ° | 74.3 ° | 73.9 ° | 73.5 ° |
| Seat Tube Length | 435 mm | 475 mm | 505 mm | 535 mm | 568 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 125 mm | 141 mm | 157 mm | 176 mm | 193 mm |
| Chainstay Length | 404 mm | 404 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 966 mm | 981 mm | 994 mm | 1004 mm | 1016 mm |
| Bottom Bracket Drop | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

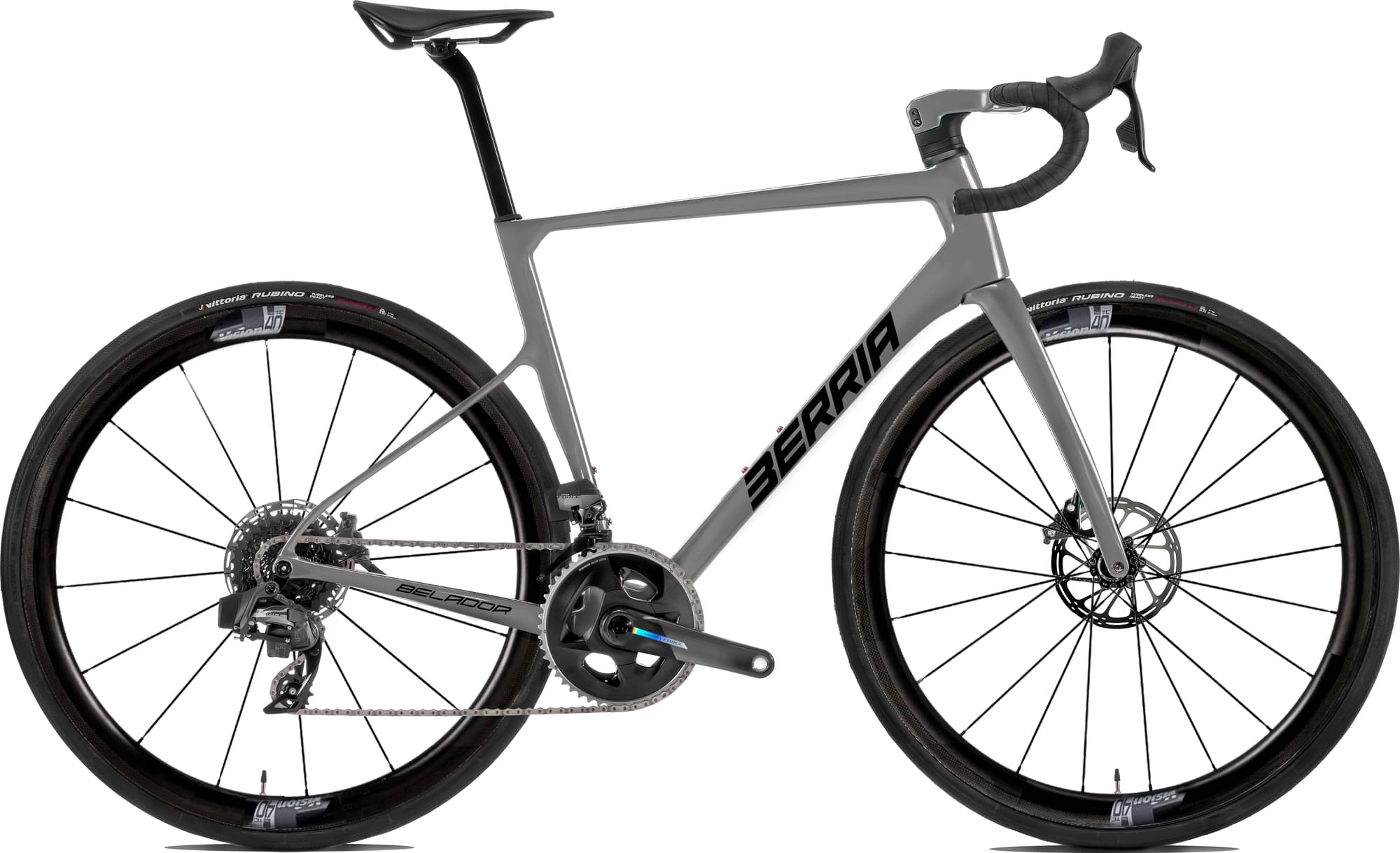

BELADOR 9 AV 24 completes the Berria Belador model. There are 65 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
BELADOR 9 AV 24 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Berria BELADOR 9 AV 24 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Berria BELADOR 9 AV 24 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Berria BELADOR 9 AV 24 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
