Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Groupset GRX 400, Rotor -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Belador Allroad HP, Gravel type 1-2 Geometry BGC, Aluminum 3BS 6061 Hydroforming, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2", Flat Mount System brake, 700x36 maximun tyre, Thru axle 12x142mm, weight 1750g.
Suspension Fork
Belador Hybrid full carbon fork, internal cable system ICS2, 1-1/8" - 1-1/2" Tappered head tube compatible, Flat Mount System brake, 700x36 maximun tyre, Thru axle 12x100mm, weight 470g
Drivetrain
Rear Derailleur
SHIMANO GRX RD-RX400 20 Speed
Front Derailleur
SHIMANO GRX FD-RX400
Cassette
SHIMANO CS-HG50 11-36 10V
Crank
ROTOR Vegast TDS OCP, 46x30T 170-172,5-175mm
Chain
SHIMANO CN-HG54 116E
Wheels
Rims
AVANFORCE 29"- 27mm TLR HUB SHIMANO MT 400 2020g - 32 (front) 32 (rear), J Spokes

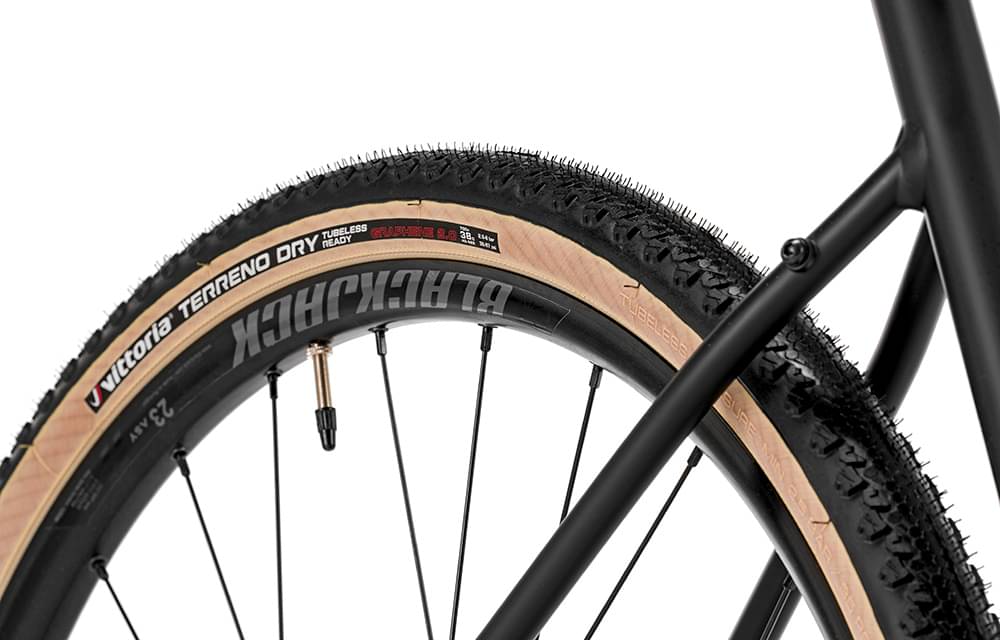

Tires
Vittoria Terreno Dry 38C, TNT, 120 TPI, weight 698g
Brakes
Brakes
SHIMANO BR-RX400 Hyd Disc 160/F and 160/R SM-RT70 CL rotor

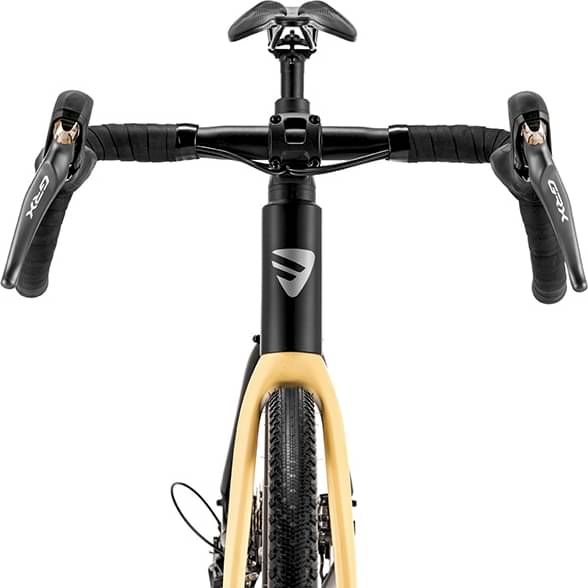

Brake Levers
SHIMANO GRX ST-RX400 Disc 20 Speed

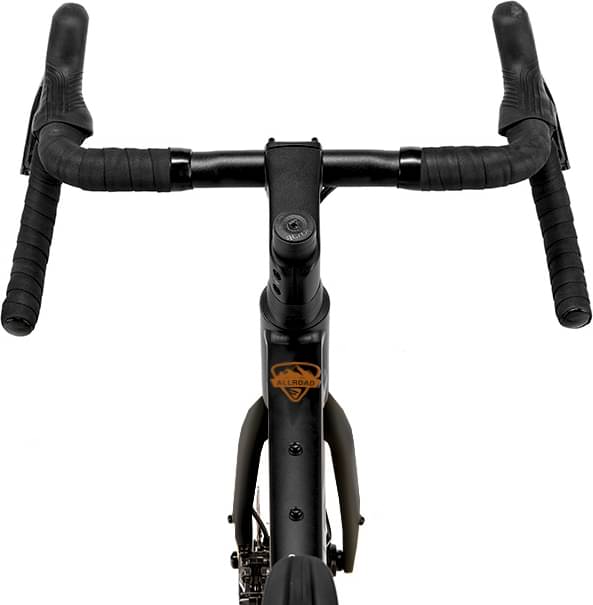

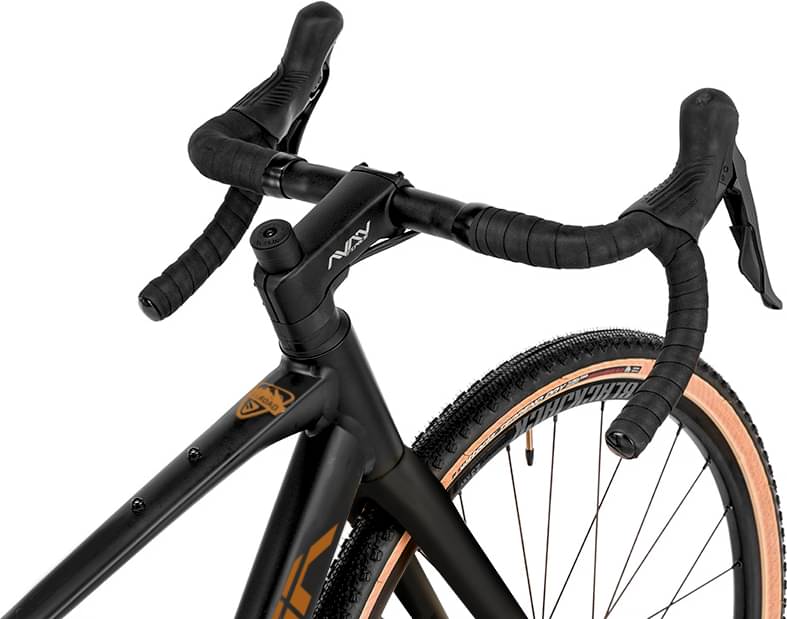

Cockpit
Stem
Avanforce ICS2, -7°, Ø31,8, 90-100-110-120mm
Handlebar
Avanforce Gravel Alloy 6061 /400, 420, 440mm
Seat
Saddle
Selle Italia MODEL X BB FEC, Alloy rails, wide 143mm
Seatpost
Avanforce, 27,2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.46 mm | 1.47 mm | 1.46 mm |
| Front Center | 599 mm | 607 mm | 613 mm | 623 mm | 638 mm |
| Rake | 47 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 73 mm | 69 mm | 66 mm | 63 mm | 60 mm |
| Stack | 523.1 mm | 539.1 mm | 554.1 mm | 572.1 mm | 591.2 mm |
| Reach | 369.7 mm | 375.1 mm | 380.5 mm | 389.6 mm | 403.8 mm |
| Top Tube Length | 517 mm | 532 mm | 547 mm | 567 mm | 587 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 484 mm | 508 mm | 532 mm | 556 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 110 mm | 125 mm | 141 mm | 158 mm | 176 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1012 mm | 1019 mm | 1026 mm | 1036 mm | 1051 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
BELADOR ALLROAD HP is a Berria Belador model. Berria released 65 bikes variations of this model so far. Take a sneak peek at all Berria Belador bikes models from 2023, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
BELADOR ALLROAD HP components
Fork material
BELADOR ALLROAD HP has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The BELADOR ALLROAD HP 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Berria BELADOR ALLROAD HP has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Berria BELADOR ALLROAD HP bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
