Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 400, Rotor -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Belador Allroad HPR, Gravel type 1-2 Geometry BGC, filed and polished Aluminum 3BS 6061 Hydroforming, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2", Flat Mount System brake, 700x42 maximun tyre, Thru axle 12x142mm, weight 1750g
Suspension Fork
FORK BELADOR ALLROAD EVO, full carbon, internal cable system ICS2, 1-1/8" - 1-1/2" Tappered, Flat Mount System brake max. 160mm disc, 700x44 maximun tyre, Flip-chip adust 45-51mm rake, 405mm axle-crown, Thru axle 12x100mm, weight 500g
Drivetrain
Rear Derailleur
SHIMANO GRX RD-RX400 20 Speed
Front Derailleur
SHIMANO GRX FD-RX400
Cassette
SHIMANO CS-HG50 11-36 10V
Crank
ROTOR Vegast TDS OCP, 46x30T 170-172,5-175mm
Chain
SHIMANO CN-HG54
Wheels
Rims
Mavic Allroad, Aluminum S6000 rim, height 22mm, internal width 23 mm, max. weight 120kg, weight 1890g
Tires
Vittoria Terreno Dry 40, Fold full, weight 698g
Brakes
Brakes
SHIMANO BR-RX400 Hyd Disc 160/F and 160/R SM-RT70 CL rotor
Brake Levers
SHIMANO GRX ST-RX400 Disc 20 Speed
Cockpit
Handlebar
Avanforce 3 Gravel, Alloy 6061, /400, 420, 440mm, weight 330g
Seat
Saddle
Selle Royal 2058, Steel rails, width 285mm, width 145mm, weight 315g
Seatpost
Avanforce AF3, Aluminum 6061, 0 offset, 27,2 x 350mm, weight 255g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.47 mm | 1.49 mm | 1.48 mm |
| Bottom Bracket Height | 259 mm | 259 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 592 mm | 599 mm | 605 mm | 614 mm | 630 mm |
| Rake | 41 mm | 41 mm | 41 mm | 41 mm | 41 mm |
| Trail | 80 mm | 77 mm | 73 mm | 70 mm | 67 mm |
| Stack | 527.9 mm | 543.9 mm | 558.9 mm | 577.1 mm | 596.2 mm |
| Reach | 368.4 mm | 373.7 mm | 379.1 mm | 388.1 mm | 402.3 mm |
| Top Tube Length | 517 mm | 537.2 mm | 547 mm | 561.4 mm | 581.3 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 484 mm | 508 mm | 532 mm | 556 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 100 mm | 115 mm | 131 mm | 148 mm | 166 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1003 mm | 1009 mm | 1016 mm | 1026 mm | 1041 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

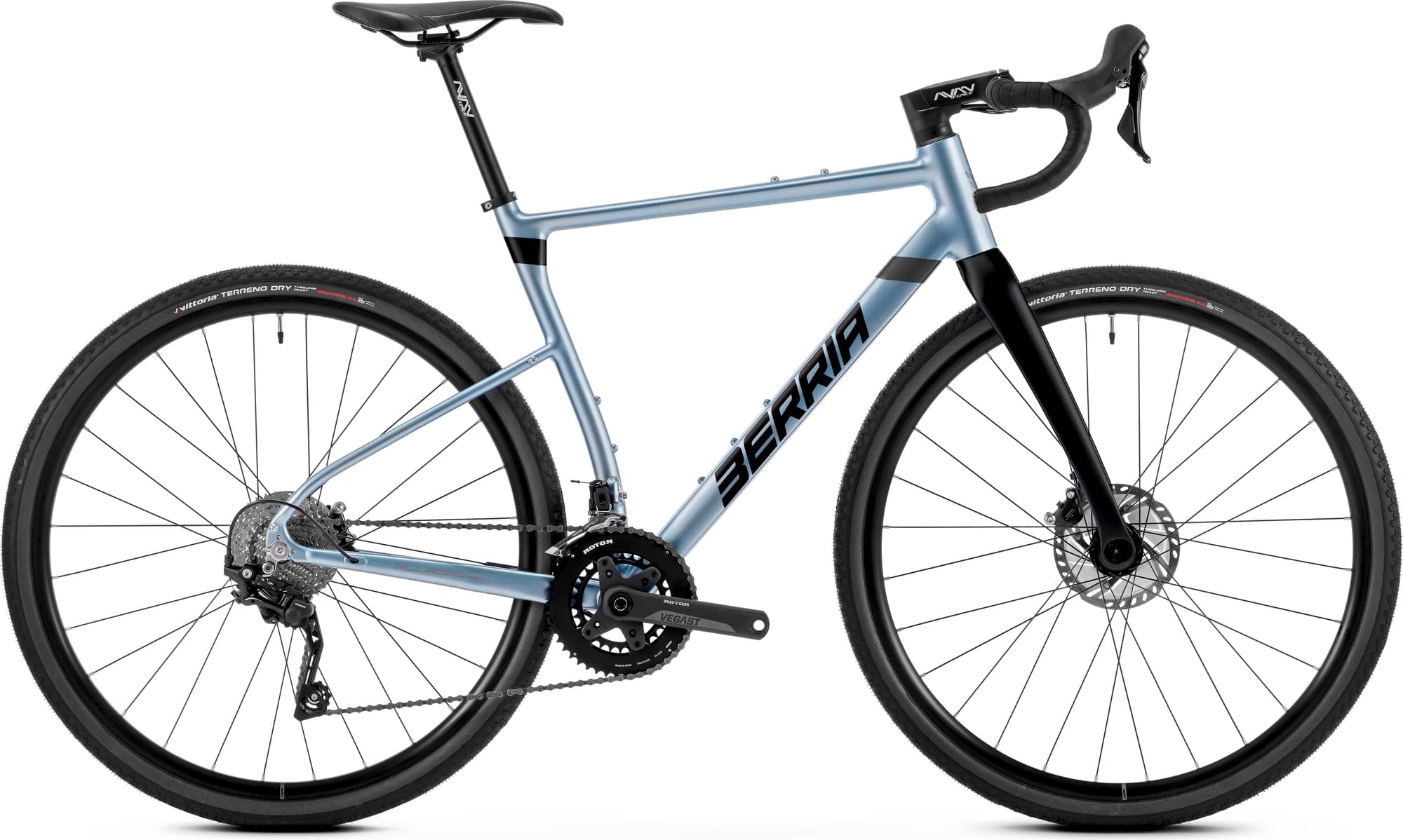

BELADOR ALLROAD HPR 4 is a Berria Belador model. Berria released 65 bikes variations of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
BELADOR ALLROAD HPR 4 components
Fork material
BELADOR ALLROAD HPR 4 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the BELADOR ALLROAD HPR 4 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BELADOR ALLROAD HPR 4 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Berria BELADOR ALLROAD HPR 4 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
