Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Apex, Rival -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Belador ALLROAD, Geometry BGC with 26mm travel SOFTEX Suspension System, Full carbon HM2X, Triple monocoque, Resin Matrix Nanotech CNT, BB86 botton bracket, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2"- 1-1/2", Flat Mount System brake, 700x44 / 650x47 maximun tyre, Telescopic seat post ready, Thru axle 12x142mm, UDH standar, weight 1060g
Suspension Fork
FORK BELADOR ALLROAD EVO, full carbon, internal cable system ICS2, 1-1/8" - 1-1/2" Tappered, Flat Mount System brake max. 160mm disc, 700x44 maximun tyre, Flip-chip adust 45-51mm rake, 405mm axle-crown, Thru axle 12x100mm, weight 500g
Drivetrain
Rear Derailleur
SRAM RD APEX EAGLE D1 MAX 52T
Cassette
SRAM XG1210, 11-50T, weight 730g
Crank
SRAM RIVAL 1 DUB WIDE Crankset 44 T, 170-172,5-175mm
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM APEX CN-APX-D1
Wheels
Rims
Fulcrum Rapid Red 900, Alloy assymetric, TLR, height 24,1mm, internal width 22mm, max. weight 120kg, weight 1950g
Tires
Vittoria Terreno Dry 700x38C, TNT, 120 TPI, weight 450g
Brakes
Brakes
SRAM APEX SJD Shift-Brake System Flatmount 160/F and 160/R Centerlock Rotor
Brake Levers
SRAM APEX D1 SJD Shift-Brake System
Cockpit
Handlebar
Avanforce 3 Gravel, Alloy 6061, /400, 420, 440mm, weight 330g
Seat
Saddle
Selle Italia MODEL X BB FEC, Alloy rails, wide 145mm, length 245mm, weight 315g
Seatpost
Avanforce AF3, Aluminum 6061, 0 offset, 27,2 x 350mm, weight 255g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.43 mm | 1.43 mm | 1.45 mm | 1.46 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 593 mm | 607 mm | 620 mm | 630 mm | 642 mm |
| Rake | 44 mm | 44 mm | 46 mm | 45 mm | 45 mm |
| Trail | 77 mm | 73 mm | 68 mm | 66 mm | 63 mm |
| Stack | 527 mm | 542 mm | 559 mm | 579 mm | 597 mm |
| Reach | 366 mm | 380 mm | 390 mm | 399 mm | 410 mm |
| Top Tube Length | 517 mm | 532 mm | 547 mm | 567 mm | 587 mm |
| Seat Tube Angle | 75.1 ° | 74.8 ° | 74.5 ° | 74.2 ° | 73.9 ° |
| Seat Tube Length | 460 mm | 484 mm | 508 mm | 532 mm | 556 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 98 mm | 113 mm | 129 mm | 146 mm | 164 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 992 mm | 1007 mm | 1020 mm | 1030 mm | 1042 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

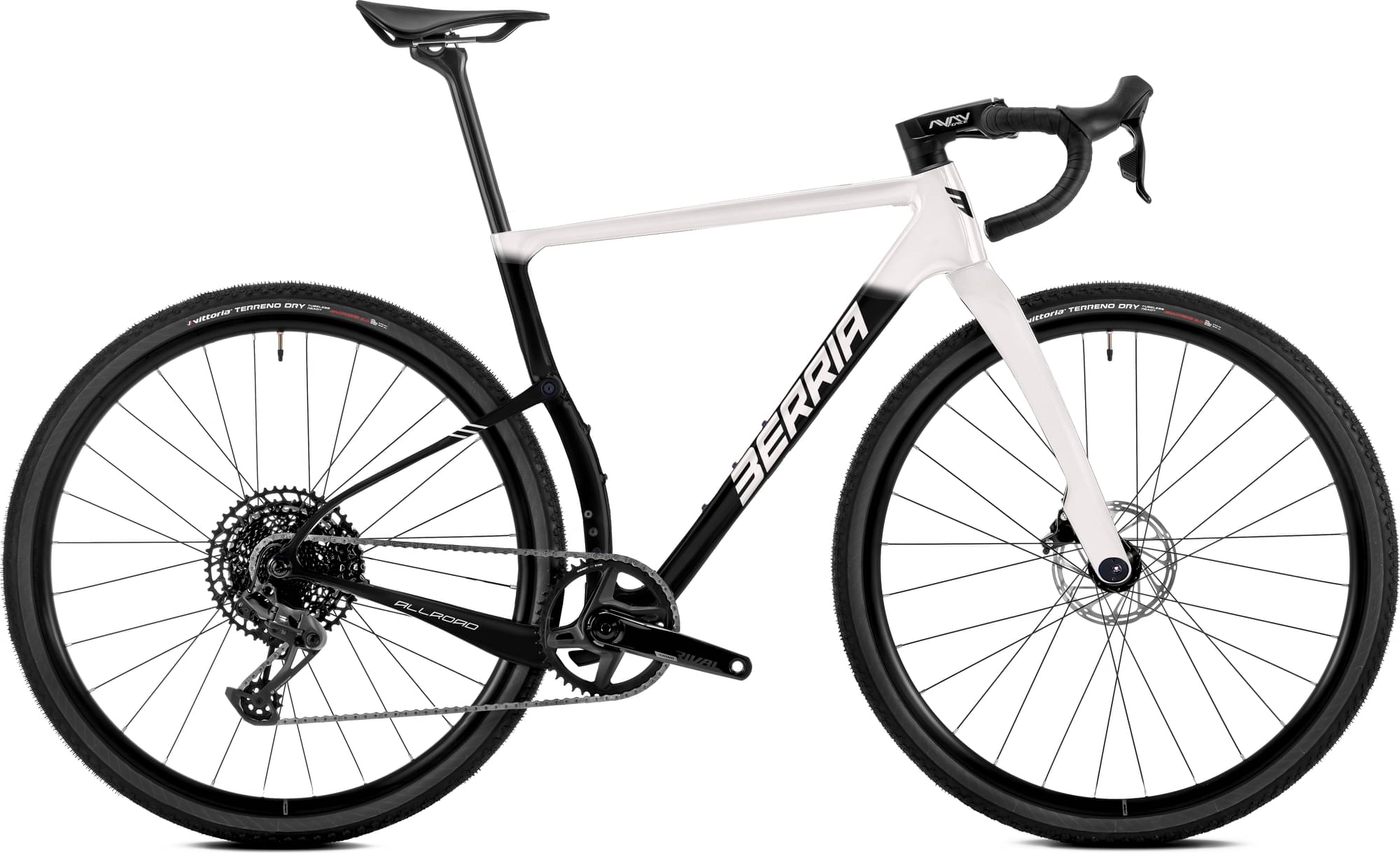

BELADOR ALLROAD SPORT is a Berria Belador model. 65 bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the BELADOR ALLROAD SPORT model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BELADOR ALLROAD SPORT comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
