Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 28mm -
Fork RockShox Recon Silver RL
-
Groupset NX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bravo 6, XCO WC Racing Geometry BGC with 28mm travel SOFTEX Suspension System, Full carbon HM2X, Triple monocoque, resin Matrix Nanotech CNT, BB92 botton bracket, Full internal cable system ICS2, Integrated headset OH2S 1-1/2", Post Mounted brake PMS, 29"x2.40 maximun tyre, BOOST Thru axle 12x148mm, UDH standar, weight 1150g (without hardware)
Suspension Fork
Rock Shox RECON RL, Damper Motion Control, 15x110mm Maxle Stealth, Tapered steerer, Remote Lockout, Rake 51, 32 mm straight wall aluminium Fast Black, weight 2353g, 100mm travel
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12 Speed, weight 339g
Cassette
SRAM XG1210, 11-50T, weight 730g
Crank
SRAM X1 DUB Eagle Boost 34T 170-175mm
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM SX Eagle CN-EAGL-SX-A1
Wheels
Rims
FULCRUM RED ZONE 99, alloy, 23 mm internal wide 1875g - 28 (front) 28 (rear), Straight Pull Spokes
Tires
VITTORIA BARZO 2.25X 29,Rigid Bead, weight 800g
Brakes
Brakes
SRAM LEVEL Disc 180/F and 160/R
Brake Levers
SRAM NX Eagle, 12 Speed, weight 339g
Cockpit
Handlebar
Avanforce AF3, Aluminum 6061, 31, 8mm, wide 740mm, weight 330g
Seat
Saddle
Selle Royal 2058, Steel rails, width 285mm, width 145mm, weight 315g
Seatpost
TIBIA Flex Seat post, UD Carbon, 0 offset, 27,2 x 420mm, weight 195g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.42 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 687 mm | 718 mm | 734 mm | 752 mm |
| Rake | 49 mm | 48 mm | 47 mm | 49 mm |
| Trail | 109 mm | 107 mm | 104 mm | 98 mm |
| Stack | 596 mm | 607 mm | 621 mm | 635 mm |
| Reach | 394 mm | 427 mm | 445 mm | 462 mm |
| Top Tube Length | 553 mm | 591 mm | 619 mm | 644 mm |
| Seat Tube Angle | 75.1 ° | 75.1 ° | 74.4 ° | 74.1 ° |
| Seat Tube Length | 380 mm | 431 mm | 470 mm | 521 mm |
| Head Tube Angle | 66.5 ° | 67 ° | 67.5 ° | 68 ° |
| Head Tube Length | 85 mm | 95 mm | 107 mm | 120 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1096 mm | 1127 mm | 1144 mm | 1162 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

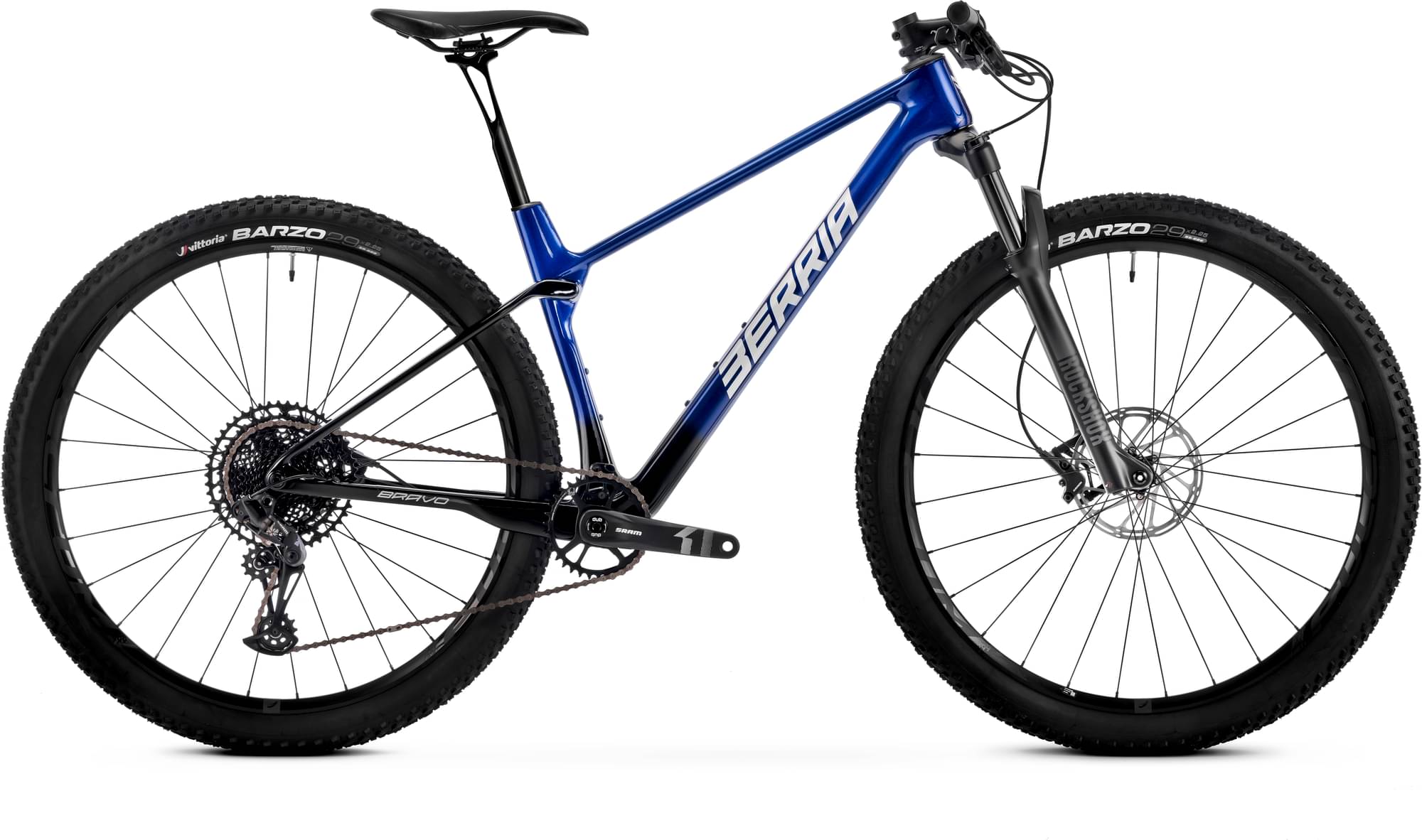

BRAVO 5 belongs to the Berria Bravo model. There are 36 bikes that carry this model name. You can easily view all of the Berria Bravo bikes models from 2024, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
BRAVO 5 components
Fork
The BRAVO 5 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on BRAVO 5 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The BRAVO 5 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
BRAVO 5 comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
