Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bravo Hybrid HP, Aluminum tubes 3BS 6061 Hydroformed and aluminum parts with Technology PCP Precision Casting Process, Full internal cable system ICS2, Headset integrated OH2S 1-1/2" - 1-1.8", Post mounted system PMS brake, 29x2.25 maximun tyre, Thru axle Boost 12x148mm, weight 2700g
Suspension Fork
Rock Shox35 GOLD RL, Motion Control, 15x110mm Maxle Stealth, Tapered steerer OD 69, Rake 44mm, 35 mm straight wall STEEL Fast Black, weight 2377g, 120mm travel
Drivetrain
Rear Derailleur
SRAM SX Eagle Aluminum cage, 12 Speed
Cassette
SRAM XG1210, 11-50T
Crank
Bafang, aluminum, 34T, 165-170 mm
Chain
SRAM SX Eagle CN-EAGL-SX-A1
Wheels
Rims
AVANFORCE 29, Aluminum rim, TLR, internal width 30mm, Hub FORMULA DHT, max. weight 130kg, weight 2400g
Tires
Vittoria Barzo 2.35"X 29", Tubeless ready, GRAPHENE 2.0 120 TPI, weight 725g
Brakes
Brakes
SRAM DB8, 4 pistons, mineral oil, Disc 200/F 180/R
Brake Levers
SRAM SX Eagle Trigger
Cockpit
Handlebar
Avanforce 2, 31,8mm, wide 780mm
Seat
Saddle
ESSAX ERA, Steel rod, wide 145mm, length 250mm, weight 280g
Seatpost
Avanforce 0 offset, 31,6 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.479 mm | 1.398 mm |
| Bottom Bracket Height | 304 mm | 306 mm | 306 mm |
| Front Center | 727 mm | 727 mm | 758 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 96 mm | 96 mm |
| Stack | 639.3 mm | 645.1 mm | 649.7 mm |
| Reach | 420.6 mm | 436.1 mm | 464.82 mm |
| Top Tube Length | 581 mm | 615 mm | 645 mm |
| Seat Tube Angle | 76 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 445 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 115 mm | 120 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1166 mm | 1167 mm | 1197 mm |
| Bottom Bracket Drop | 70 mm | 68 mm | 68 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

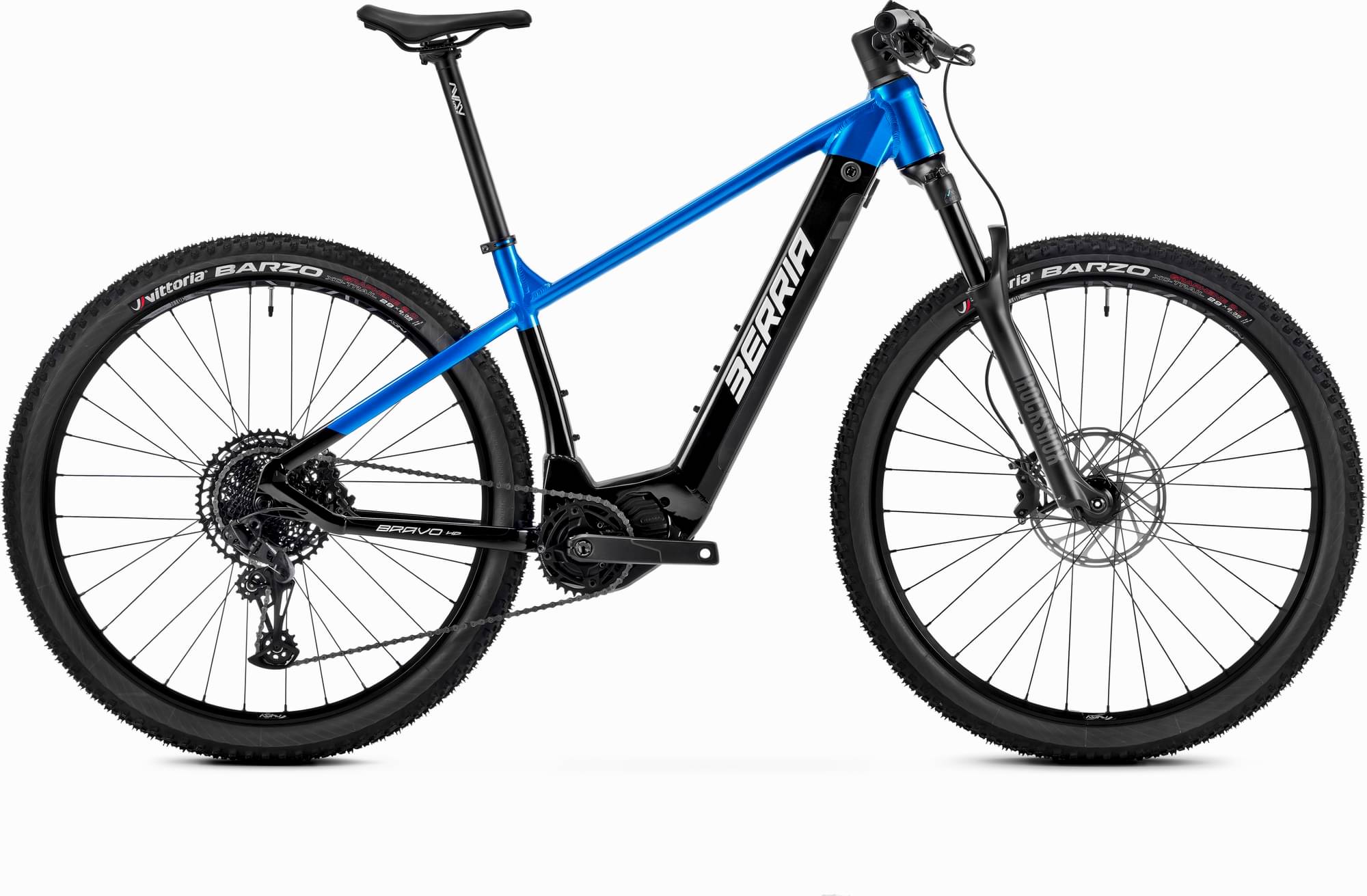

BRAVO HYBRID HP completes the Berria Bravo model. Berria released 39 bikes variations of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
BRAVO HYBRID HP components
Fork
The fork installed on this bike is the RockShox 35 Gold RL model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
When it comes to wheels, the BRAVO HYBRID HP bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
