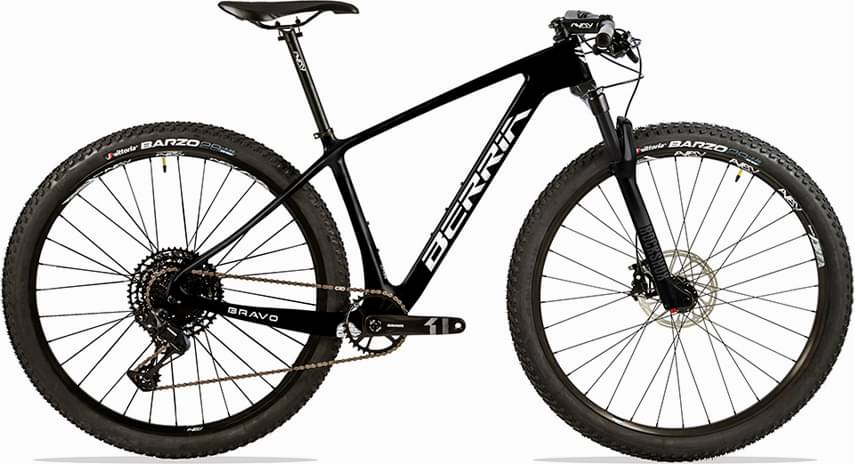

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset SX Eagle, X1 -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bravo 5 EVO, XCO Racing Geometry BGC 29", Full carbon HMR2X, Triple monocoque, Resin Matrix Nanotech CNT, BB92 botton bracket, Active Stay, Asymmetric, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2", Post Mounted brake PMS, 29"x2.35
Suspension Fork
Rock Shox Judy TK, Damper Type Turnkey,15x110mm Maxle Stealth, Tapered steerer, Remote Lockout, Rake 51mm, 30mm straight wall aluminium Fast Black weight 2365g, 100mm travel
Drivetrain
Rear Derailleur
SRAM SX Eagle Aluminum cage, 12 Speed
Cassette
SRAM XG1210, 11-50T
Crank
SRAM X1 DUB Eagle Boost 34T 170-175mm
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM SX Eagle CN-EAGL-SX-A1
Wheels
Rims
AVANFORCE 29"- 27mm TLR HUB SHIMANO MT 400 2020g - 32 (front) 32 (rear), J Spokes
Tires
VITTORIA BARZO 2.25X 29,Rigid Bead, weight 800g
Brakes
Brakes
SRAM LEVEL Disc 180/F and 160/R
Brake Levers
SRAM SX Eagle Trigger
Cockpit
Stem
Avanforce 3, -6°, Ø31,8, 80-90-100mm
Handlebar
Avanforce 2, 31, 8mm, wide 740mm
Seat
Saddle
SELLE ROYAL 2058 HRN
Seatpost
Avanforce 3 0 offset, 27,2 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.47 mm | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 308 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 662 mm | 675 mm | 704 mm | 726 mm |
| Rake | 49 mm | 49 mm | 49 mm | 52 mm |
| Trail | 94 mm | 91 mm | 91 mm | 84 mm |
| Stack | 599.4 mm | 601.7 mm | 606.2 mm | 613.2 mm |
| Reach | 393.2 mm | 410.3 mm | 437.4 mm | 459.5 mm |
| Top Tube Length | 555 mm | 578 mm | 612 mm | 642 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 425 mm | 470 mm | 520 mm |
| Head Tube Angle | 68.6 ° | 69.1 ° | 69.1 ° | 69.6 ° |
| Head Tube Length | 93 mm | 95 mm | 100 mm | 105 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1077 mm | 1091 mm | 1120 mm | 1142 mm |
| Bottom Bracket Drop | 66 mm | 64 mm | 64 mm | 64 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
BRAVO SPORT is part of the Berria Bravo model. 36 bikes variations carry this model name so far. Take a sneak peek at all Berria Bravo bikes models from 2023, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
BRAVO SPORT components
Fork
The BRAVO SPORT comes factory-installed with the RockShox Judy fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The BRAVO SPORT 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BRAVO SPORT comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
