Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 113mm -
Fork Fox Factory Float 34
-
Groupset X0 Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mako 4 BR, XCO WC Racing Geometry BGC, 113mm travel with integrated IN-LINK suspension, Full carbon UHM2X, moncoque, resin HEXCEL HexPly, bearings full ball ISB VMAX, BB92 botton bracket, Full internal cable system ICS2, Integrated headset OH2S 1-1/2", Post Mounted brake PMS, 29"x2.40 maximun tyre, BOOST Thru axle 148x12, UDH standar, weight 1495g (without hardware).
Suspension Fork
FOX 34 SC Factory, Kashima Coat, FIT4 3P Lockout remote 3 Position, Float Evol Air, Reb. Adj. 15x110mm Kabolt axle, 44mm offset, Tapered steerer, weight 1623g, 110mm travel
Rear Shock
FOX Factory FLOAT DPS 3P Trunnion 165x45, Kashima Coat, Float Evol Air 3P Lockout remote 3 Position, weight 221g, 113mm travel
Drivetrain
Rear Derailleur
SRAM X0 AXS Eagle T-TYPE, 12 Speed, weight 466g
Cassette
SRAM XG1295 Eagle T-TYPE, 10-52T
Crank
SRAM X0 Q174, DUB WIDE, 34T-TYPE 170-175mm
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM X0 T-TYPE Flattop, 256g
Wheels
Rims
MAVIC CROSSMAX SL S, Aluminum S6000 rim, 25 mm internal wide, max. weight 150kg, weight 1610g
Tires
Vittoria Barzo 2.25"X 29", Tubeless Ready, GRAPHENE 2.0 120 TPI, weight 660g
Brakes
Brakes
SRAM LEVEL BRONZE STEALTH, tool free reach adjust, 2 pistons, 180/F and 160/R
Brake Levers
EC AXS POD right BRIDGE W/MMX
Cockpit
Handlebar
AGUILA BR, Integrated handlebar carbon Concept, wide 760mm, Backsweep 7°, Upsweep 5°, Rise 0mm, Stem lenght 60mm/75mm/95mm, weight 180gr
Seat
Saddle
Fizik Argo Vento R5, Steel rails, width 265mm, width 140mm, weight 225g
Seatpost
TIBIA Flex Seat post, UD Carbon, 0 offset, 31,6 x 420mm, weight 220g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.356 mm | 1.314 mm | 1.266 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm |
| Front Center | 717 mm | 724 mm | 705 mm |
| Rake | 46 mm | 32 mm | -10 mm |
| Trail | 109 mm | 120 mm | 162 mm |
| Stack | 590 mm | 602 mm | 614 mm |
| Reach | 435 mm | 458 mm | 485 mm |
| Top Tube Length | 580 mm | 608 mm | 640 mm |
| Seat Tube Angle | 76.2 ° | 76 ° | 75.8 ° |
| Seat Tube Length | 400 mm | 445 mm | 490 mm |
| Head Tube Angle | 67 ° | 67.5 ° | 68 ° |
| Head Tube Length | 85 mm | 95 mm | 105 mm |
| Chainstay Length | 430 mm | 445 mm | 490 mm |
| Wheelbase | 1143 mm | 1165 mm | 1191 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

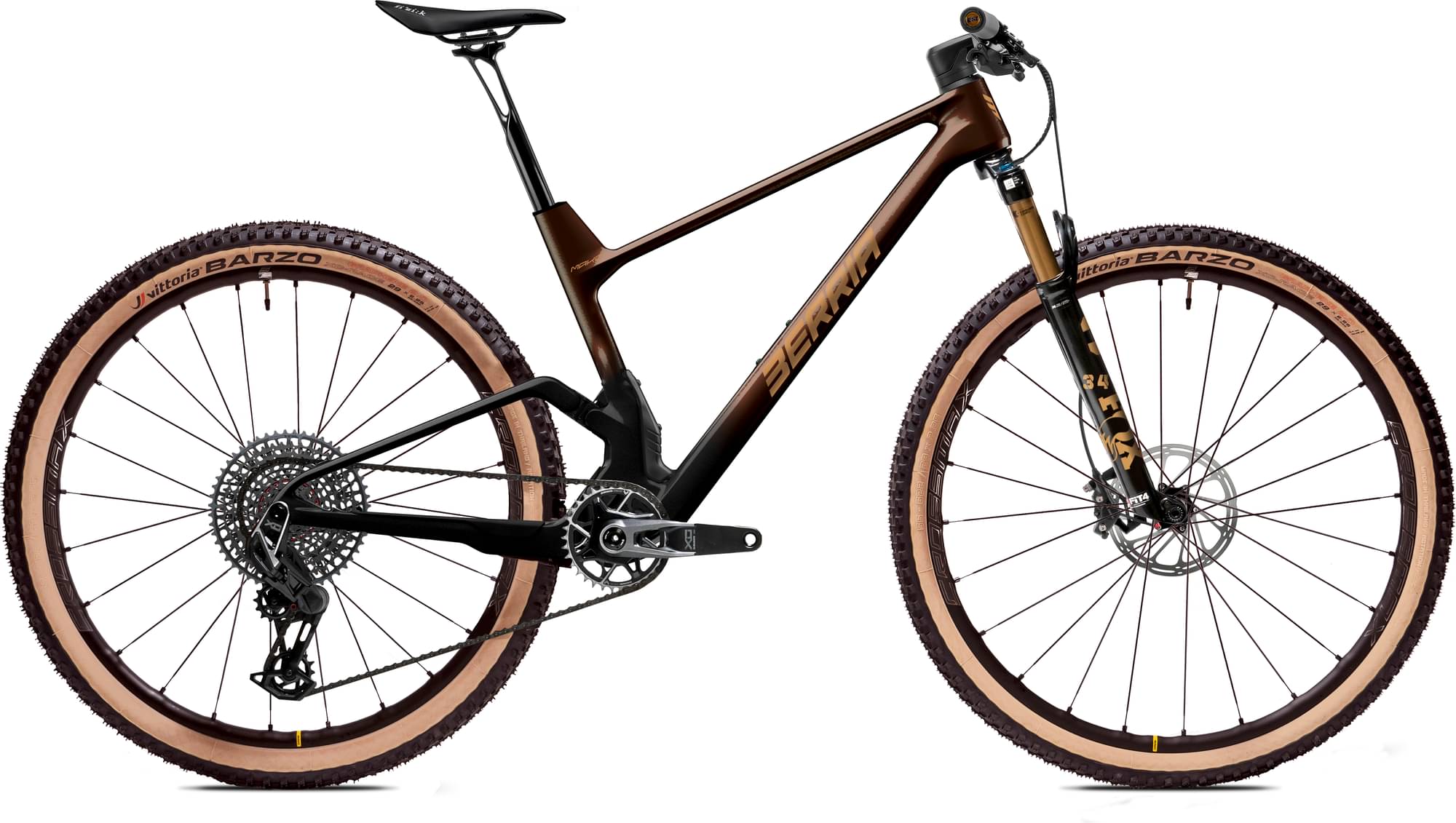

MAKO 9 BR is a Berria Mako model. 64 bikes variations carry this model name so far. You can easily view all of the Berria Mako bikes models from 2024, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The MAKO 9 BR comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 110mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Berria MAKO 9 BR bike has the FOX Factory FLOAT DPS 3P Trunnion 165×45 model installed, and has a travel of 113mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Berria MAKO 9 BR 2024, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The MAKO 9 BR has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
