Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 105mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS, XX -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mako 3 BR, XCO Racing Geometry BGC, kinematic XCO WC 105mm, Full carbon UHM3X, Triple moncoque, Resin Matrix Nanotech CNT, bearings full ball ISB VMAX, BB92 botton bracket, Active Stay, Asymmetric, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2", Post Mounted brake PMS, 29"x2.35 maximun tyre, BOOST Thru axle 148x12, Fox Live Valve ready, weight 1515g
Suspension Fork
FOX 34 SC Float Factory Air, Kashima FIT4, 15x110mm Kabolt, Axle 44mm offset, Tapered steerer, Reb. Adj. Lockout remote 3 Position, weight 1623g, 110mm travel
Rear Shock
FOX FACTORY FLOAT DPS BERRIA MAKO 3 WC XCO Tuning, EVOL SV 3 POS adjustment, Trunion 165X45mm, weight 244g, 105mm travel
Drivetrain
Rear Derailleur
SRAM XX SL AXS T-TYPE, 12 Speed
Cassette
SRAM XG1299 Eagle T-TYPE, 10-52T, weight 372g
Crank
SRAM XX SL Q168, DUB, Direct mount 34T, T-TYPE 170-175mm, chain line 55mm
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM XX SL T-TYPE Flattop, weight 240g
Wheels
Rims
FULCRUM RED METAL 500, alloy, 27 mm internal wide 1950g - 28 (front) 28 (rear), Straight Pull Spokes
Tires
Vittoria Barzo 2.25"X 29", Tubeless Ready, GRAPHENE 2.0 120 TPI, weight 660g
Brakes
Brakes
SRAM LEVEL ULTIMATE Disc, tool free reach adjust, 180/F and 160/R 6T Rotor
Brake Levers
SRAM EC AXS POD ULTIMATE Controller
Cockpit
Handlebar
Avanforce Ltd, Intagrated handelbar Concept UD carbon Backsweep 9°, wide 740mm
Seat
Seatpost
Darimo T1 Loop UD Carbon, 0 offset, 31,6 x 400mm, weight 89g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.36 mm | 1.291 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm |
| Front Center | 681 mm | 714 mm | 748 mm |
| Rake | 53 mm | 52 mm | 53 mm |
| Trail | 86 mm | 87 mm | 86 mm |
| Stack | 595 mm | 605 mm | 613 mm |
| Reach | 415 mm | 445 mm | 475 mm |
| Top Tube Length | 577 mm | 615 mm | 652 mm |
| Seat Tube Angle | 74.7 ° | 74.3 ° | 74 ° |
| Seat Tube Length | 400 mm | 438 mm | 484 mm |
| Head Tube Angle | 69.2 ° | 69.2 ° | 69.2 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1114 mm | 1147 mm | 1181 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

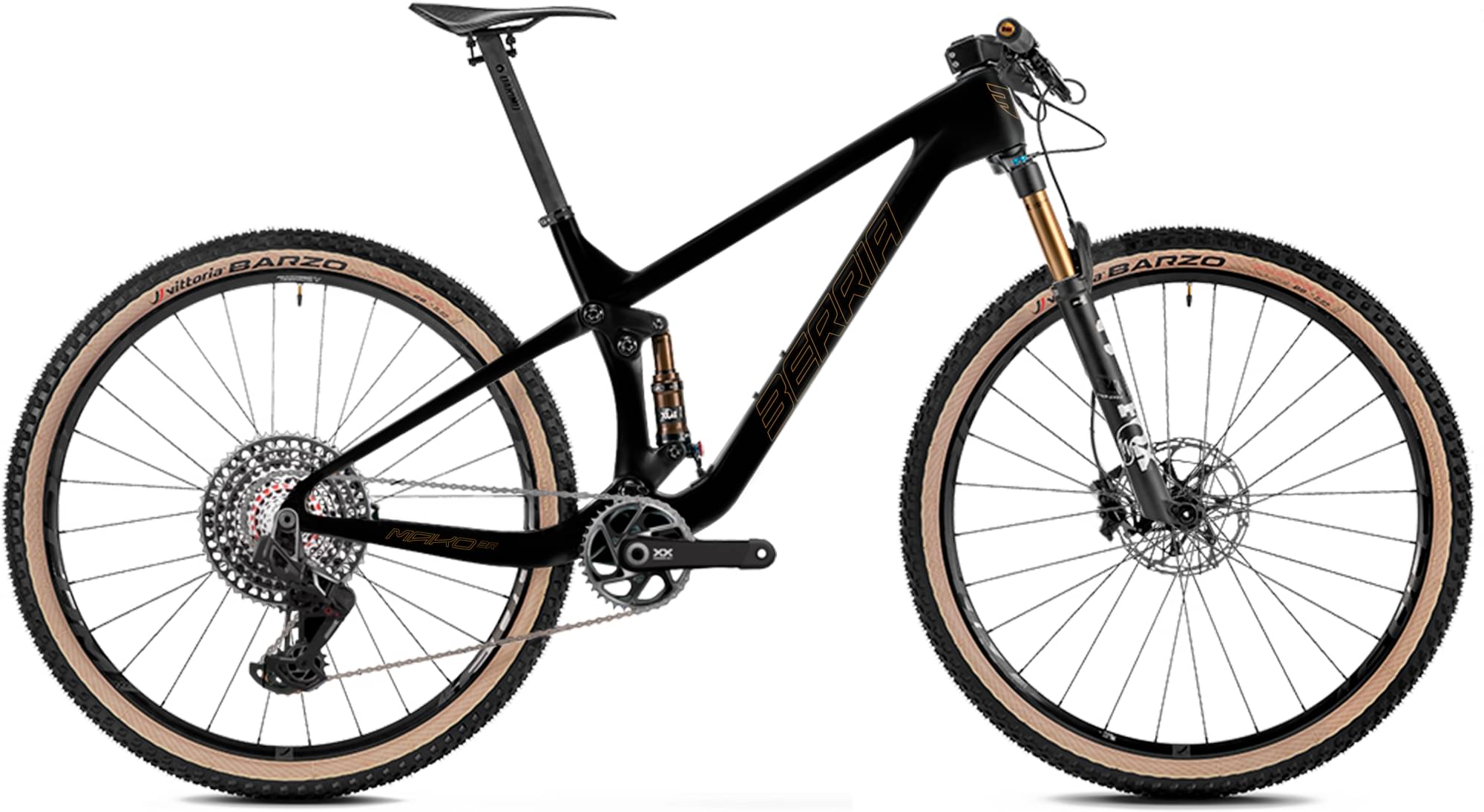

MAKO BR LTD AV24 is a Berria Mako model. Berria released 64 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Berria MAKO 4 2022 has a starting price of 3503$. Berria MAKO BR LTD 2022 on the other hand is the most expensive at 9343$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
MAKO BR LTD AV24 components
Fork
The MAKO BR LTD AV24 comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 110mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is FOX FACTORY FLOAT DPS BERRIA MAKO 3 WC XCO Tuning, with a travel distance of 105mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Berria MAKO BR LTD AV24 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MAKO BR LTD AV24 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
