Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Fork DT Swiss F 535 ONE
-
Groupset GX Eagle -
Suspension Full -
Motor Bafang 250W 60Nm mid-drive -
Battery PORTAPOWER 720Wh 36V 20Ah, Cells SAMSUNG INR21700-50E, 3960g -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mako Hybrid HP, Sport or Touring adjustable Geometry BGC with Flip Chip System, Kinematic SPORT E-mtb 148mm, Aluminum tubes 3BS 6061 Hydroformed and aluminum parts with Technology PCP Precision Casting Process, Full internal cable system ICS2, Headset integrated OH2S 1-1/2" - 1-1.8", Post mounted system PMS brake, 29x2.60 maximun tyre, Thru axle Boost 12x148mm, weight 3100g
Suspension Fork
DT SWISS R535, 15X110 mm, TAPPERED, RAKE 51mm, 35 mm straight wall STEEL Fast Black, weight 2090g, travel 150 mm
Rear Shock
DT SWISS R 535 ONE, Trunnion Mount, 205 X 60mm Travel 148mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12 Speed
Cassette
SRAM XG1275, 10-52T
Crank
Bafang, aluminum, 34T, 165-170 mm
Chain
SRAM GX Eagle CN-EAGL-GX-A1
Wheels
Rims
FULCRUM E-METAL 700, alloy, TLR, 30mm internal width 2470g - 28(front) 28 (rear), Straight Pull Spokes 2,2-2 mm
Tires
FRONT Vittoria Agarro 2.6"X 29", Tubeless ready, GRAPHENE 2.0, 120 TPI, weight 970g / REAR Vittoria Barzo 2.6"X 29", Tubeless ready, GRAPHENE 2.0, 120 TPI, weight 820g
Brakes
Brakes
SRAM DB8, 4 pistons, mineral oil, Disc 200/F 180/R
Brake Levers
SRAM GX Eagle Trigger
Cockpit
Stem
Avanforce ICS2 MTB, 0°, Ø31,8, 60-80mm
Handlebar
Avanforce 2, 31,8mm, wide 780mm
Seat
Saddle
ESSAX ERA, Steel rod, wide 145mm, length 250mm, weight 280g
Seatpost
TRANZX JD-YSPJL Aluminum 7075-T6, 0° offset, 31,6 x 421mm, 125mm travel
Motor & Battery
Motor
BAFANG M-SERIES 500, Nominal performances 250W - 60Nm, Peak performances 500W - 95 Nm, Q factor 177mm, weight 3370g
Battery
PORTAPOWER 720Wh 36V 20Ah, Cells SAMSUNG INR21700-50E, 3960g
Charger
Porta Power charger 220-240V 3A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.34 mm | 1.27 mm |
| Front Center | 766 mm | 798 mm | 830 mm |
| Rake | 42 mm | 41 mm | 42 mm |
| Trail | 114 mm | 115 mm | 114 mm |
| Stack | 624 mm | 628 mm | 632 mm |
| Reach | 440 mm | 470 mm | 499 mm |
| Top Tube Length | 564 mm | 596 mm | 627 mm |
| Seat Tube Angle | 78.3 ° | 77.8 ° | 77.4 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 65.4 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1207 mm | 1239 mm | 1271 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

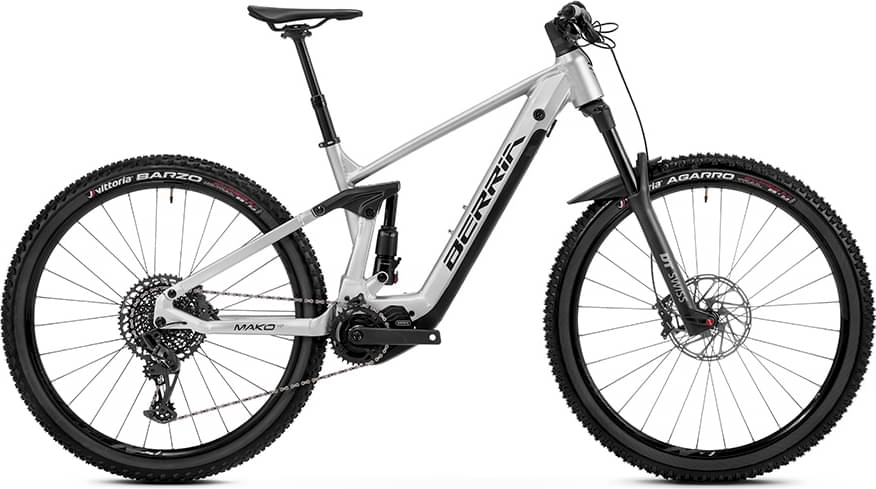

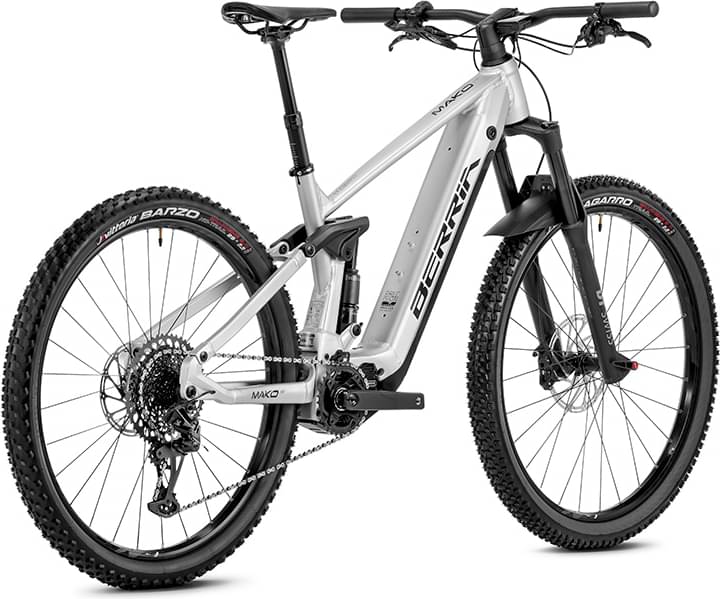

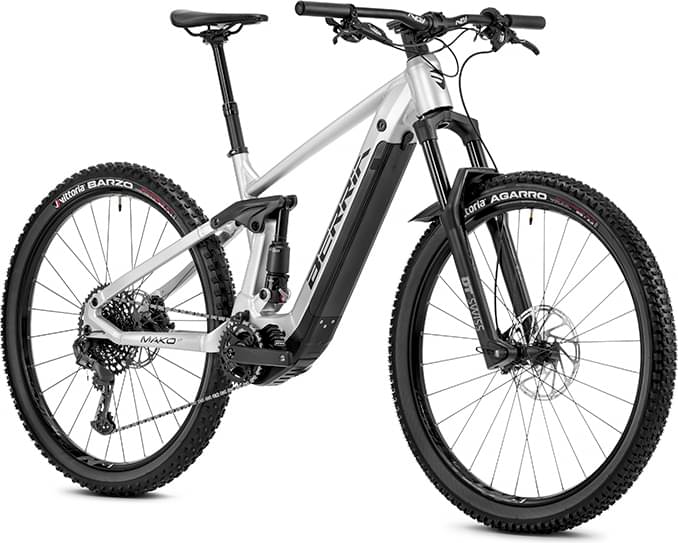

MAKO HYBRID HP 8 is a Berria E Mako model. There are 36 e-bikes that carry this model name. Take a sneak peek at all Berria E Mako e-bikes models from 2023, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The fork installed on this bike is the DT Swiss F 535 ONE model. The travel on this model is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
MAKO HYBRID HP 8 has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
As for the wheels, Berria MAKO HYBRID HP 8 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MAKO HYBRID HP 8 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Berria MAKO HYBRID HP 8 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
